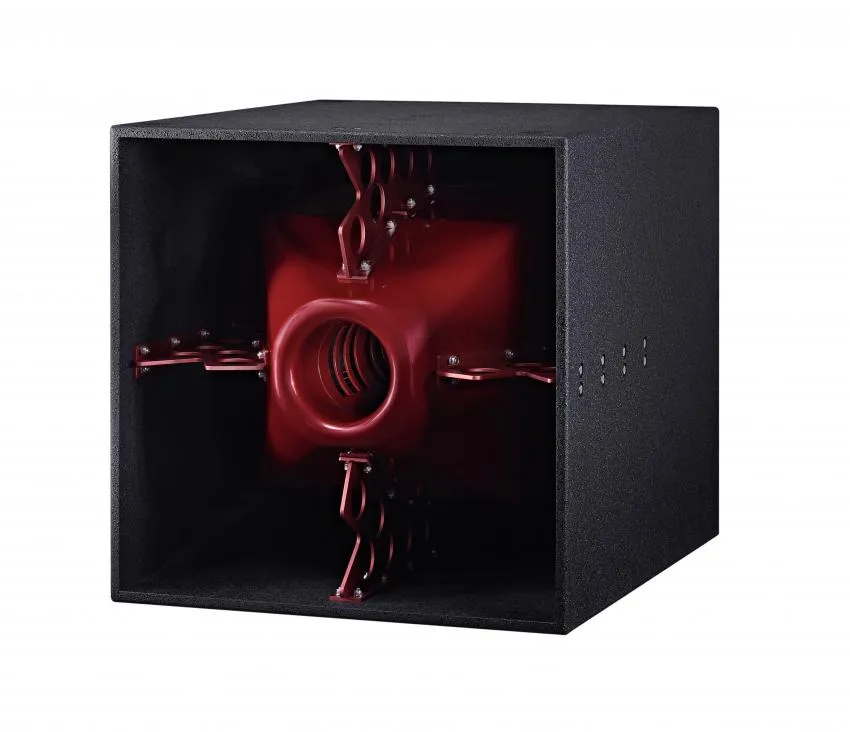

Void Nexus Q

The Nexus Q delivers unparalleled upper bass frequencies via its enhanced enclosure design. Four 12" transducers use a front-loaded horn to achieve high efficiency and a rear port with a newly developed ‘pressure gradient’ arrangement.

The Improved configuration results in an enclosure with unmatched output and definition, alongside elimination of any colouration from turbulent or mechanical port noise. The Nexus Q is well-suited to high-impact nightclubs, concerts and festivals.

Four high power 12” transducers
Front loaded horn
High efficiency
Newly developed ‘pressure gradient’ arrangement

Frequency Response: 60 Hz - 150 Hz ±3dB
Efficiency1: 110 dB 1W/1m
Crossover Points: 70 Hz
Nominal Impedance: 2 x4 Ω
Power Handling2: 2 x 2000 W AES
Maximum Output3: 145 dB cont, 151 dB peak
Driver Configuration: 4 x 12”
Dispersion: Array dependant
Connectors: 2 x 4-pole SpeakON™
Weight: 130 kg (286.6 lbs)
1 Measured in half space 2 AES2 - 1984 compliant 3 Calculated
