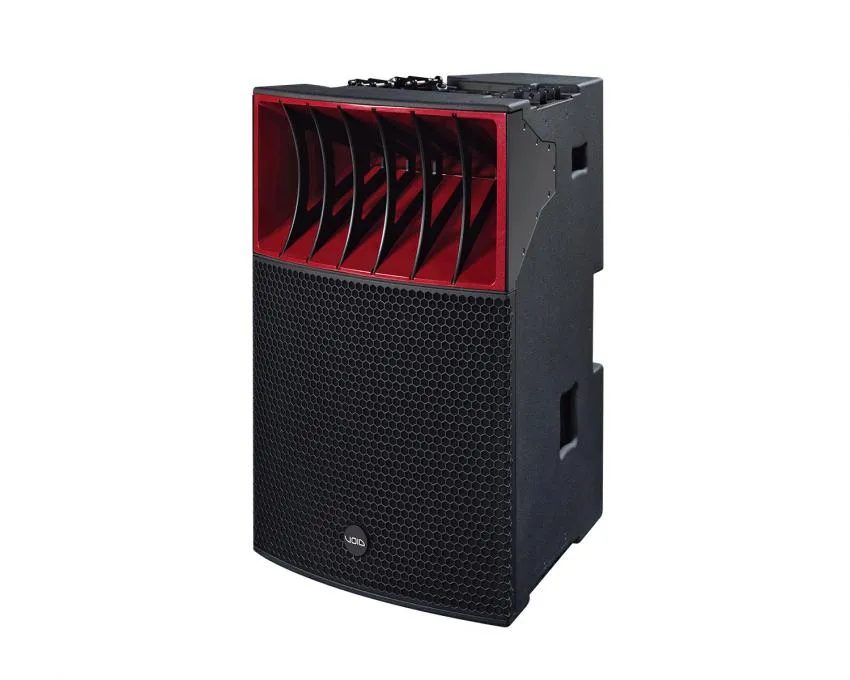

Void Arclite

Two-way Active, Three-Way Arrayable Point Source

Arrayable Point Source

Designed for pairing with Arcline 218 and 118 subwoofers, Arclite operates as a two-way active, three-way arrayable point source loudspeaker. A true point source alternative to the Arcline 8, offering scalability with maximum output and coherence.

Predictable and Reliable Behaviour

Tailored for audio integrators and sound engineers with a focus on touring. Guaranteeing predictable behaviour in the most challenging applications. An arrays dispersion and sound pressure levels can be configured precisely to best serve any demands.

Key Features

Two-way active, three-way arrayable point source
Ground stack or flying configurations available
Asymmetrical combination waveguide and horn optimised with FEA
• Dual NL4 speakON™ connector with link out for quick and easy set up
Arrayable in vertical and horizontal configurations
Blanking plate for use without rigging

Frequency response: 45 Hz - 18 kHz ±3 dB
Efficiency1: MHF: 113 dB 1 W / 1 m LF: 98 dB 1 W / 1 m
Nominal impedance: LF: 8 Ω, MHF: 16 Ω
Power handling2: LF: 1000 W, MHF 190 W
Maximum output3: 133 dB Cont, 139 Peak
Driver configuration: 1 x 15” LF, 1 x 4” MF, 1 x 2.5” HF
Dispersion: 35° H x 60° V (25° up - 35° down)
Connectors: 2 x 4-pole speakON™ NL4
Weight: 44 kg
Enclosure: 15 mm birch plywood
Mounting: Ground stack or suspended
Finish: Textured ‘TourCoat’ polyurea
1 Measured in half space 2 AES2 - 1984 compliant 3 Calculated
