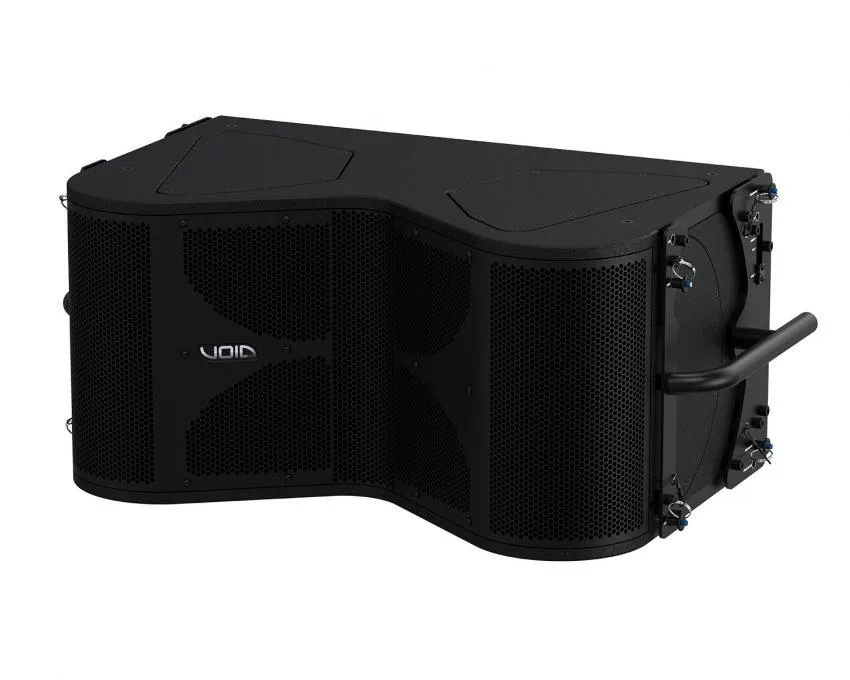

Void Arcline 212

Specially designed to extend the low frequency range of the Arcline line array, the Arcline 212 features two 12” 900 W low frequency drivers. This makes it possible to extend the frequency response range to as low as 55 Hz, while also reaching up to 120 Hz.

For ease, the Arcline 212 is flyable with the Arcline 8. It can be used in any application where suspended bass is required, including large venues and medium to large scale touring. Two Neutrik speakON™ NL4 connectors provide input and link through connections. Its lightweight birch plywood enclosure is finished in a textured TourCoat polyurea finish, bringing longevity for life on the road.

Product Features
Extended frequency range from 55 Hz to 120 Hz
Flyable with Arcline 8
Cardioid configuration integrated in the rigging
FEA optimised porting
Applications
Large venues
Indoor and outdoor events
Medium to large-scale touring
Live music venues

Product Specifications
General
Frequency response:  55 Hz - 120 Hz
Efficiency:  99 dB 1W/1m
Nominal impedance:  2 x 8 Ω
Power handling:  2 x 900 W AES
Maximum output:  132 dB cont, 138 dB peak
Driver configuration:  2 x 12” low frequency drivers
Dispersion:  Array dependant
Connectors:  2 x 4-pole speakON™ NL4
Physical
Dimensions:  (H) 367 mm x (W) 877.5 mm x (D) 470 mm
Weight:  42 kg (92.6 lbs)
Enclosure:  15 mm multi-laminate plywood
Rigging:  A2 stainless steel rigging for use with Arcline 8 when flown or ground stacked
Finish:  Textured TourCoat polyurea
Grille:  Perforated steel with foam filler
Colour:  Black
