Universal Audio Volt 2 Max

Universal Audio Volt 2 Max – USB Audio Interface

Universal Audio Volt 2 Max is an advanced 10-in/4-out USB audio interface for producers, musicians, and content creators. It combines 32-bit/192 kHz audio conversion, dual Tone Shaping Preamps, Max Compression, a full-color Smart Display, Auto-Gain, Clip Protection, ADAT expansion, dual headphone outputs, and a built-inTalkback microphone in a compact desktop format.

Key Features

10 in / 4 out
Dual Tone Shaping Preamps with Warmth, Focus, and Shine modes
Harmonic Saturation and Max Compression
Six Max compression presets for vocals, guitar, and bass
32-bit/192 kHz A/D and D/A audio conversion
Full-color Smart Display for metering, gain reduction, and system settings
Auto-Gain for automatic recording level adjustment
Clip Protection to protect against unexpected digital clipping
ADAT optical input for up to 8 additional channels
S/PDIF optical input for 2 channels
2 x Mic/Line/Instrument inputs via XLR/TRS combo connectors
60 dB digitally controlled gain and +48V phantom power per channel
2 x 1/4" TS Hi-Z instrument inputs via combo jacks
2 x 1/4" TRS line inputs via combo jacks
Built-in Talkback microphone
2 x stereo headphone outputs
Built-in Loopback for streaming and podcasting
MIDI I/O
Built-in USB hub for peripherals
USB 2.0 Host port with USB-C
USB bus-powered
Rear-panel On/Off switch
Compact desktop form factor
Class-compliant operation for Mac, Windows, iPad, and iPhone
Supports all major DAWs

Tone Shaping and Max Compression

The dual Tone Shaping Preamps feature three selectable modes: Warmth, Focus, andShine. Combined with six Max compression presets, they provide 18 different sonic combinations for shaping recordings directly at the source. Max Compression is modeled on classic LA-2A and 1176 studio compressors and is designed for vocals, acoustic instruments, electric bass, and more.

Smart Display, Auto-Gain and Clip Protection

The full-color Smart Display provides immediate visual information about input levels, gain reduction, and system settings. Auto-Gain automatically calculates an optimal level, while Clip Protection helps protect recordings against sudden level increases and digitalclipping.

Digital Expansion and Flexible Connectivity

The optical ADAT input allows the system to be expanded with up to eight additionalchannels. ADAT supports 8 channels at 48 kHz, 4 channels at 96 kHz, and 2 channels at192 kHz. The optical input also supports 2-channel S/PDIF. MIDI I/O and the built-in USB hub provide connectivity for external controllers and peripherals.

Talkback, Headphone Outputs and Loopback

The built-in Talkback microphone facilitates control-room communication. Two headphone outputs allow both artist and producer to monitor audio. The Loopback function can combine computer audio with live inputs for streaming and podcast production.

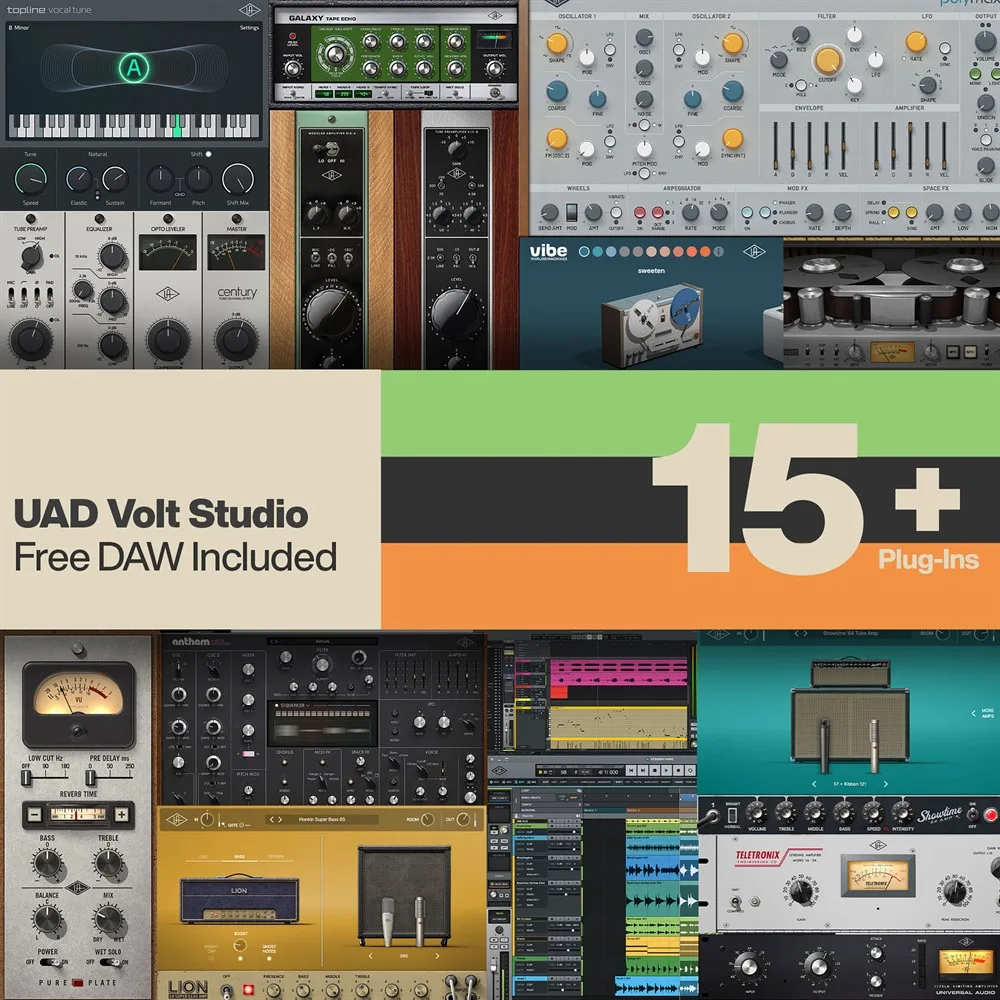

UAD Software and LUNA

Volt 2 Max includes 15+ UAD plug-ins and virtual instruments together with UniversalAudio's LUNA Digital Audio Workstation.

UAD Volt Studio Bundle

LUNA Digital Audio Workstation
Topline Vocal Tune
UA 610 Tube Preamp & EQ Collection
Century Tube Channel Strip
Teletronix LA-2A Tube Compressor
UA 1176 Classic FET Compressor
Pure Plate Reverb
Galaxy Tape Echo
Oxide Tape Recorder
Vibe Analog Machines
PolyMAX Synth
Anthem Analog Synth
UAD Lion ’68 Super Lead Amp
UAD Showtime ’64 Tube Amp

Additional Software

Melodyne Essential by Celemony
Ampeg SVT-VR Classic Bass Bundle by Plugin Alliance
Ampeg SVT-VR Classic, bx_Tuner, and bx_Masterdesk_Classic
Virtual Drummer DEEP by UJAM
Virtual Bassist DANDY by UJAM
Splice INSTRUMENT
Prisma - Producer Lab by UVI
FL Studio Producer Edition, 3 months free

Specifications

Connectivity: USB-C, USB 2.0
Simultaneous I/O: 10 in / 4 out
A/D Conversion: 32-bit/192 kHz
Preamps: 2 x Mic/Line/Instrument, XLR/TRS combo connector, Tone Shaping, HarmonicSaturation, Max Compression, 60 dB digitally controlled gain and switchable +48V phantom power per channel
Instrument Inputs: 2 x 1/4" TS Hi-Z via combo jacks, 116 dB dynamic range
Line Inputs: 2 x 1/4" TRS via combo jacks, 119 dB dynamic range
Digital Inputs: ADAT optical, 8 channels @ 48 kHz, 4 channels @ 96 kHz, 2 channels @ 192 kHz, or S/PDIF optical, 2 channels
Talkback: Built-in microphone
Analog Outputs: 2 x 1/4" TRS balanced monitor outputs, DC coupled, 126 dB dynamic range
Headphone Outputs: 2 x stereo outputs, 1/4" and 1/8" TRS, DC coupled, 45 mW @ 32 Ω, shared cue mix
MIDI I/O: 1/8" TRS Mini-Jack In/Out, MIDI Type A
USB and Hub Expansion: USB 2.0 Host Port, Type-C, 1 x USB hub port for peripherals, 5 V DC @ 0.5 A max, 1 x USB external power input port, 5 V DC @ 1 A min
Power: USB bus-powered, 4.1 W typical, 5.7 W maximum, with rear-panel On/Off switch
Digital I/O: ADAT or S/PDIF In
Form Factor: Compact desktop
Compatibility: macOS 12+, Windows 10 (64-bit)+, iOS/iPadOS 16+
DAW Compatibility: Supports all major DAWs
