Universal Audio Volt 2 Gen 2

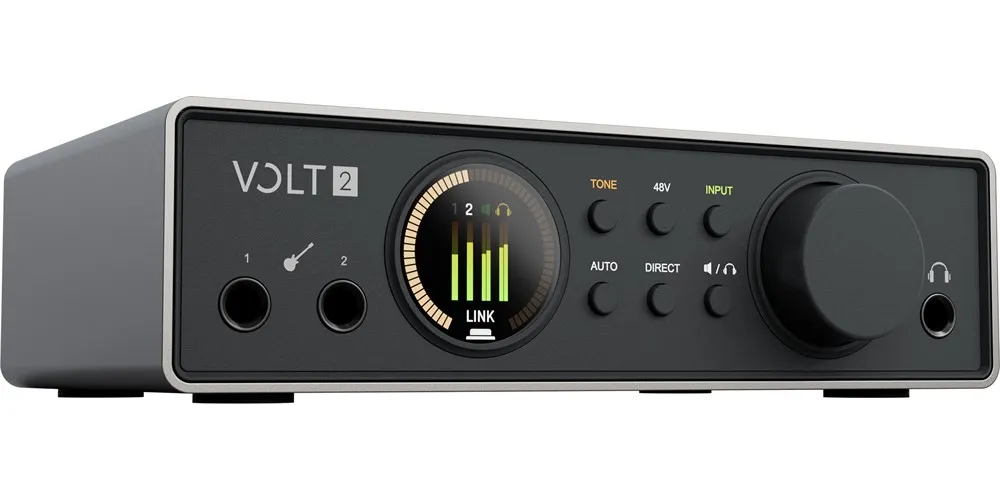

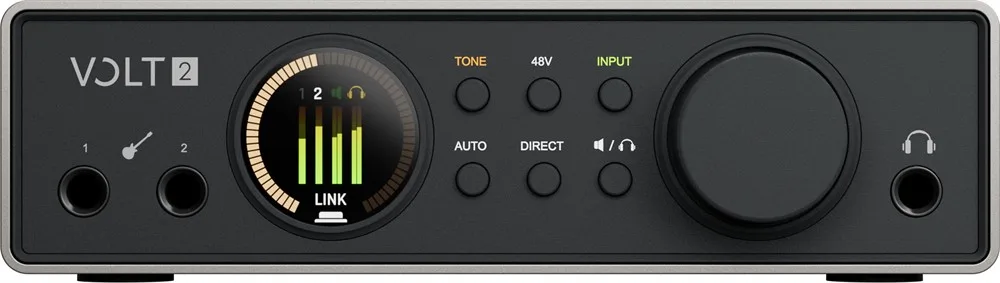

Universal Audio Volt 2 Gen 2 – USB Audio Interface

Universal Audio Volt 2 Gen 2 is a compact 2-in/4-out USB audio interface for musicians, producers, podcasters, and content creators. With 32-bit/192 kHz audio conversion, dual Tone Shaping Preamps, a full-color Smart Display, Auto-Gain, and Clip Protection, it combines professional audio quality with intuitive control in a portable format.

Key Features

Dual Tone Shaping Preamps with Warmth, Focus, and Shine modes
32-bit/192 kHz A/D and D/A audio conversion
2 in / 4 out
Full-color Smart Display for visual metering and status information
Auto-Gain for automatic recording level adjustment
Clip Protection to protect recordings against unexpected digital distortion
2 x Mic/Line/Instrument inputs via XLR/TRS combo connectors
60 dB gain and +48V phantom power per channel
2 x 1/4" TS Hi-Z instrument inputs via combo jacks
2 x 1/4" TRS line inputs via combo jacks
Built-in Loopback for podcasts, livestreaming, and video production
USB bus-powered for mobile use without an external power adapter
1 x 1/4" TRS stereo headphone output
2 x balanced 1/4" TRS monitor outputs
USB 2.0 with USB-C connection
Compact desktop form factor
Class-compliant operation for Mac, Windows, iPad, and iPhone
Supports all major DAWs

Tone Shaping and Audio Quality

The dual Tone Shaping Preamps feature three selectable modes: Warmth, Focus, and Shine. They allow analog character to be added to vocals, synthesizers, and instruments. The 32-bit/192 kHz conversion provides detailed audio for both recordingand playback.

Smart Display, Auto-Gain and Clip Protection

The full-color Smart Display provides immediate visual information about inputs, levels, and system status. Auto-Gain detects peak levels and automatically sets optimal gain, while Clip Protection helps prevent sudden level increases from ruining a recording.

Recording and Loopback

The two XLR/TRS combo inputs allow two microphones, guitars, or stereo sources to berecorded simultaneously. The dedicated Hi-Z inputs can be used for instruments. Loopback combines microphone inputs with computer audio for podcasts, livestreams, and video production.

UAD Software and LUNA

Volt 2 Gen 2 includes a selection of UAD plug-ins and instruments together with Universal Audio's LUNA Digital Audio Workstation.

UAD Volt Studio Bundle

LUNA Digital Audio Workstation
Topline Vocal Tune
UA 610 Tube Preamp & EQ Collection
Century Tube Channel Strip
Teletronix LA-2A Tube Compressor
UA 1176 Classic FET Compressor
Pure Plate Reverb
Galaxy Tape Echo
Oxide Tape Recorder
Vibe Analog Machines
PolyMAX Synth
Anthem Analog Synth
UAD Lion ’68 Super Lead Amp
UAD Showtime ’64 Tube Amp

Additional Software

Melodyne Essential by Celemony
Ampeg SVT-VR Classic Bass Bundle by Plugin Alliance
Ampeg SVT-VR Classic, bx_Tuner, and bx_Masterdesk_Classic
Virtual Drummer DEEP by UJAM
Virtual Bassist DANDY by UJAM
Splice INSTRUMENT
Prisma - Producer Lab by UVI
FL Studio Producer Edition, 3 months free

Specifications

Connectivity: USB-C, USB 2.0
Power: USB bus-powered, 3.4 W typical, with dedicated 5 V DC power input
Simultaneous I/O: 2 in / 4 out
A/D Conversion: 32-bit/192 kHz
Preamps: 2 x Mic/Line/Instrument, XLR/TRS combo connector, Tone Shaping, 60 dBgain and switchable +48V phantom power per channel
Instrument Inputs: 2 x 1/4" TS Hi-Z via combo jacks, 116 dB dynamic range
Line Inputs: 2 x 1/4" TRS via combo jacks, 119 dB dynamic range
Analog Outputs: 2 x 1/4" TRS balanced monitor outputs, DC coupled, 126 dB dynamic range
Headphone Output: 1 x 1/4" TRS stereo, DC coupled, 45 mW @ 32 Ω
Digital I/O: No
Form Factor: Compact desktop
Compatibility: macOS 12+, Windows 10 (64-bit)+, iOS/iPadOS 16+
DAW Compatibility: Supports all major DAWs
