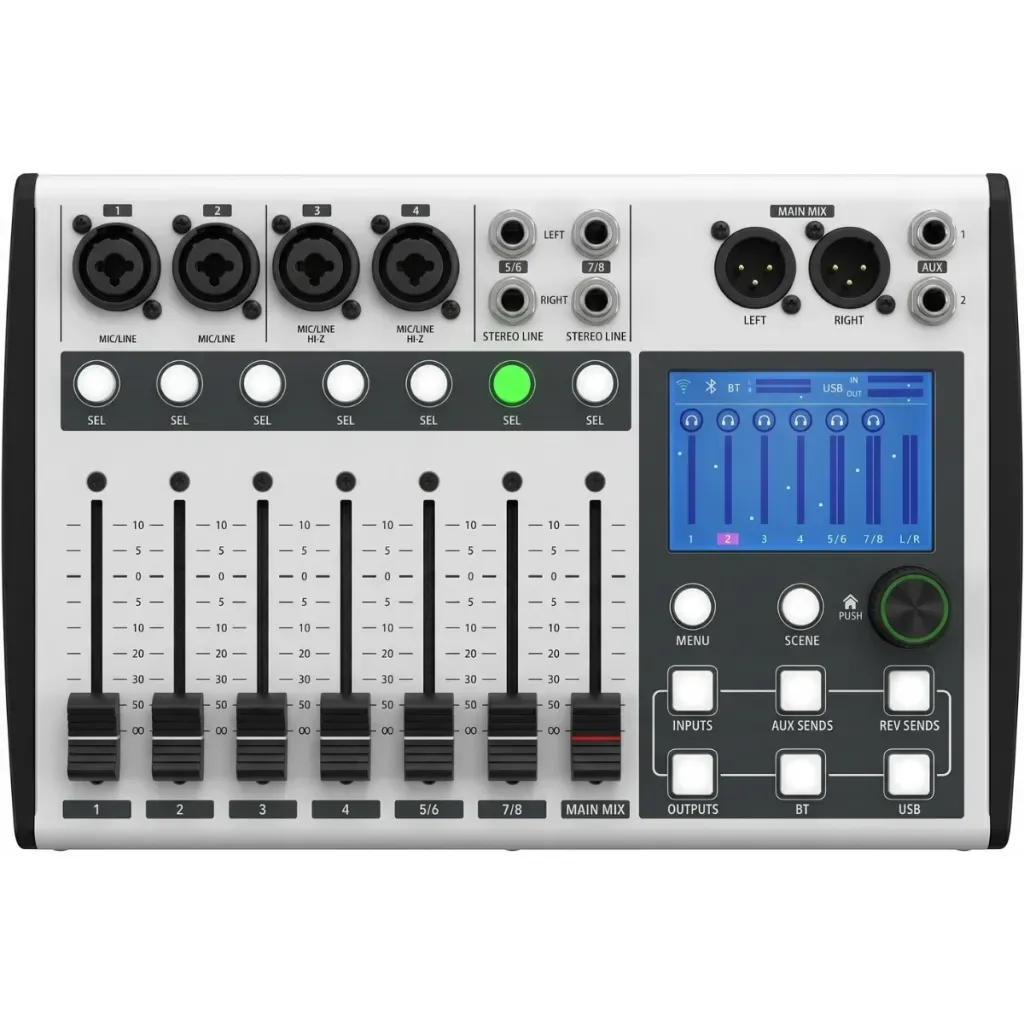

Thornton DM08X Digital Mixer

Thornton DM08X – Digital Mixer with USB Audio Interface

The Thornton DM08X is a compact digital mixer featuring an integrated USB audio interface, digital signal processing (DSP) and built-in effects. It is suitable for live sound, streaming, podcasting, karaoke, home recording, teaching and presentations. The 3.5-inch touchscreen, physical faders and intuitive buttons provide convenient control over audio levels and settings.

Features and Functions

8 mixer channels for microphones, instruments and line-level equipment
4 XLR microphone inputs
6 jack line inputs
2 Hi-Z inputs for direct guitar or bass connection
2 stereo jack inputs
3.5-inch touchscreen, physical faders and intuitive buttons
4-band EQ on channels and 4-band EQ on the master output
Built-in compressor and digital effects
Digital signal processing (DSP) with EQ, dynamics processing and internal signal routing
+48 V phantom power for condenser microphones
Integrated USB audio interface with 24-bit/48 kHz audio resolution
USB-C connectivity to PC or Mac for recording, streaming and audio playback
2 balanced XLR master outputs for active speakers or PA systems
2 AUX sends for monitors or additional audio zones
2 jack headphone outputs
PFL monitoring function
Bluetooth connectivity
Low noise level and wide dynamic range
Compact design for mobile setups and smaller stages
Power supply: 5 V DC / 3 A

Specifications

Type: Digital mixer
Number of channels: 8
Number of faders: 7
Microphone inputs: 4 x XLR
Line inputs: 6 x jack
Hi-Z inputs: 2
Stereo inputs: 2 x jack
Master outputs: 2 x XLR
AUX sends: 2
Headphone outputs: 2 x jack
Channel EQ: 4-band
Master EQ: 4-band
Compressor: Yes
Effects: Yes
Number of effects: 1
Phantom power: Yes, +48 V
USB audio interface: Yes, 24-bit/48 kHz
USB: Yes
Bluetooth: Yes
Ethernet: No
Wi-Fi: No
Included software: No
Rack-mountable: No
Weight including packaging: 2.1 kg
