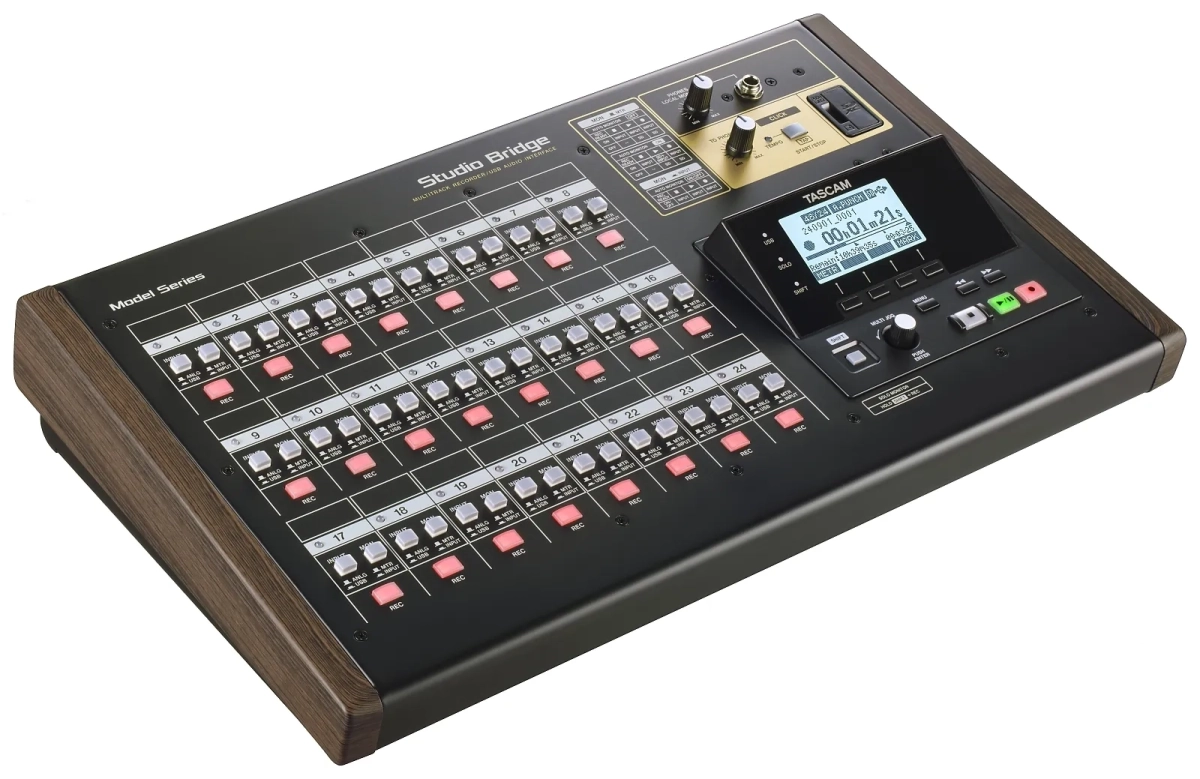

Tascam Studio Bridge

Studio Bridge multitrack recorder is literally the bridge between analogue mixing and digital recording - whether you use a DAW or not. Preserve the rich analogue tone of your mixer while recording tracks with any DAW or with Studio Bridge itself. The tracks can then be fed back to your analogue mixer for summing, turning digital recordings into warm analogue productions.

Whether you're recording in a home studio or in a live environment, Tascam Studio Bridge acts as a link between your existing equipment, complementing it with the latest recording technology and ease of use in a rack-mountable format.

Standalone 24-channel audio recorder with punch-in/out support
Built-in 24-in/24-out USB audio interface
DAW transport and recording control via HUI/MCU
Built-in USB MIDI interface with MIDI in/out connectors

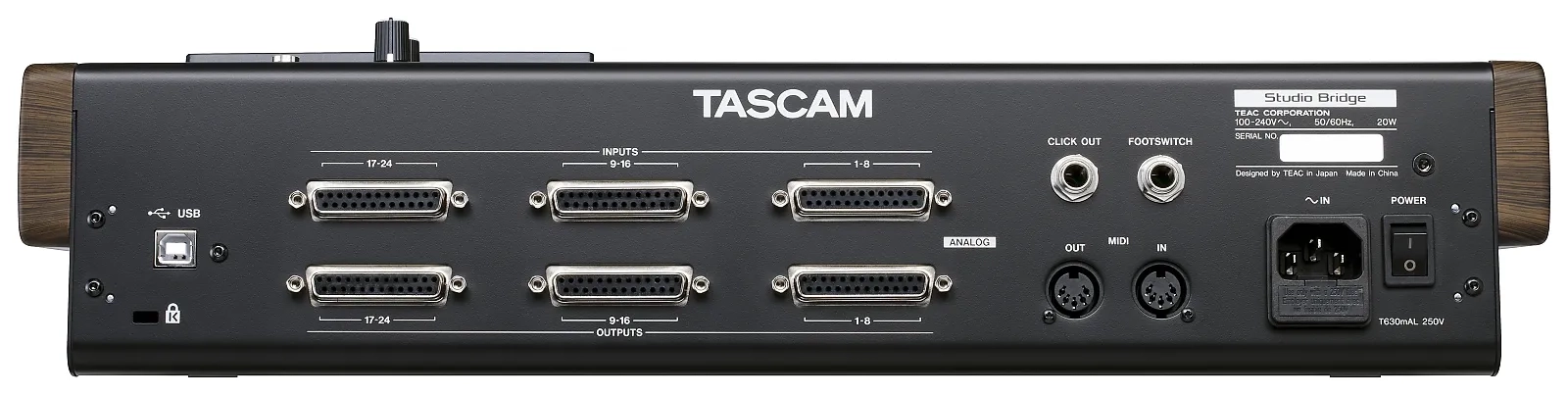

24 analogue line-level audio inputs and outputs via three Tascam D-sub connectors
WAV (BWF) recording format (44.1/48 kHz, 16/24 bit)
Records to SD cards up to 512 gigabytes (SDXC)
Two foot pedal inputs to set MIDI tempo, switch between play and pause and more
19-inch rack mountable (AK-RMSTBG mounting kit sold separately)

24-channel recording without a computer
Connect your analogue mixer to the Studio Bridge and easily record up to 24 channels of audio - no computer required.

You can also record your stereo mix directly to the recorder and export stereo files in WAV format for production-ready results.

24 in/24 out audio/MIDI interface for DAWs
Tascam knows you want true analogue feel in your DAW recordings, and we're here to help. Your analogue mixer can be easily connected to your DAW with Studio Bridge as an audio interface with 24 inputs and outputs.

You can record directly to any DAW and even create a sum mix with your mixer and external equipment through audio returns.

DAW transport control and dedicated Meter Bridge software
Studio Bridge also functions as a DAW transport controller. The Rec/Play/Stop and Rec Ready buttons are directly linked to your DAW for easy operation.

The settings panel, available for Windows and macOS, includes a digital meter bridge so you can keep track of the audio levels for each channel and stereo master.

MIDI synchronisation for your sequencers
With MIDI in/out ports, your favourite drum machines, sequencers, synths and controllers can be easily integrated into any production.

Unlock your creativity with your favourite analogue gear and Studio Bridge.

Specifications
Dimensions: 446.5 x 114.6 x 269.5 mm (W x H x D, including protruding parts)
Weight: 4.5kg
