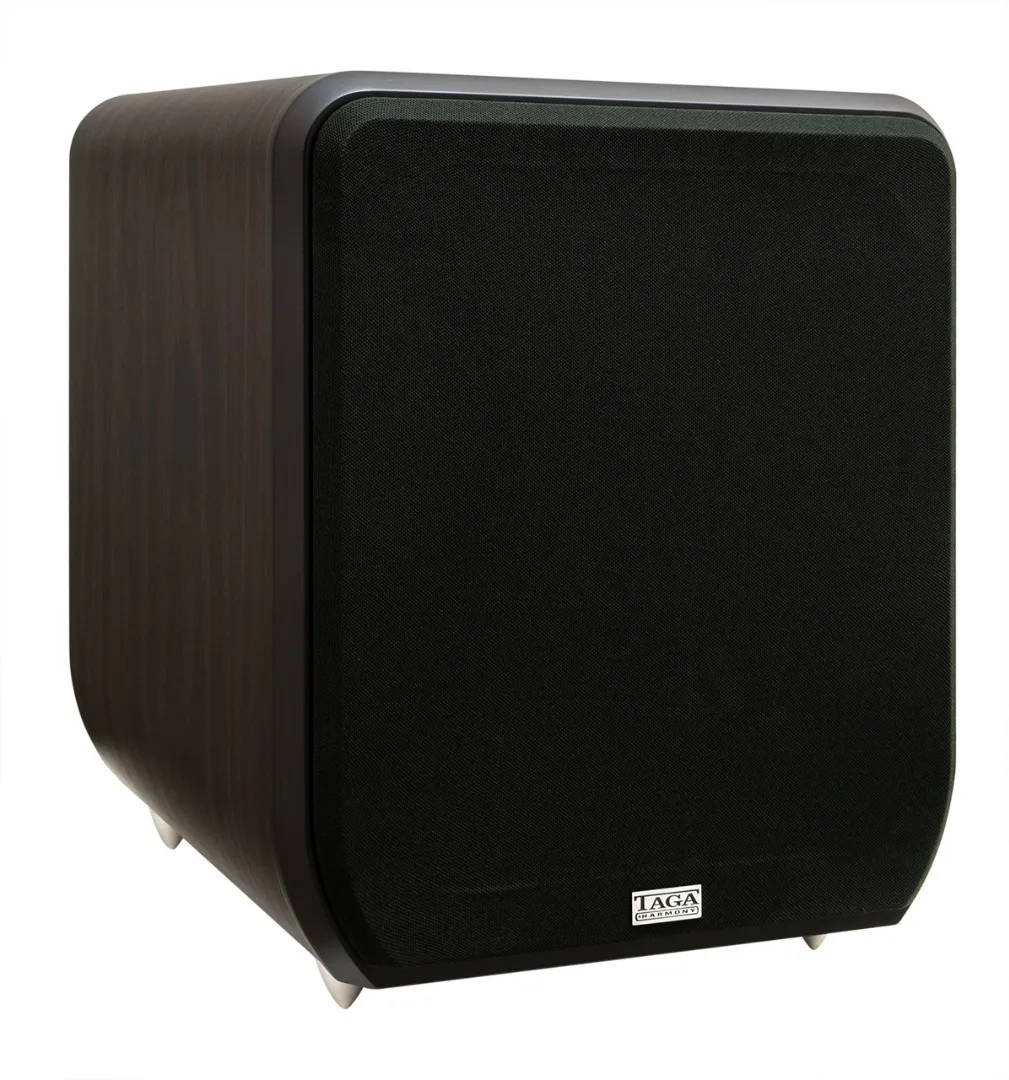

Taga Harmony Platinum SW-10 V3 Modern Wenge

The TAGA Harmony Platinum SW-10 v.3 is an active subwoofer designed to deliver deep and controlled bass performance for both music and home theater systems. As part of the premium Platinum series, it combines refined acoustic engineering with a robust cabinet design developed under the concept “Born in Europe – Crafted for the World”.

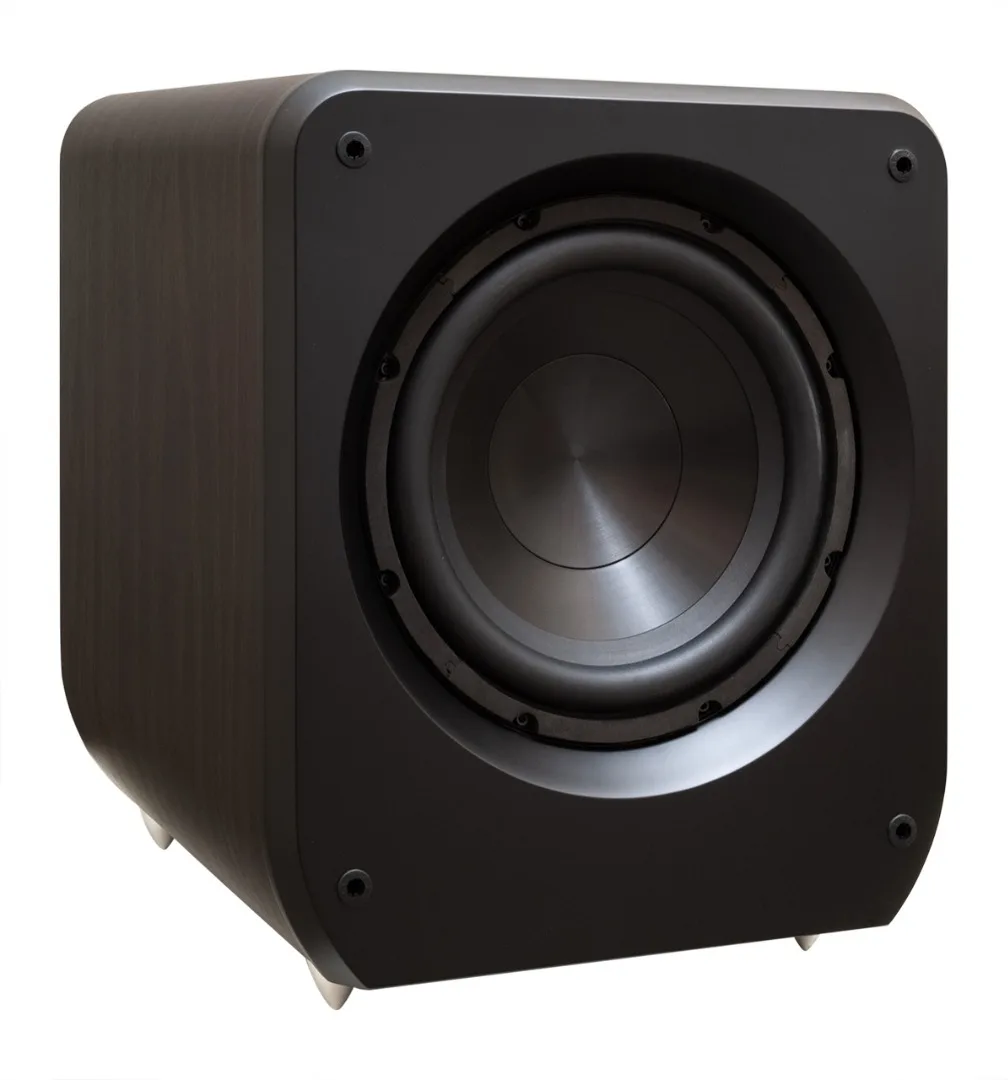

This subwoofer features a redesigned 10-inch bass driver capable of operating at higher amplitude levels with faster response to changes in the audio signal. The improved driver design contributes to powerful low-frequency performance with accurate definition and dynamic impact.

The built-in Class A/B high-current amplifier delivers 240W RMS power and up to 750W dynamic peak output. Upgraded amplifier and power boards with higher grade components provide improved efficiency, reduced distortion, and stable performance even at high listening levels. An integrated clipping limiter helps maintain safe and consistent operation.

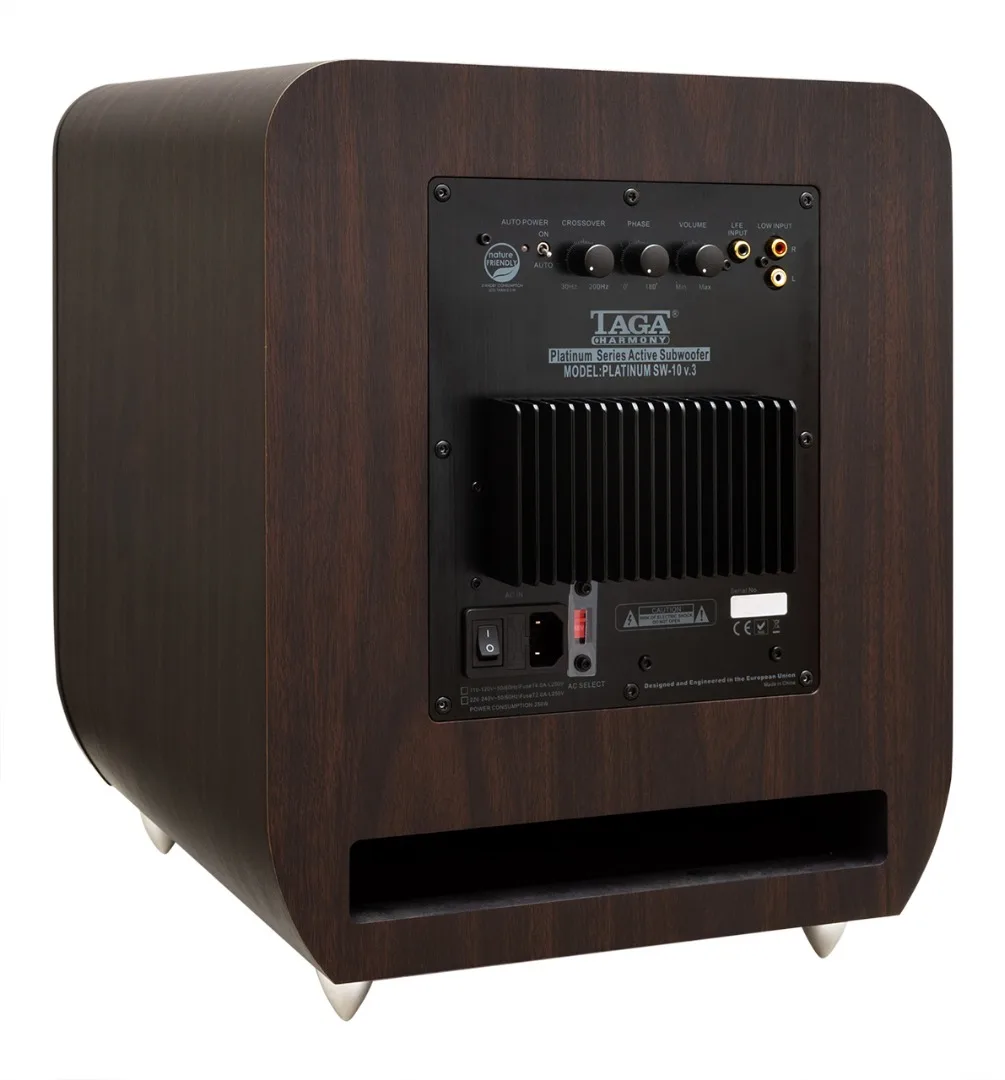

The TLIE cabinet structure has been redesigned with increased stiffness and internal volume to further enhance bass performance. A rear slotted bass reflex port and acoustical labyrinth improve airflow and low-frequency dispersion while minimizing turbulence.

Features
10-Inch Polypropylene Bass Driver
Built-In 240W RMS Class A/B Amplifier
Rear Slotted Bass Reflex Port With Acoustical Labyrinth
Variable Crossover Frequency Control
Variable Phase Control
Auto On / Off Function
Removable IEC Power Cord

In The Box
Y-Type RCA-RCA Subwoofer Cable
Removable IEC Power Cord

Specifications
Design: Active Subwoofer, 1 Driver
Enclosure Type: TLIE
Amplifier Power: 240W RMS
Dynamic Peak Power: 750W
Amplifier Type: Class A/B, THCA
Frequency Response: 20Hz – 200Hz
Bass Reflex: Rear Single Slotted
Bass Driver: 255 mm (10") Polypropylene
Driver Impedance: 4 Ohm
Crossover Filter Frequency: 30Hz – 200Hz (Variable)
Phase Regulation: 0 – 180° (Variable)
Inputs: 1 × Low Input (L/R), 1 × SUB (LFE)
AC Power: 220–240V (Selectable 110–120V) 50/60Hz
Power Consumption: 250W
Standby Consumption: <0.5W

Dimensions & Weight
Dimensions: 43 × 35 × 41 cm
Weight: 23.6 kg
