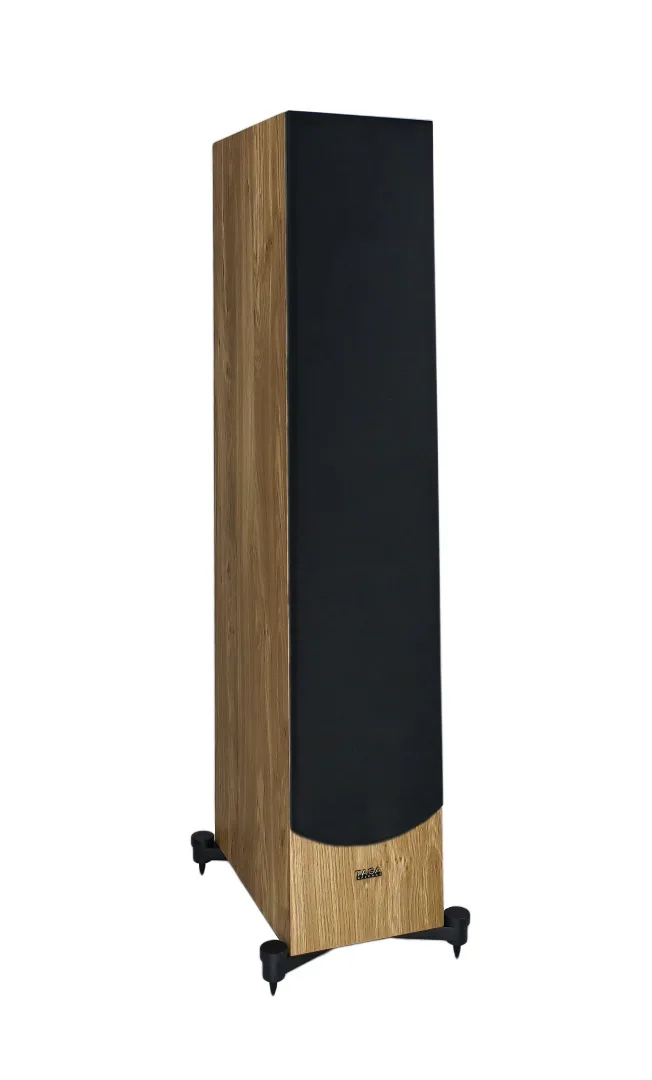

Taga Harmony Platinum F-120 V4 Oak

Platinum F-120 V4 – Floorstanding Speaker

Platinum F-120 V4 is a 3-way floorstanding speaker with 5 drivers and a TLIE-II cabinet, developed with upgraded components and a modern, elegant enclosure. The speaker is designed to deliver deep and controlled bass, a rich and natural midrange, and detailed, crystal-clear high frequencies with an open and airy soundstage.

Construction and sound technology

TLIE-II cabinet with a stiffer construction and thicker MDF panels to reduce unwanted resonances
21 mm thick front baffle and 15 mm thick remaining cabinet walls
Reinforced internal bracing and two transverse MDF supports to further reduce vibrations
Rear-angled front panel for time alignment of the drivers and reduced turbulence and resonances
Magnetically mounted front grille for a clean appearance and reduced distortion whenremoved
High-quality internal damping material to break up standing waves and improve sound consistency across the frequency range
Cast aluminium feet and spikes for effective floor isolation, improved transparency, bass definition and control
Durable vinyl finish designed to resemble natural wood
BOM Bassreflex Omnidirectional Module with dual rear ports featuring low turbulence and high airflow velocity
Concave diffusers for improved low-frequency dispersion and deeper, more controlledbass
TPTTD-I tweeter with a lightweight titanium dome and copper ring on the T-yoke for wider dynamic range, lower distortion and more precise movement
TWG-I waveguide front plate for optimized dispersion and a more three-dimensionalsoundstage
TPACD-II aluminium cone drivers and TRCS suspension for fast response, highdynamics and precise bass reproduction
Crossover developed by Arek Ogrodnik using a minimal number of carefully selected components for high precision, neutral sound reproduction and high power handling
Multistrand oxygen-free copper internal wiring for loss-free signal transfer from theamplifier to the drivers
Gold-plated speaker terminals accepting cables up to 10AWG and most commonconnectors

Specifications

Design: Floorstanding speaker
Construction: 3-way, 5 drivers
Cabinet: TLIE-II
Crossover frequencies: 650 Hz, 3.7 kHz
Recommended amplifier power: 20–280 W
Power handling: 210 W RMS
Frequency response: 28 Hz–40 kHz
Bass reflex: Dual rear port
Impedance: 4 ohms
Sensitivity: 93 dB
Tweeter: 25 mm (1") TPTTD-I, TWG-I
Midrange: 165 mm (6.5") TPACD-II, TRCS
Woofer: 3 × 165 mm (6.5") TPACD-II, TRCS
Accessories: Magnetically mounted grille, aluminium feet and spikes
Dimensions (H × W × D): 110 × 22 × 38 cm
Weight: 26.1 kg per speaker
