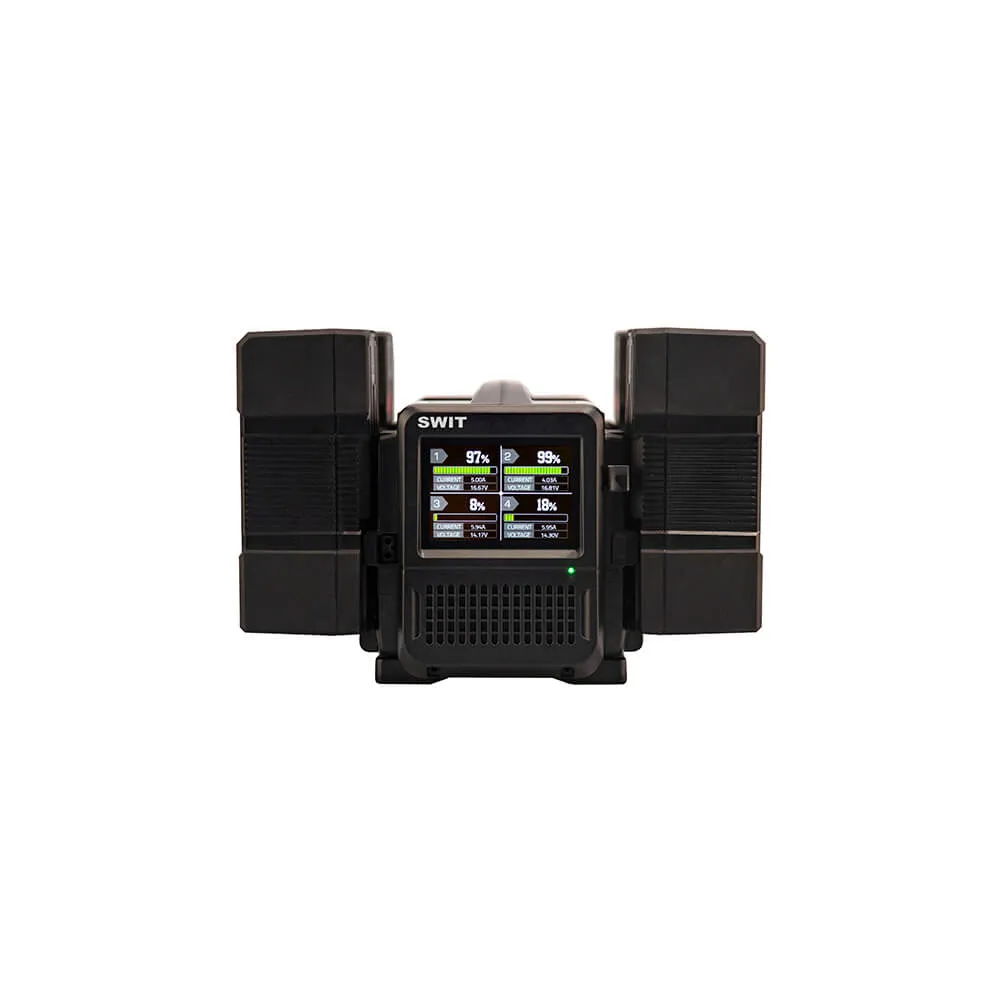

Swit PC-P461S 4x100W Super Fast V-Mount Charger

4-ch simultaneous fast charging
100W/6A for SWIT 14.4V & ≥160Wh batteies
100W/3A for SWIT 28.8V & ≥160Wh batteies
50W/3A for other batteies
3.5-inch color LCD info display
PC-P461S can charge 4 V-mount batteries simultaneously, support both 14.4V and 28.8V nominal voltage batteries. Super fast charging 100W/6A for 14.4V batteries, and 100W/3A for 28.8V batteries, save up to 60% charging time comparing to normal chargers.

SWIT ≥160Wh batteries support 100W fast charging, for less capacity or other brand batteries, the charging current will limit to 50W/3A.

PC-P461S provides a 3.5-inch color LCD panel to display charging progress, charging current and voltage. For batteries with SMBUS info, it will display real time capacity and battery cycle times as well.

Besides LCD screen info, you can check the charging status at a glance by the 4 large size indicators on the top of the charger. Red on: 0-80%, Green flashing: 81%-99%, Green on: 100% fully charged and Red flashing: Charging error, check LCD info.

The 4 channel fast charger PC-P461S has minimized the size and weight, and the new handle design makes the charger solid and easy to carry.

Specifications
Power: Max 450W
Input: AC100V-240V 50/60Hz
Output:
DC 16.8V, 6Ax4 (SWIT 14.4V & ≥160Wh batteries)
DC 33.6V, 3A×4 (SWIT 28.8V & ≥160Wh batteries)
DC 16.8V, 3A×4 (Other batteries)
Applicable battery: V-mount battery
Dimensions: 330×153×162mm
Net weight: Net 2.43kg
