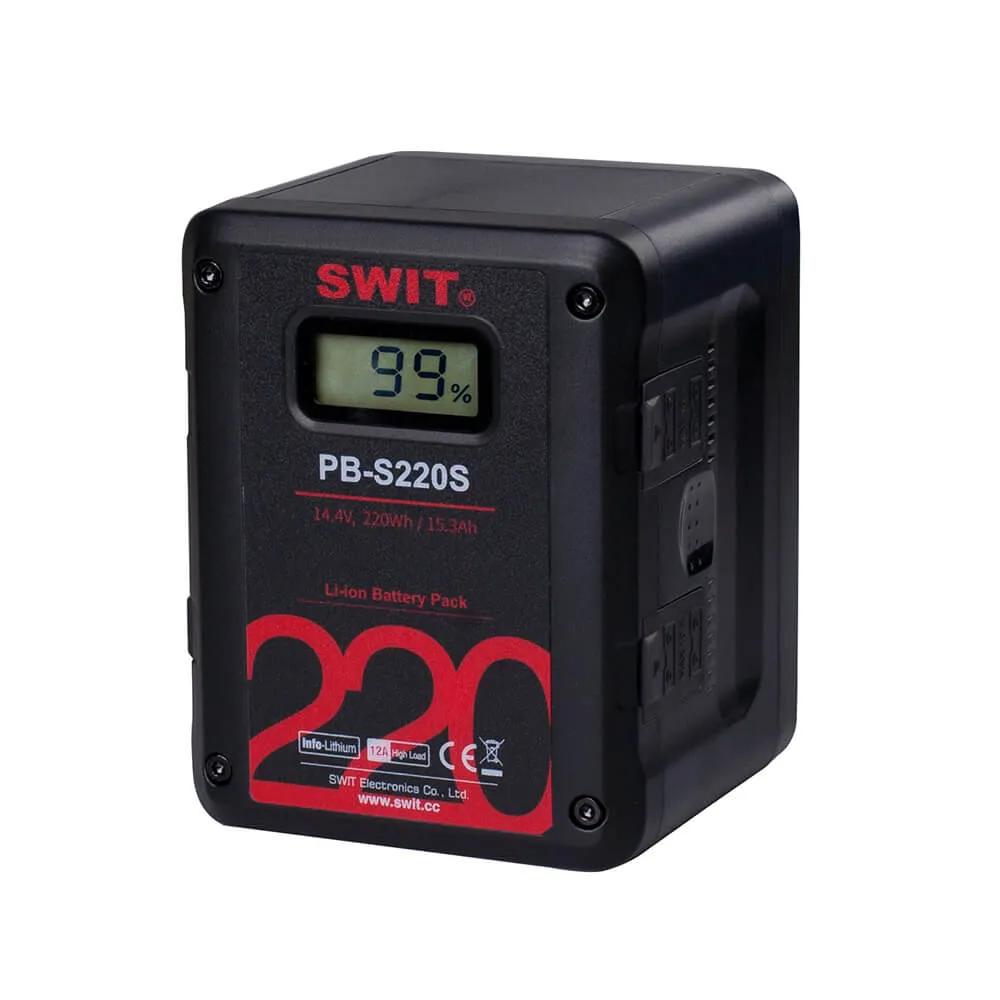

Swit PB-S220S 220Wh V-lock Cine

The SWIT PB-S220S 14.4V 220Wh Multi D-Tap Heavy-Duty Digital Battery, featuring a V-mount, has a short, square-shaped design and provides up to 150W/12A continuous output. This makes it suitable for up to the most demanding cine-cameras along with monitors and other accessories. With 220 watt hours, the PB-S220S delivers approximately 2.5 hours of power to the ARRI ALEXA and 7 hours to ENG cameras. In addition to this, it offers four D-Tap outputs — meaning you won't need splitters if you have multiple accessories to power — and a USB port for charging mobile devices.

The battery has an intelligent LCD that displays remaining runtime in minutes when the battery is in use and as a percentage value when not in use or when charging. When remaining runtime is less than 15 minutes, the LCD will flash as a warning. It'll also show a warning signal with a specific warning code if the battery detects over-discharging, over-charging, circuit issues, and the like. A long press of the power-check button will display the battery's cycle times on the LCD. The PB-S220S also communicates runtime info to RED and Sony viewfinders.

This battery also supports fast charging at 6A using the optional SWIT S-3812S charger, which charges 0 to 80% of the battery in 2.3 hours and provides a full charge in 3.5 hours.

Specifications:
Mount / Series Type V-Mount
Chemistry Lithium-Ion
Capacity (Wh) 220 Wh
Amp-Hours 15.3 Ah
Output Voltage 14.4 VDC
Maximum Load 150 W, 12 A
Accessory Port 4 x D-Tap
Maximum Load (Accessory Port) 120 W, 10 A (D-Tap)
USB Output 5 V, 2 A
Dimensions (W x H x D) 3.74 x 4.76 x 3.78" / 9.5 x 12.1 x 9.6 cm
Weight 3.09 lb / 1.4 kg
