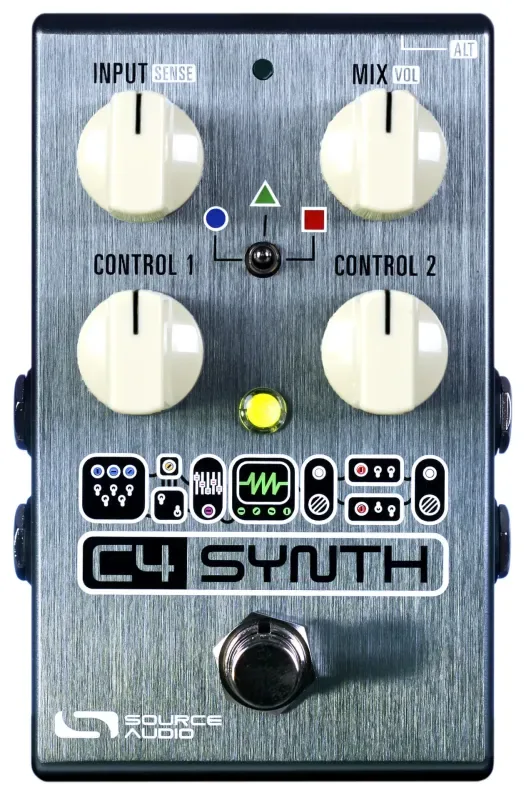

Source Audio C4 Synth

The Source Audio One Series C4 Synth transforms your guitar or bass into a powerful modular synthesizer, delivering an expansive range of synth tones in a compact pedal format.

Inspired by Eurorack modular systems, the C4 offers deep sound design capabilities with four independent voices, multiple oscillator waveforms, envelope followers, filters, and modulation effects. It delivers fast tracking and highly responsive performance for expressive playing.

The pedal includes six onboard presets for quick access, with up to 128 presets available via MIDI. Using the Neuro Desktop Editor or Mobile App unlocks advanced editing, allowing detailed control over synthesis parameters and sound creation.

With flexible routing options, expression control, and USB connectivity, the C4 Synth is a versatile solution for musicians seeking unique textures, from classic analog-style sounds to experimental synth tones.

Features
Modular Synth Effects Pedal For Guitar And Bass
Eurorack Style Sound Design Engine
4 Independent Voices With Multiple Oscillators
6 Onboard Presets Plus 128 Via MIDI
Expression And External Control Support
USB Connectivity And Neuro Editor Integration

Specifications
Voices: 4 Independent Voices
Oscillators: 3 Wave Shapes
Envelope Followers: 11
Filters: 25 Types
Inputs: 2 x 6.3 mm Mono (Left/Right)
Outputs: 2 x 6.3 mm Mono (Left/Right)
Control Input: 3.5 mm TRRS
USB: Mini USB (Windows And Mac Compatible)
Power Supply: 9V DC (Optional Adapter, Center Negative)
Current Draw: 165 mA (195 mA Max With Wireless Adapter)
Battery Operation: Not Supported

Dimensions & Weight
Dimensions: 114 x 70 x 51 mm
Weight: Not Specified

In The Box
Synth Effects Pedal

Compatibility
Guitar And Bass Rigs
MIDI Controllers
Expression Pedals
PC And Mac Systems
