Soundsation ADX-800

The stage always hides traps and unexpected events both for musicians and sound engineers: interferences, poor quality patch cables, bad ground connections and sloppy splitting require large toolboxes.

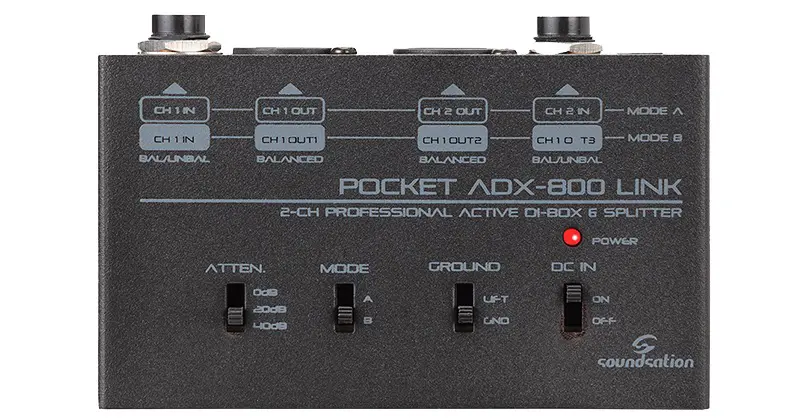

The new ADX-800 LINK combines a 2-channel DI-Box and a Splitter with 1 input and max 3 outputs in a single small and light box. Just select the required mode (A or B) and the connections will work accordingly.

The operation from Phantom Power or external adapter, the input attenuation from 0dB to 40dB and the ground lifter further increase the functionality and setting to different types of audio sources.

KEY FEATURES
2 Channels DI-Box Operation
1 Channel Splitter function with max 3 Outputs

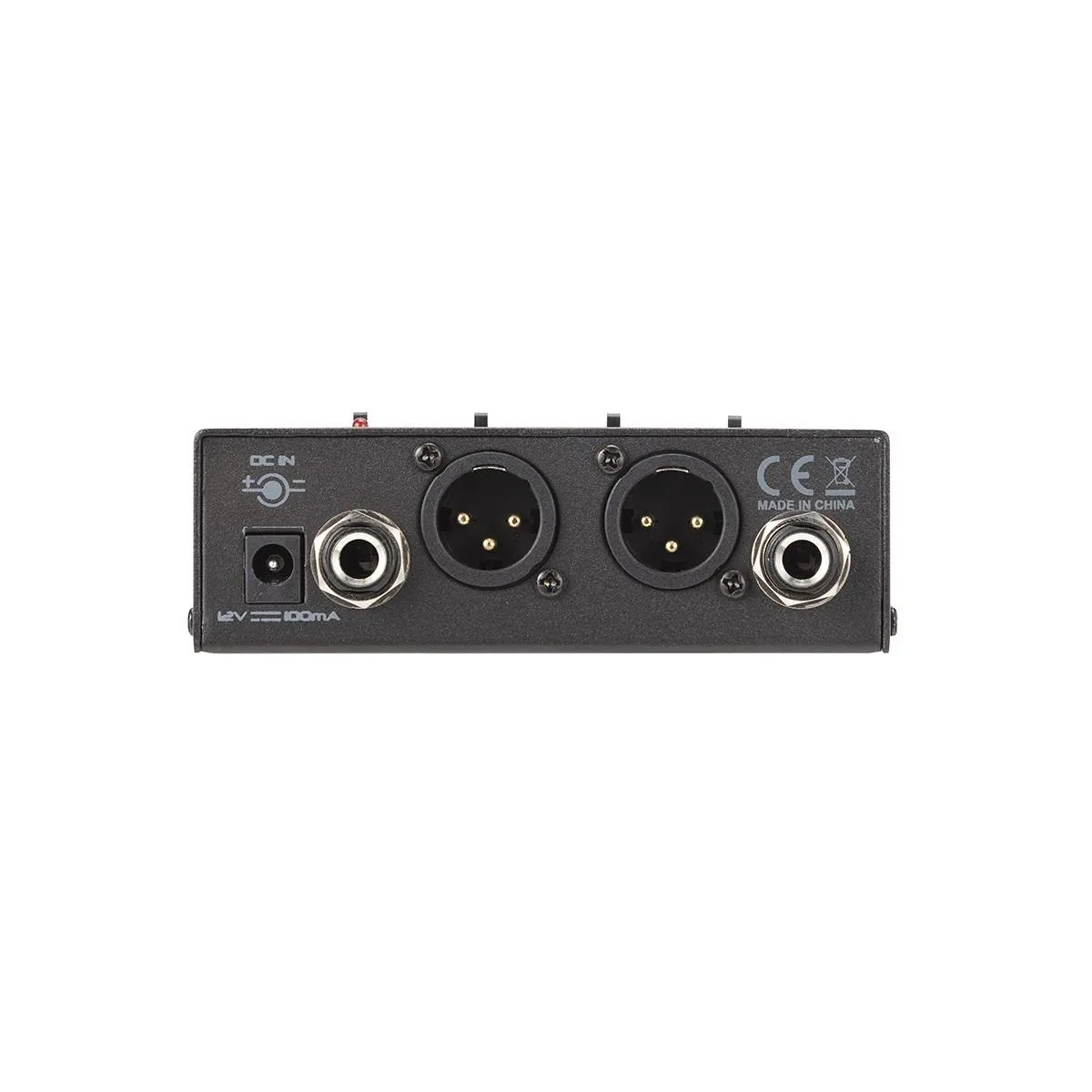

TRS 1/4” Jack Outputs
Balanced XLR Outputs
0/20/40dB Attenuation
Operable via external Power Adapter (supplied) or external Phantom Power
Ground Loop selector

SPECIFICATIONS
Frequency Response 10Hz-30KHz ±1dB
Max Input Level 15 dBU ±1dB
Noise Level -65dBU
Attenuation Pad 0dB/-20dB/-40dB
Modes 2-Channel/Link
Phantom Power (In case of power from balanced XLR connection) +48Vdc
Power Adapter (included) 12Vdc/100mA min.
Consumption 2.3mA
Unit Size 112x65x36 mm
Unit Weight 260g
