Soundcraft Signature Plus 22

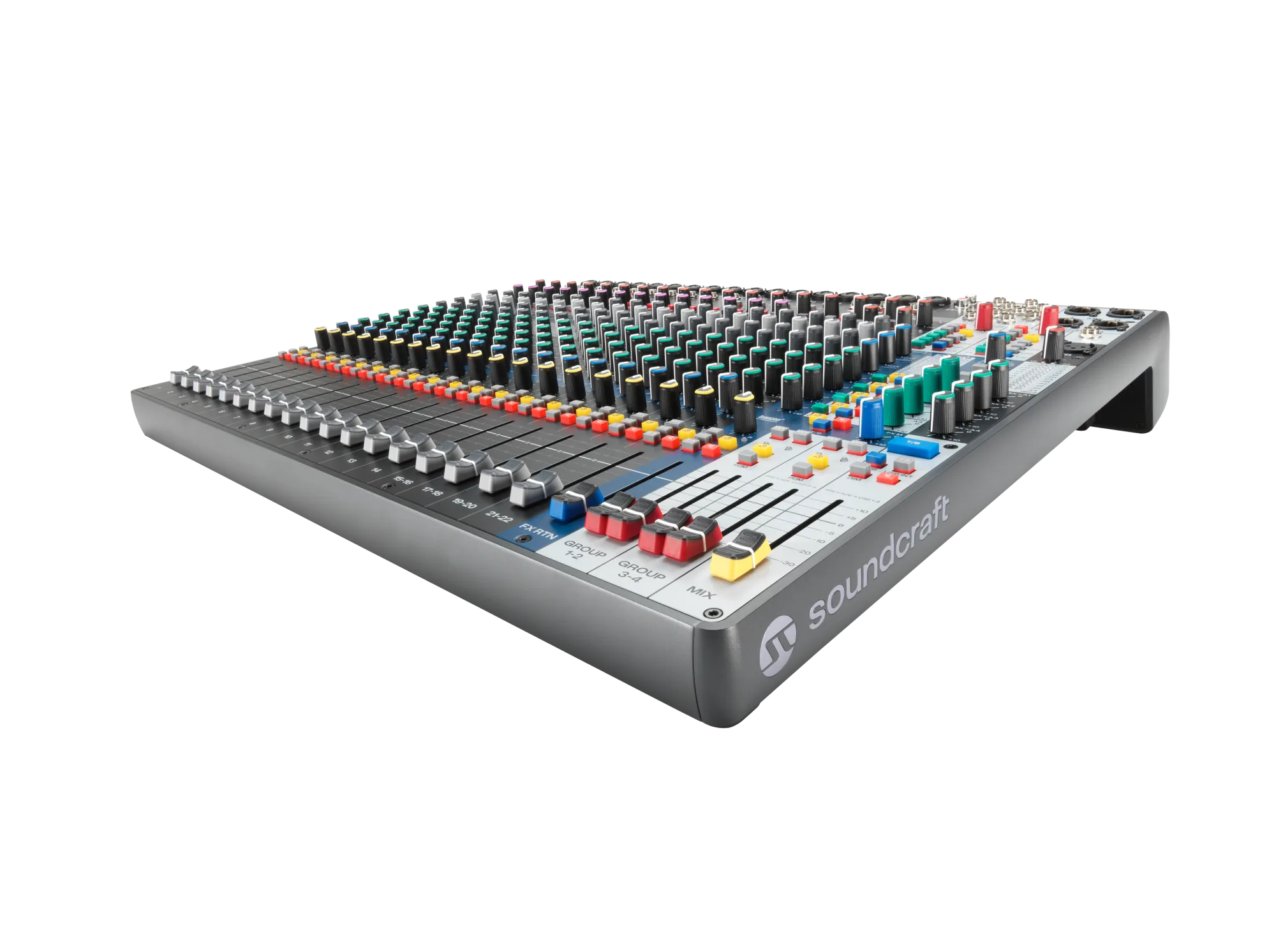

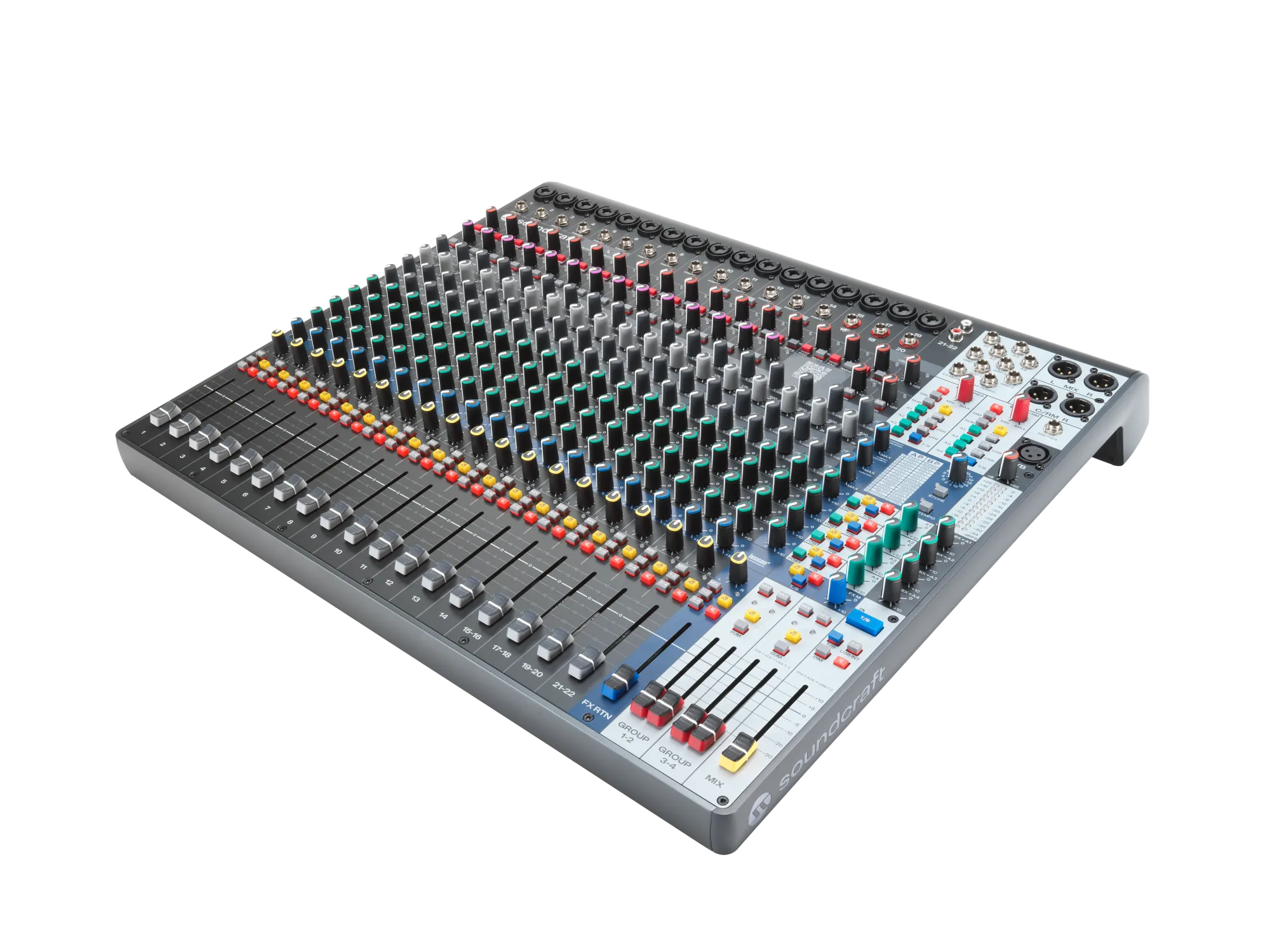

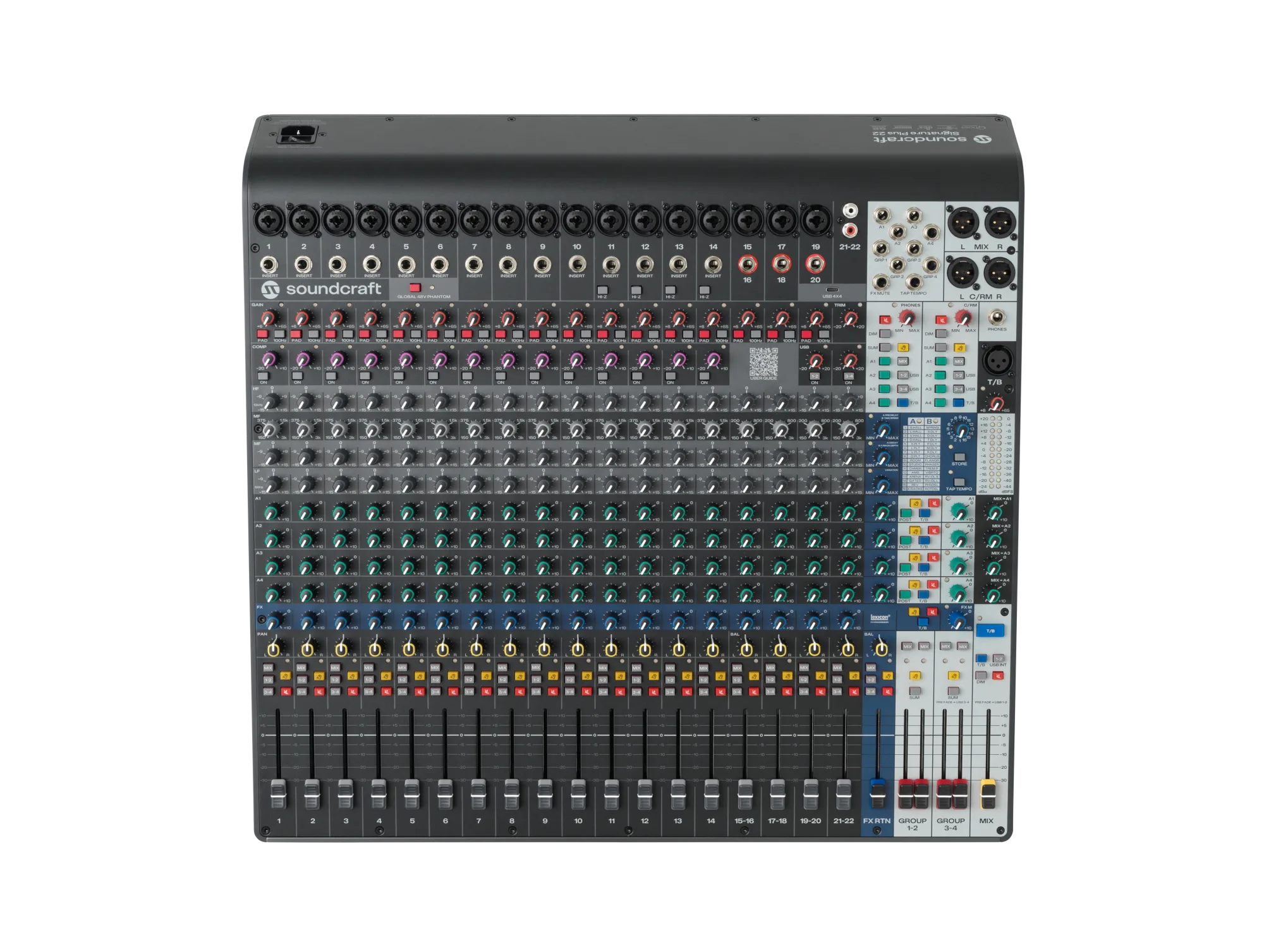

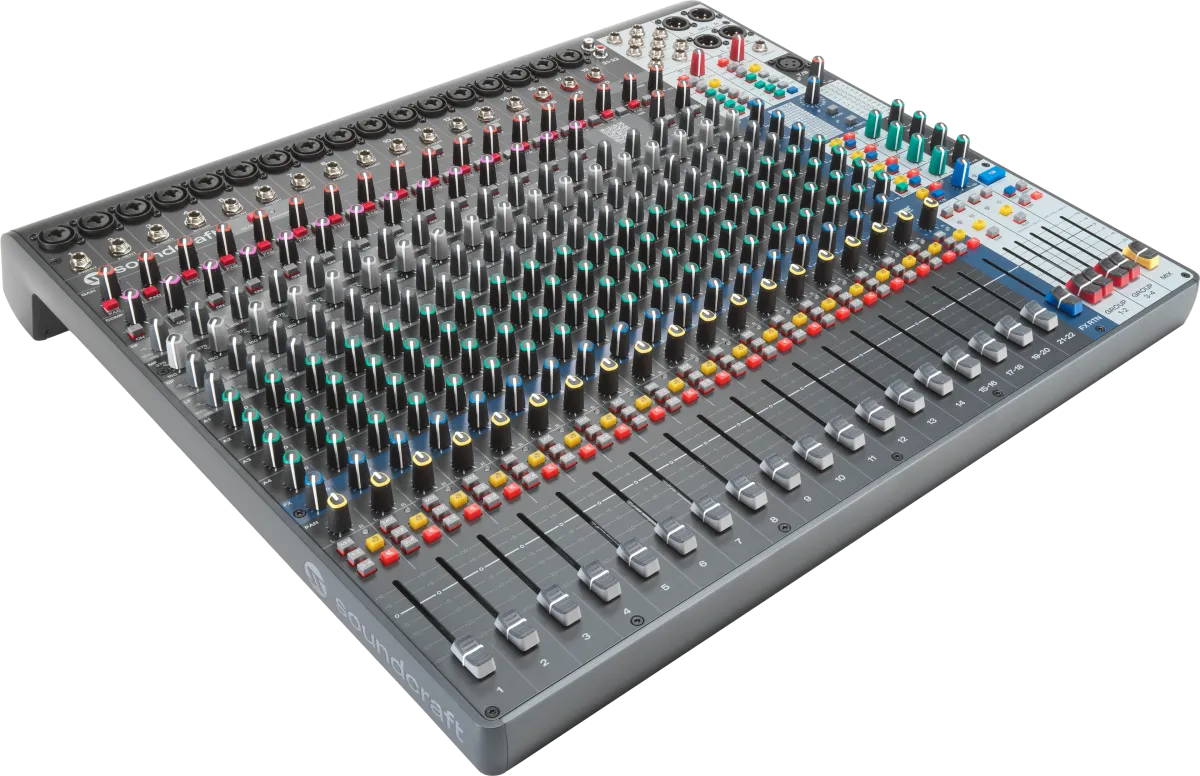

Soundcraft Signature Plus 22 – 22-Channel Analog Mixer with Lexicon Effects

The Soundcraft Signature Plus 22 is a professional 22-channel analog mixer with a clear layout, color-coded buttons and tactile controls for fast and precise operation. It combines Soundcraft Ghost mic preamps, Sapphyre EQ, dbx compressors and a built-inLexicon hardware effects processor with professional workflows for studio, stage and streaming applications.

Features
Soundcraft Ghost mic preamps with smooth high-gain behavior
Built-in dbx one-knob compressors with harmonic enhancement
TRS insert points for flexible sound shaping
Sapphyre EQ for musical tone shaping
Built-in Lexicon hardware effects processor with Store and Tap Tempo
22 creative input channels
Extensive SSM (Simple Success Metering) for visual feedback
Color-coded buttons and tactile “squircle” knobs
Premium-quality faders for precise control
4 Aux sends and Mix to Auxes
Pro Listen bus for monitoring without interrupting the main mix
Talkback To routing to user-selected outputs
4x4 USB-C interface with sample rates up to 196 kHz for playback and recording
USB inputs can be routed into channel strips or used to override the mix for break music and DJ sets
User-configurable headphone and control room monitoring outputs
Mute, Dim and Mono Sum monitoring functions
Selection from Auxes, Listen, Mix or direct USB returns for monitoring
Single-press selection for direct headphone and control listening between sessions
Front-panel QR code providing access to training, manuals and support
Included software bundle supporting modern hybrid workflows
Rugged construction

Technical Specifications
Equivalent Input Noise (EIN): -128 dBu
Frequency Response: 20 Hz–20 kHz, +0.5/-1.5 dB
Frequency Response, -3 dB: 15 Hz–80 kHz
Residual Noise: -90 dBu
Residual Noise, RCA Channel: -78 dBu
THD+N: <0.005%
CMRR: >80 dB
Crosstalk: -80 dB
Aux Send Isolation: -75 dB
USB Sample Rates: 44.1, 48, 88.1, 96, 176.2 and 196 kHz
USB Full Scale Playback Level: +17 dBu
USB Full Scale Recording Level: +20 dBu
USB Dynamic Range, Playback: 94 dB
USB Dynamic Range, Recording: 107 dB
USB THD+N, Playback: <0.01%
USB THD+N, Recording: <0.005%
Product Dimensions: 560 x 535 x 106 mm
Product Weight: 9.7 kg
Box Dimensions: 732 x 655 x 213 mm
Weight in Box with Accessories: 15.9 kg
Power Supply: Worldwide
