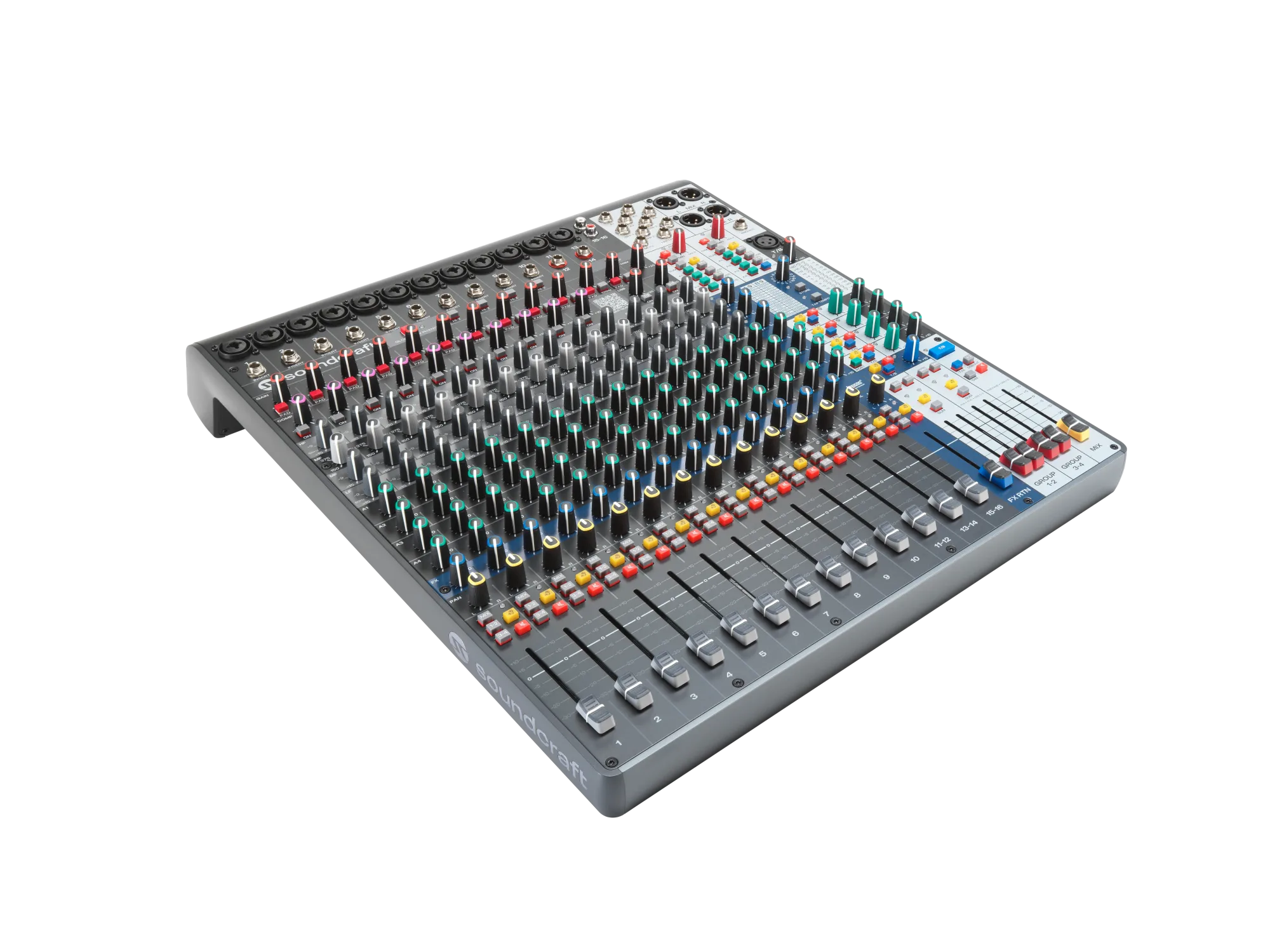

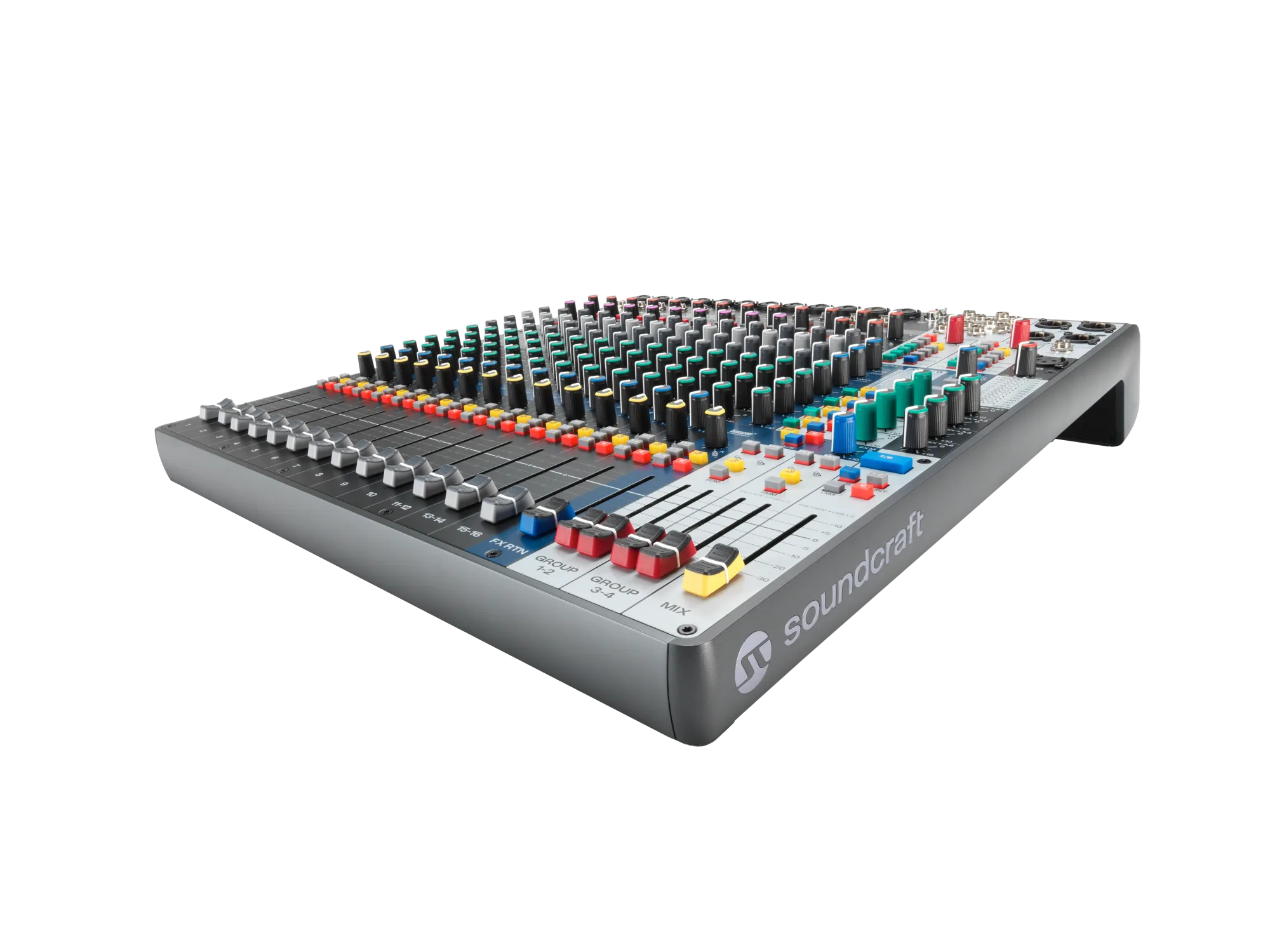

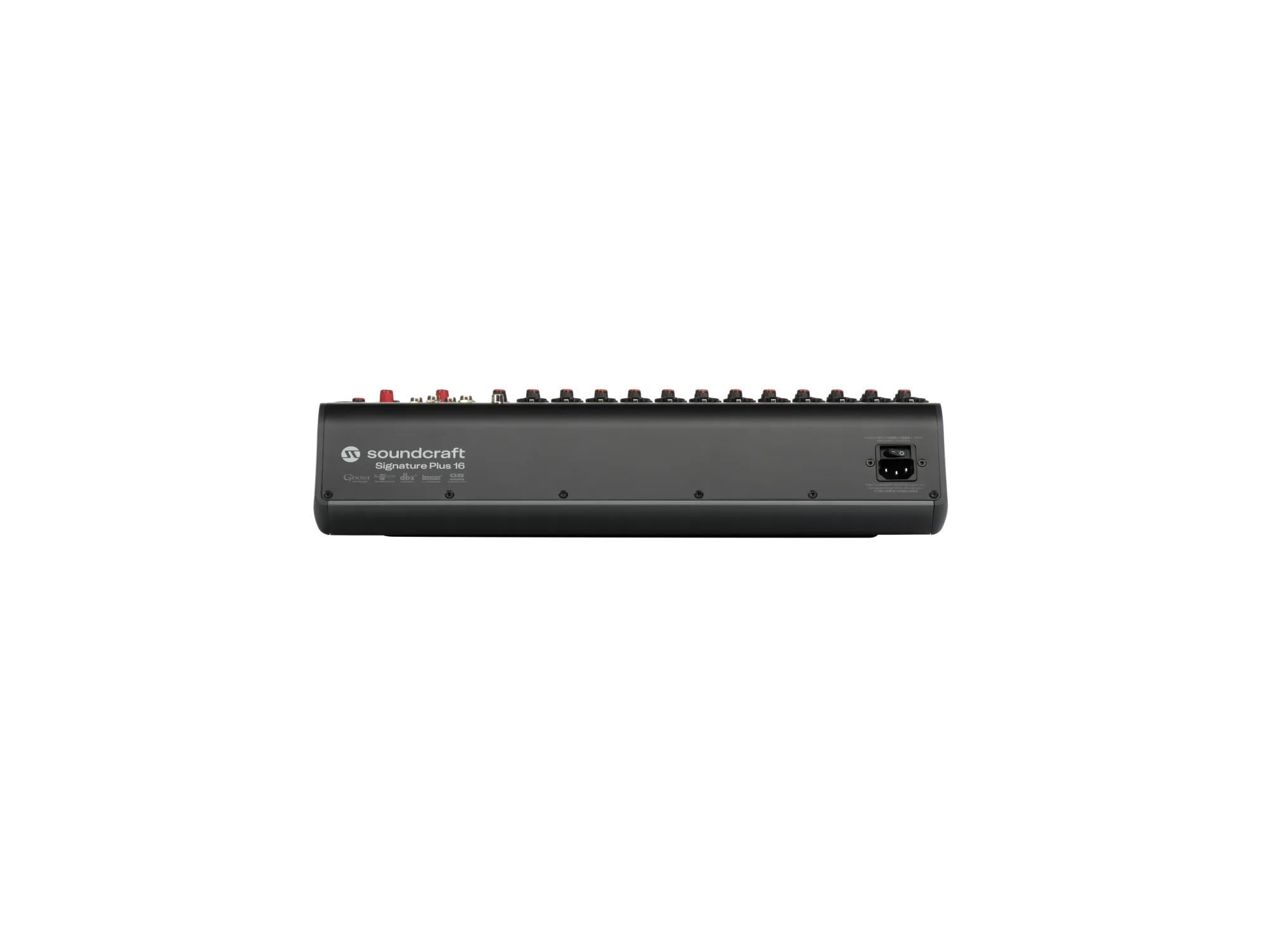

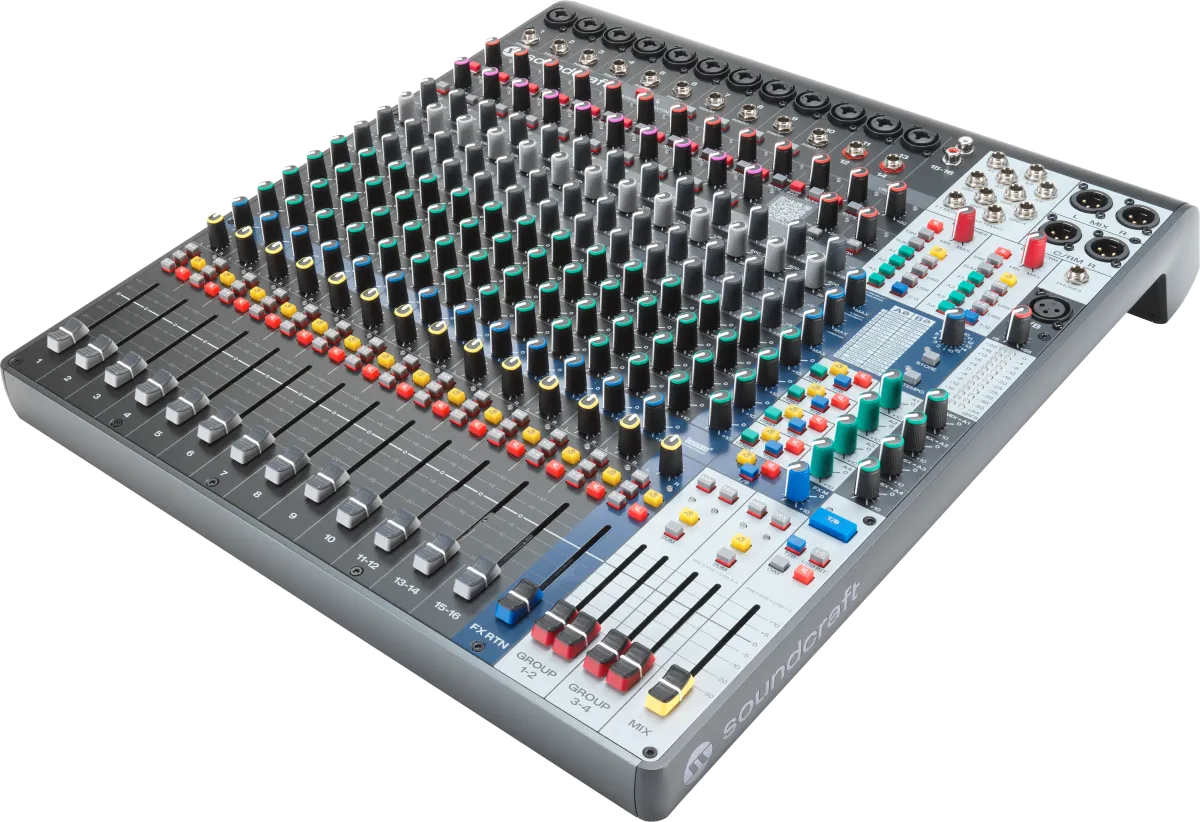

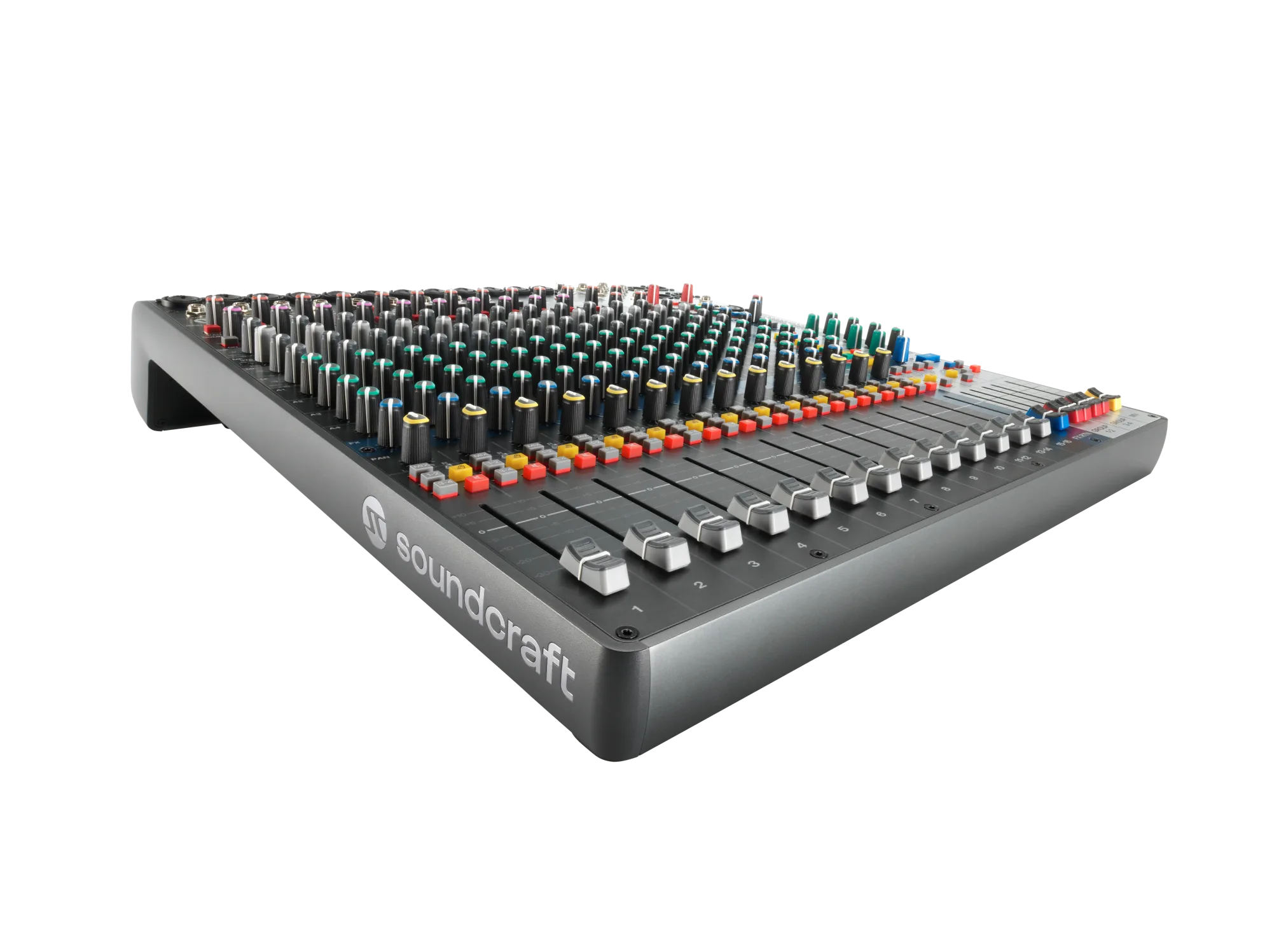

Soundcraft Signature Plus 16

Soundcraft Signature Plus 16 – 16-Channel Analog Mixer with Lexicon Effects

The Soundcraft Signature Plus 16 is a professional 16-channel analog mixer with 16 creative input channels and an intuitive, clearly organized control layout. It combines Soundcraft Ghost microphone preamps, Sapphyre EQ, dbx compressors and a built-in Lexicon hardware effects processor with modern workflows and USB-C connectivity.

Features
Soundcraft Ghost microphone preamps with smooth overload behavior and high-gain performance
Sapphyre EQ for musical tone shaping
Built-in dbx one-knob compressors with harmonic enhancement
TRS insert points for flexible sound shaping
Built-in Lexicon hardware effects processor with Store and Tap Tempo
16 creative input channels
4x4 USB-C interface with up to 192 kHz for recording and playback
USB inputs can be routed to channel strips or used for break music and DJ sets
Listen bus for monitoring channels without interrupting the main mix
Talkback To routing for communication to selected outputs
4 Aux sends
Mix to Auxes for flexible monitor output control
SSM (Simple Success Metering) for visual feedback across inputs and outputs
User-configurable monitoring with independent headphone and control room outputs
Mute, Dim and Mono Sum
Selectable monitoring from Auxes, Listen, Mix or direct USB returns
Color-coded buttons and tactile “squircle” knobs for fast and precise operation
Smooth, premium-quality faders for precise control
Front-panel QR code providing access to training, manuals and support
Included software bundle for modern hybrid workflows
Rack-ear mounts included
Rugged construction

Technical Specifications
Equivalent Input Noise (EIN): -128 dBu
Frequency Response: 20 Hz–20 kHz, +0.5/-1.5 dB relative to 1 kHz
Frequency Response, -3 dB: 15 Hz–80 kHz
Residual Noise: -90 dBu
Residual Noise, RCA Channel: -78 dBu
THD+N: <0.005%
CMRR: >80 dB
Crosstalk: -80 dB
Aux Send Isolation: -75 dB
USB Sample Rates: 44.1, 48, 88.1, 96, 176.2 and 196 kHz
USB Full Scale Playback Level: +17 dBu
USB Full Scale Recording Level: +20 dBu
Dynamic Range, Playback: 94 dB
Dynamic Range, Recording: 107 dB
THD+N, USB Playback: <0.01%
THD+N, USB Recording: <0.005%
Product Dimensions: 438 × 535 × 106 mm
Product Weight: 7.8 kg
Box Dimensions: 610 × 649 × 199 mm
Weight in Box with Accessories: 13.5 kg
Power Supply: Worldwide
