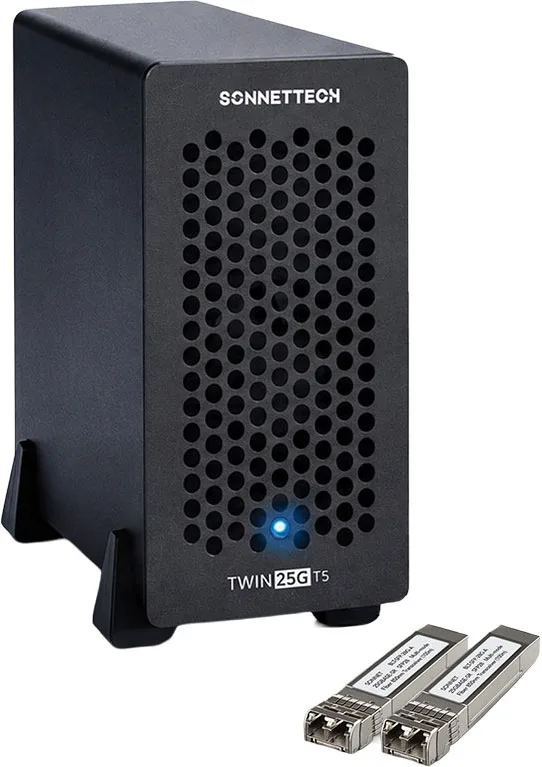

Sonnet Twin25G T5

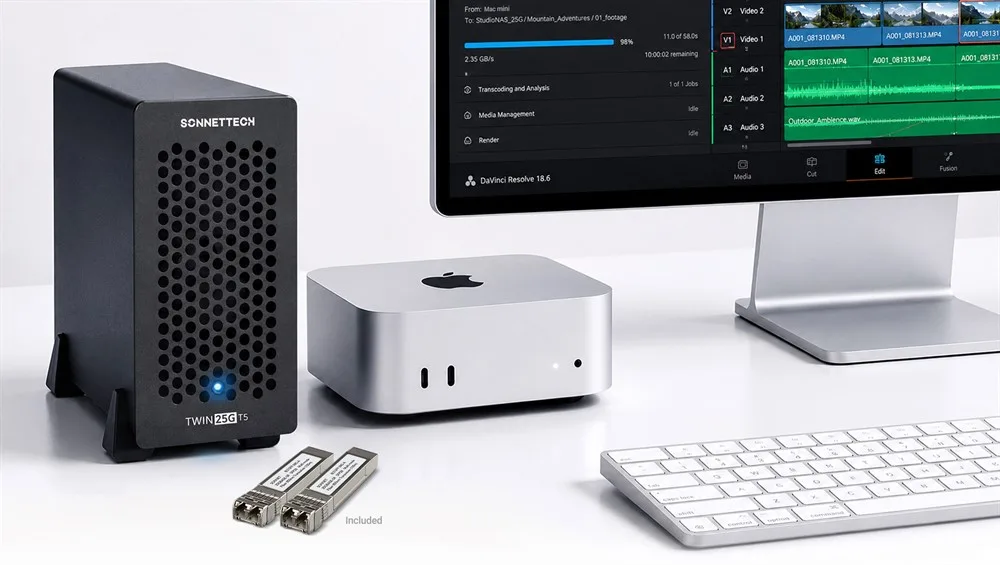

The Sonnet Twin25G T5 Thunderbolt 5 Adapter provides dual-port 25GbE fiber connectivity for computers without PCIe slots. It is designed for post-production and other bandwidth-intensive workflows that have outgrown 10GbE, while remaining compatible with existing 10GbE infrastructure.

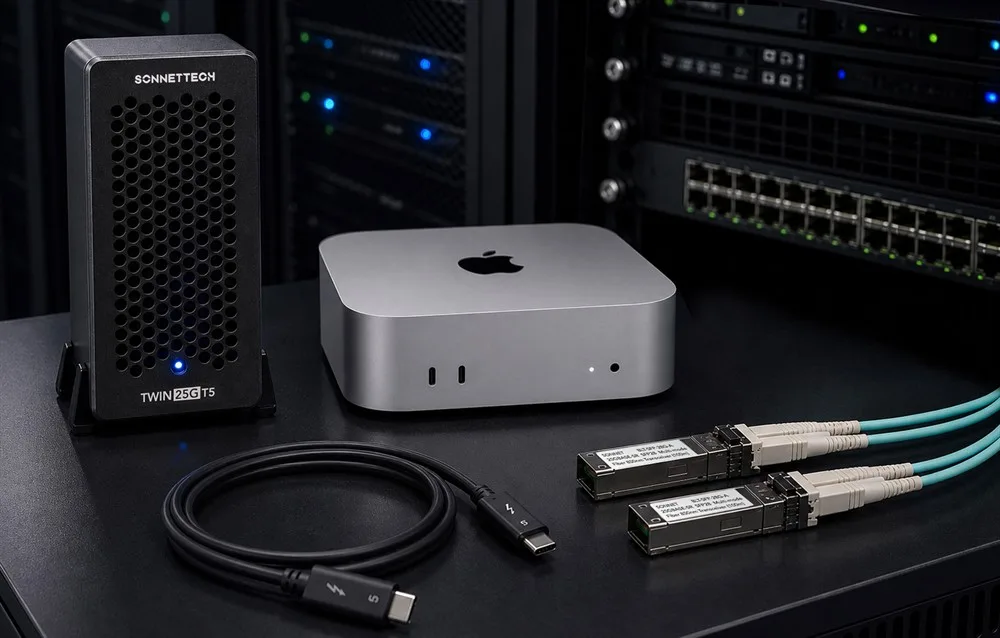

The adapter connects to computers through Thunderbolt 5, Thunderbolt 4, or USB4 and includes two 25GBASE-SR SFP28 transceivers. It supports Apple M series Macs, Intel Macs with Thunderbolt 3, and compatible Windows and Linux computers.

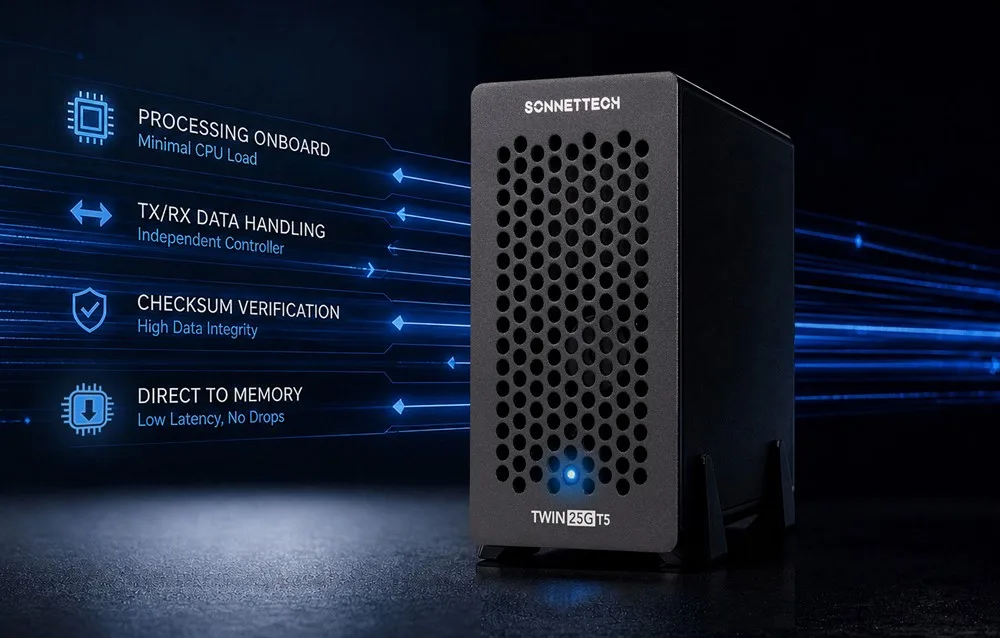

Twin25G T5 uses an intelligent controller with onboard processing and memory to handle TX/RX data with minimal host CPU load. TX checksums are calculated during transmission, while RX checksums are verified before data is passed directly to main memory, helping minimize latency and packet drops.

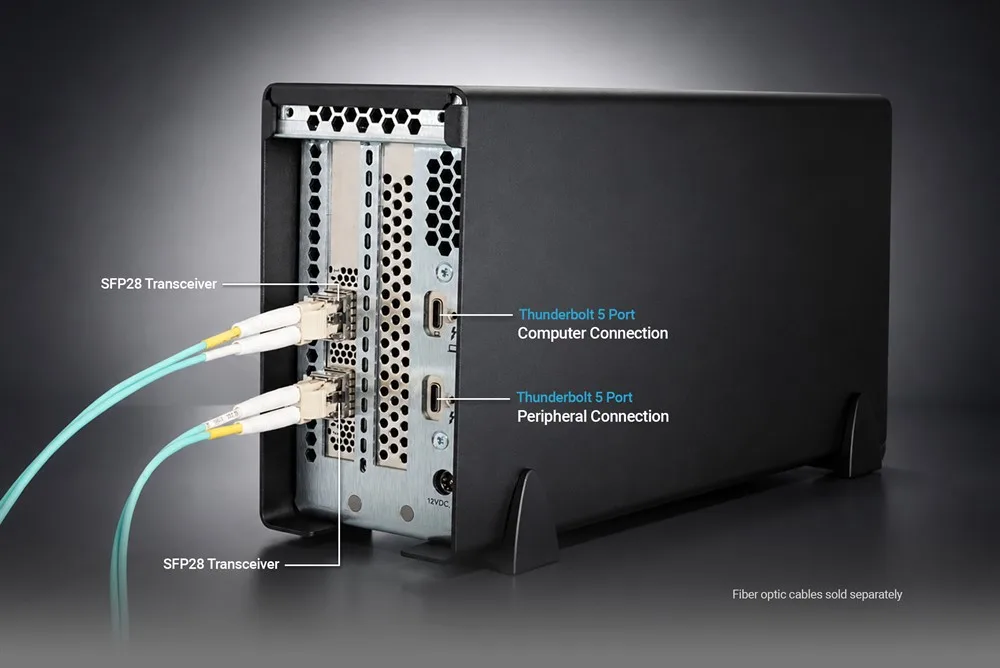

The compact enclosure uses a temperature-controlled variable-speed fan for cooling while keeping operating noise low. One Thunderbolt 5 port connects to the computer, while the second provides 15 W for an additional Thunderbolt or USB peripheral and supports connection of a compatible display.

Features
Adds dual optical 25GbE connectivity
Two 25GBASE-SR SFP28 transceivers included
Backward compatible with 10GbE
Two Thunderbolt 5 ports
Secondary Thunderbolt port provides 15 W for a Thunderbolt or USB device
Supports up to one 6K display
Intelligent controller minimizes host CPU load
Compact, low-noise design with temperature-controlled variable-speed fan
Mac compatible
Windows compatible
Linux compatible
ThunderLok-A connector lock included

Compatibility
Apple M series Macs
Intel Macs with Thunderbolt 3
Windows computers with Thunderbolt 5, Thunderbolt 4, or USB4
Linux computers with Thunderbolt 5, Thunderbolt 4, or USB4

Specifications
Network Connectivity: Dual 25GbE optical
Network Transceivers: 2 × 25GBASE-SR SFP28
Network Compatibility: 25GbE and 10GbE
Computer Interface: Thunderbolt 5
Secondary Thunderbolt Port Power: 15 W
Display Support: Up to one 6K display

In The Box
Twin25G T5 Thunderbolt 5 Adapter
2 × 25GBASE-SR SFP28 transceivers
Universal power adapter
Region-specific power cable
0.8 m Thunderbolt 5 cable
ThunderLok-A connector lock
Documentation
