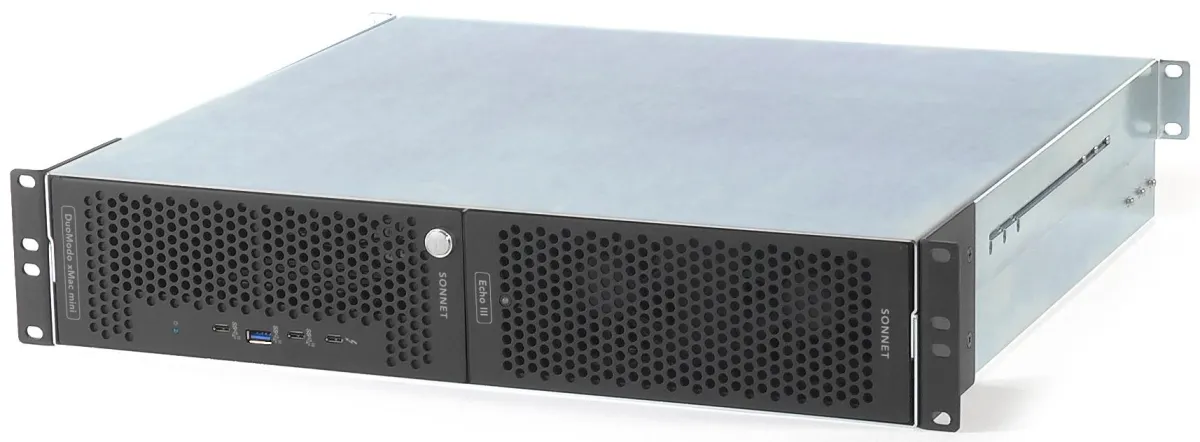

Sonnet DuoModo xMac mini/Echo III Rack

The pre-configured DuoModo™ xMac™ mini/Echo™ III Rackmount System integrates a Dual-Module Rackmount Enclosure with one xMac mini module and one Echo III module.

Features

System Configuration:
For Intel® or Apple® M1 Mac mini

Dual-Module Rackmount Enclosure:
Dual-module 2U Rackmount Enclosure
Rugged Steel Construction
Same Enclosure Used in Echo III Rackmount
19 inches Wide x 16.5 inches Deep x 3.5 inches High
Included Rack Rails Support Installation in Racks 16-24" Deep

xMac mini Module:
Securely Holds an Intel or Apple M1 Mac mini (sold separately) in a Rugged Steel Frame
Open Access to the Computer’s Ports in Back
Built-in Thunderbolt™ 3 Dock
Four Front Panel Ports Include One Thunderbolt 3 (40Gbps) Port, Two USB 3.2 (10Gbps) Type-C Ports, and One USB 3.2 (10Gbps) Type A Port
Two Internal M.2 NVMe SSD Sockets – Add up to 16TB (SSDs sold separately)
One Internal USB 3.2 (10Gbps) Type A port (for Securely Connecting an iLok USB-A, Thumb Drive, or Bus-powered USB Storage Drive)
Internal Thunderbolt 3 (40Gbps) Port Connects Dock to the Mac mini
Dual Quiet, Temperature-controlled, Variable-speed Fans
Power Cable Included
Thunderbolt 3 (40Gbps) Cable Included

Echo III Module:
Three Versatile PCIe Slots
One x16 plus Two x8 PCIe Slots
Supports Three Full-height, Full-length Thunderbolt-compatible, non-GPU PCIe Cards ( View PDF of supported PCIe Cards)
AVID QUALIFIED – Supports up to Three Avid Pro Tools | HDX PCIe Cards
Built-in 400W Power Supply with 75W Auxiliary Power Connector
Powers On and Off Automatically with Connected Computer
Dual Temperature-controlled, Variable-speed Noctua fans rated at 17 dbA
Two Thunderbolt 3 Ports
40Gbps Thunderbolt 3 Interface Offers 2750 MB/s of PCIe Bandwidth to the Installed PCIe Cards
Power Cable Included
Thunderbolt 3 (40Gbps) Cable Included
ThunderLok 3 Thunderbolt Connector Retainer Clip Included

Why Sonnet?
2-year Product Warranty
Free Lifetime Customer Technical Support
Designed and Made in the USA
