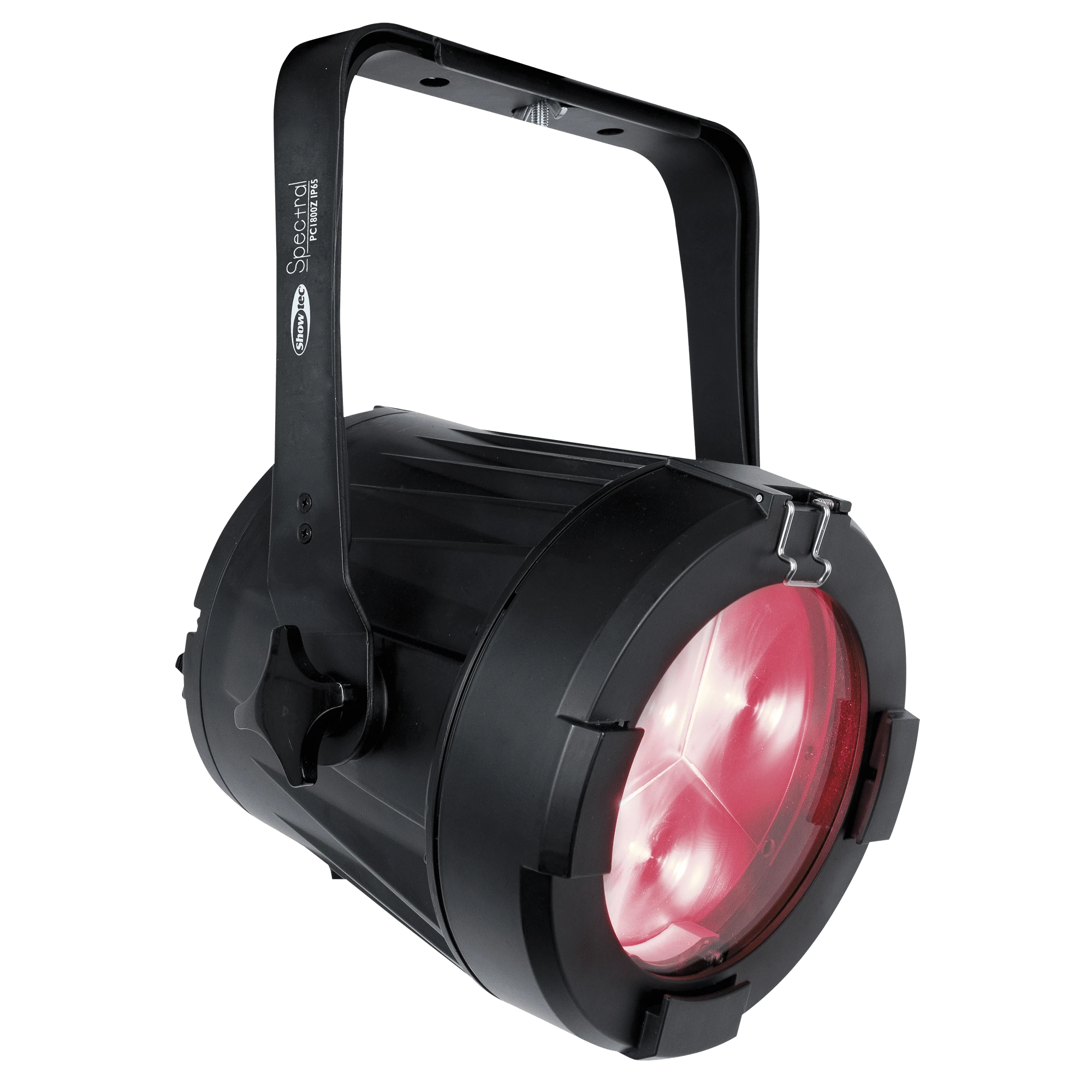

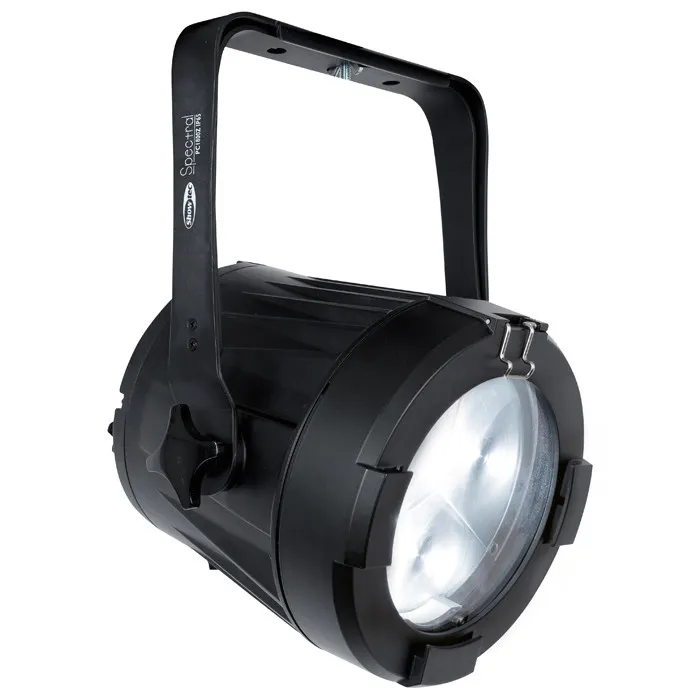

Showtec Spectral PC 1800Z

Showtec Spectral PC 1800Z – 180 W RGBW LED Par for indoor and outdoor use

The Showtec Spectral PC 1800Z is a powerful and compact 180 W RGBW LED Array Par with motorized zoom and an IP65 rating for professional lighting installations both indoors and outdoors. The wide zoom angle of 4.5°–45° allows the fixture to be used as both a focused pinspot and a wide wash effect.

The homogeneous light pattern from the PC lens optics is combined with advanced color mixing, dimming, and strobe for flexible lighting designs in a wide variety of environments.

Features and Specifications

180 W RGBW LED Array
Motorized zoom 4.5°–45°
Quick zoom function from pinspot to wash
IP65-rated for outdoor use
PC lens optics for even light distribution
0–100% dimming
Strobe 0–25 Hz
DMX and RDM support
Auto, Manual, Built-in Program, and Master/Slave modes
LCD display
Convection cooling for quiet operation
Robust aluminum housing

Light Source

Light source: LED
Power: 180 W
LED colors: RGBW
Total luminous flux: 2067 lm
Red brightness: 449 lm
Green brightness: 836 lm
Blue brightness: 267 lm
White brightness: 1300 lm
Color temperature: 2700–10000 K
Refresh rate: up to 25000 kHz

Optics and Zoom

Minimum beam angle: 4.5°
Maximum beam angle: 45°
Zoom type: Motorized
Zoom ratio: 1:10

Control and Connections

Control via DMX, Manual, Auto, and Built-in Programs
DMX channels: 9 / 12 / 17
Protocols: DMX and RDM

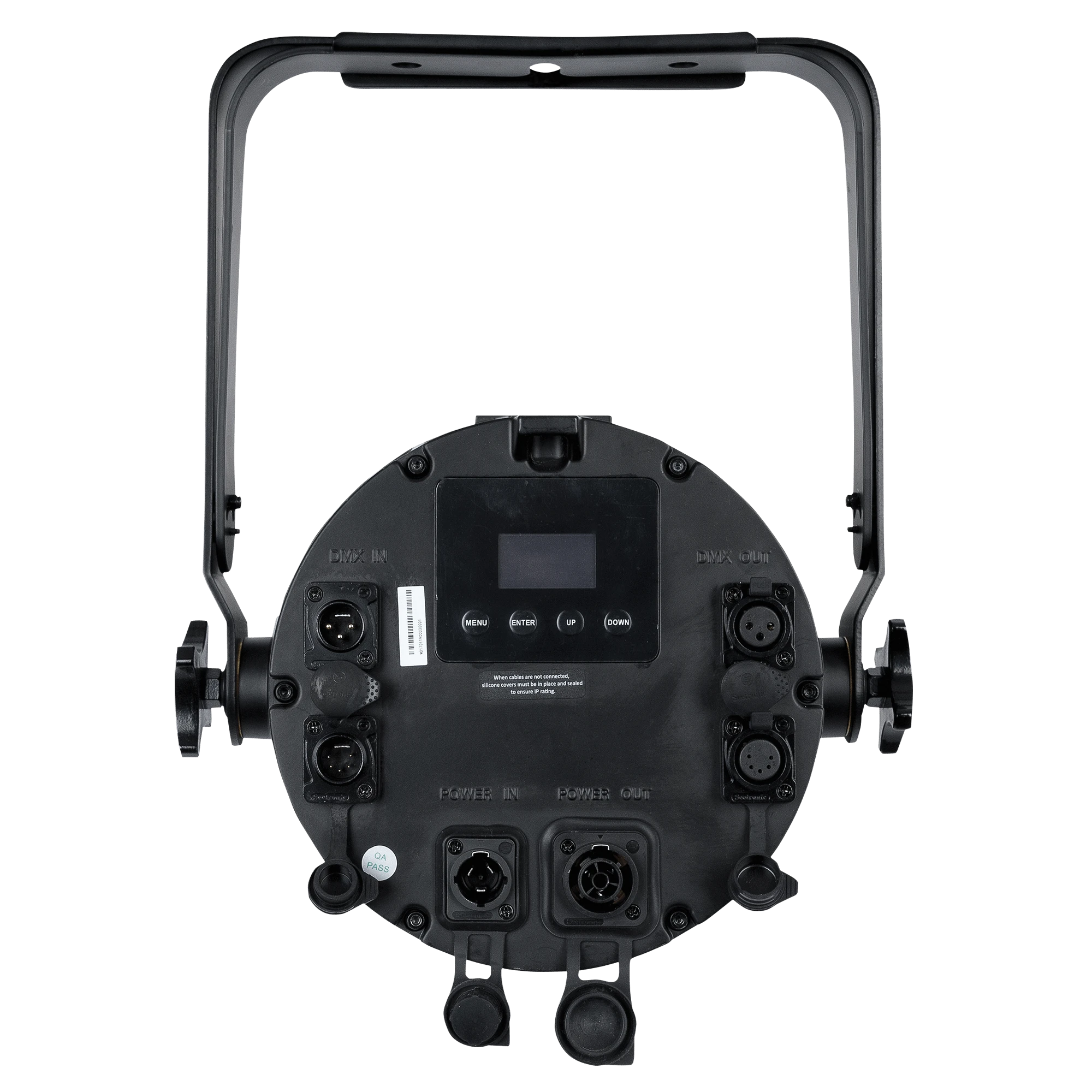

powerCON TRUE1 in/out
Dedicated 3-pin and 5-pin IP65 DMX in/out
Cable length: 1.5 m

Dimensions and weight

Length: 265 mm
Width: 240 mm
Height: 405 mm
Weight: 9.3 kg

Construction and operation

Enclosure rating: IP65
Material: Die-cast aluminum
Color: Black
Operating temperature: -10 °C to 40 °C

Included

powerCON TRUE1 cable
Mounting bracket
Safety cable
