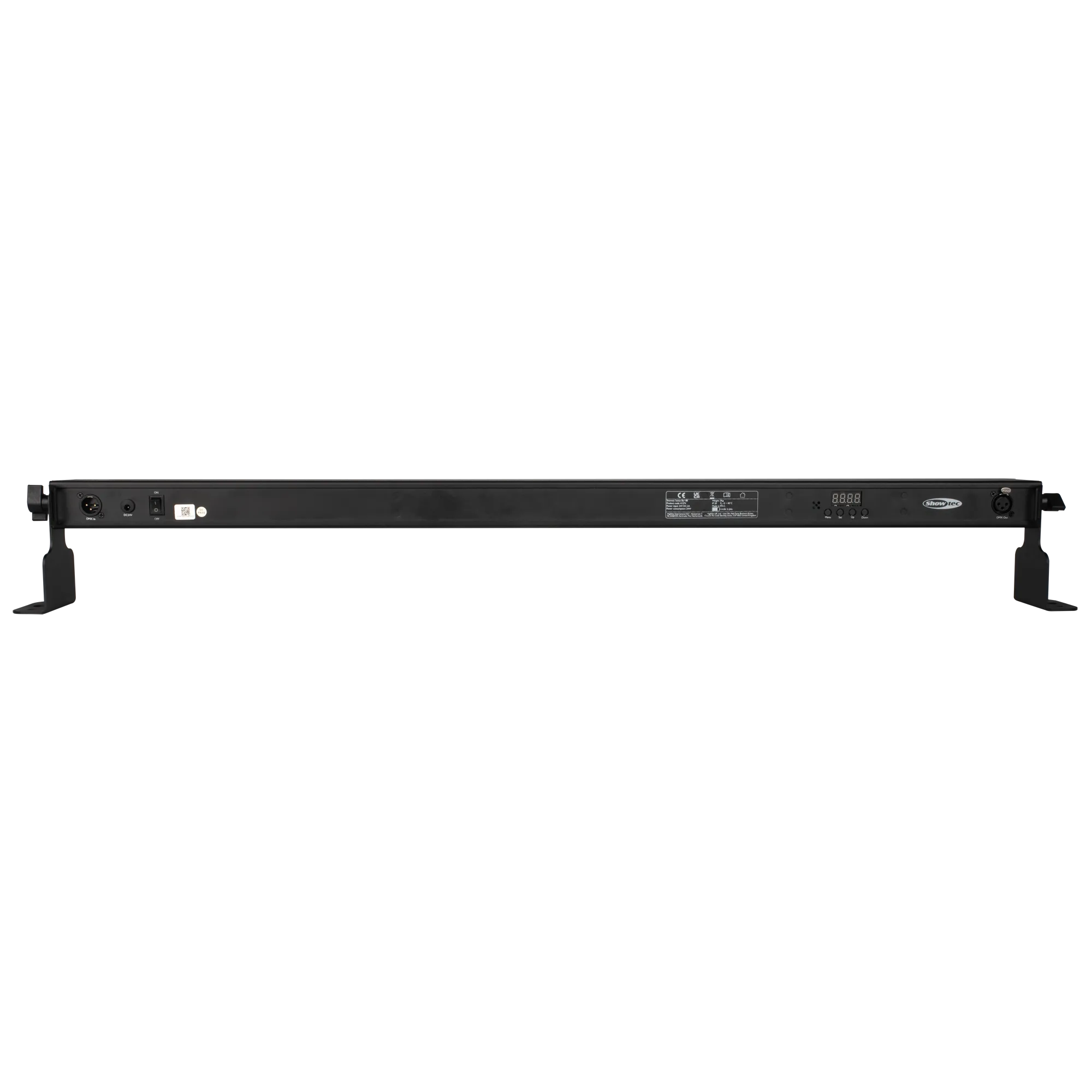

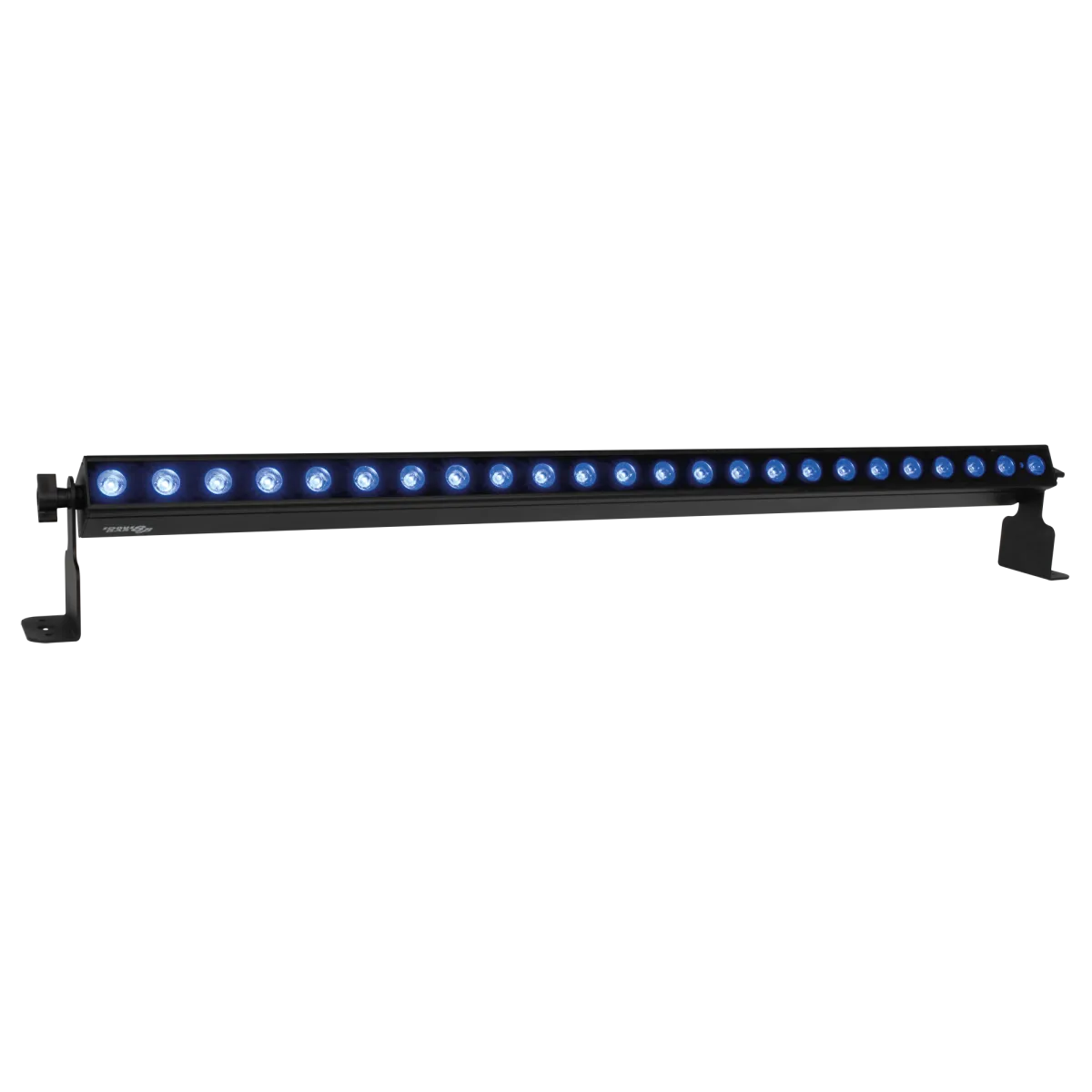

Showtec Sonus Bar 8B

The Showtec Sonus Bar 8B is a battery-powered light bar with 24 RGBW LEDs of 2 W each. The battery lasts 4.5 hours at maximum output, but longer in typical use (which is not all LEDs on 100%). The LEDs can be controlled in up to 8 sections via up to 38 DMX channels. It also features a high-quality sound-controlled mode, which is useful in many occasions and for professionals and beginners alike. It can also work in stand-alone mode with built-in programs, manual settings, in master/slave mode and it supports RDM. The Showtec Sonus Bar 8B is convection-cooled, so it is completely silent in operation.

Specifications
Light Source
Type: LED
Quantity: 24 LEDs
Power per LED: 2 W
Colour Type: RGBW
Refresh Rate: 1000 Hz
Luminous Flux (Total): 924 lm

Optical
Beam Angle (Horizontal): 16.4°
Beam Angle (Vertical): 11.3°

Battery
Type: Lithium-ion
Voltage: 14.8 V
Capacity: 5.2 Ah
Runtime at Full Brightness: 3.5 hours
Charging Time: 3 hours

Control & Programming
Control Modes: Built-in Program, DMX, Manual, Master/Slave, Remote, RDM, Sound
DMX Channels: 4, 6, 10, 32, 34, 38
Protocols Supported: DMX, RDM
Display Type: 7-segment

Dynamic Effects
Dimmer Range: 0–100%
Strobe Rate: 0–15 Hz

Electrical
Power Supply: 24 V DC
Power Consumption: 24 W
Power Connector (Input): Low voltage DC plug
DMX Connectors: XLR 3-pin In/Out

Mechanical
Length: 1091 mm (42.953″)
Width: 80 mm (3.15″)
Height: 148 mm (5.827″)
Weight: 3.3 kg (7.275 lb)
IP Rating: IP20 (Indoor use only)
Housing Material: Aluminium
Fixture Colour: Black

Cooling & Environment
Cooling: Convection
Max Ambient Temperature: 40°C (104°F)
Min Operating Temperature: -5°C (23°F)

Included Items
Cables: Low voltage DC plug cables
