Showtec Demon

Showtec Demon 140 W LED Barrel Scan Effect

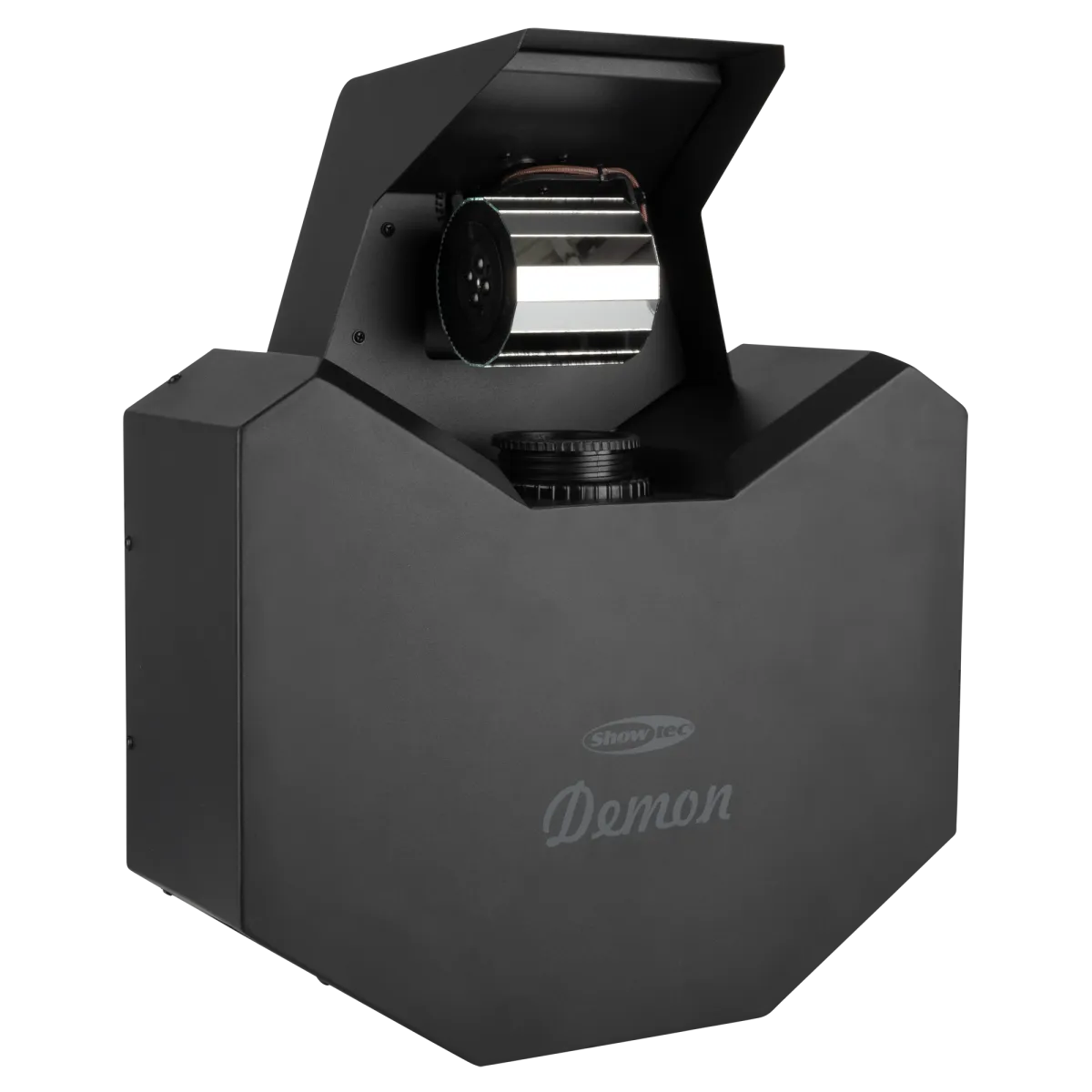

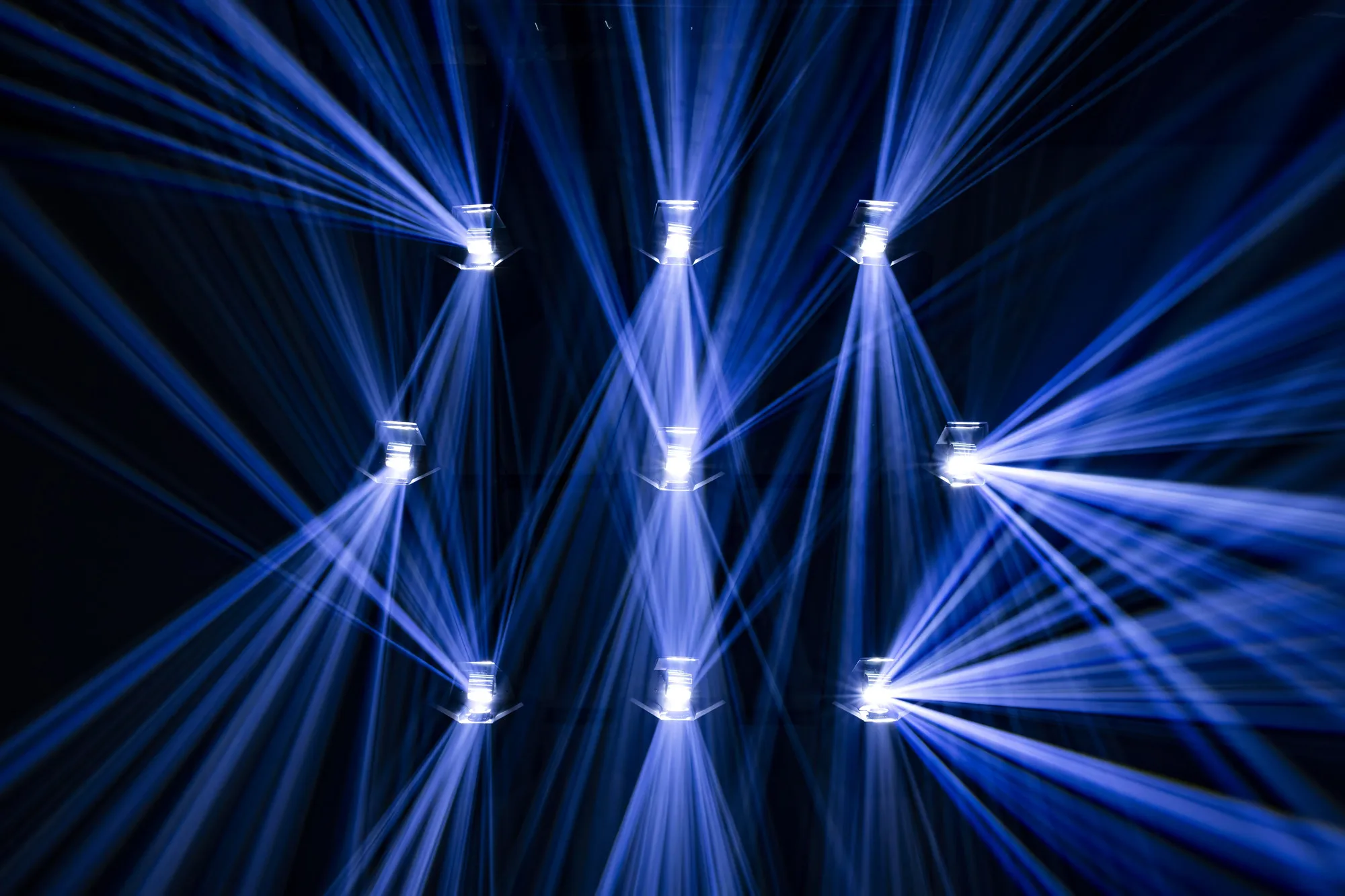

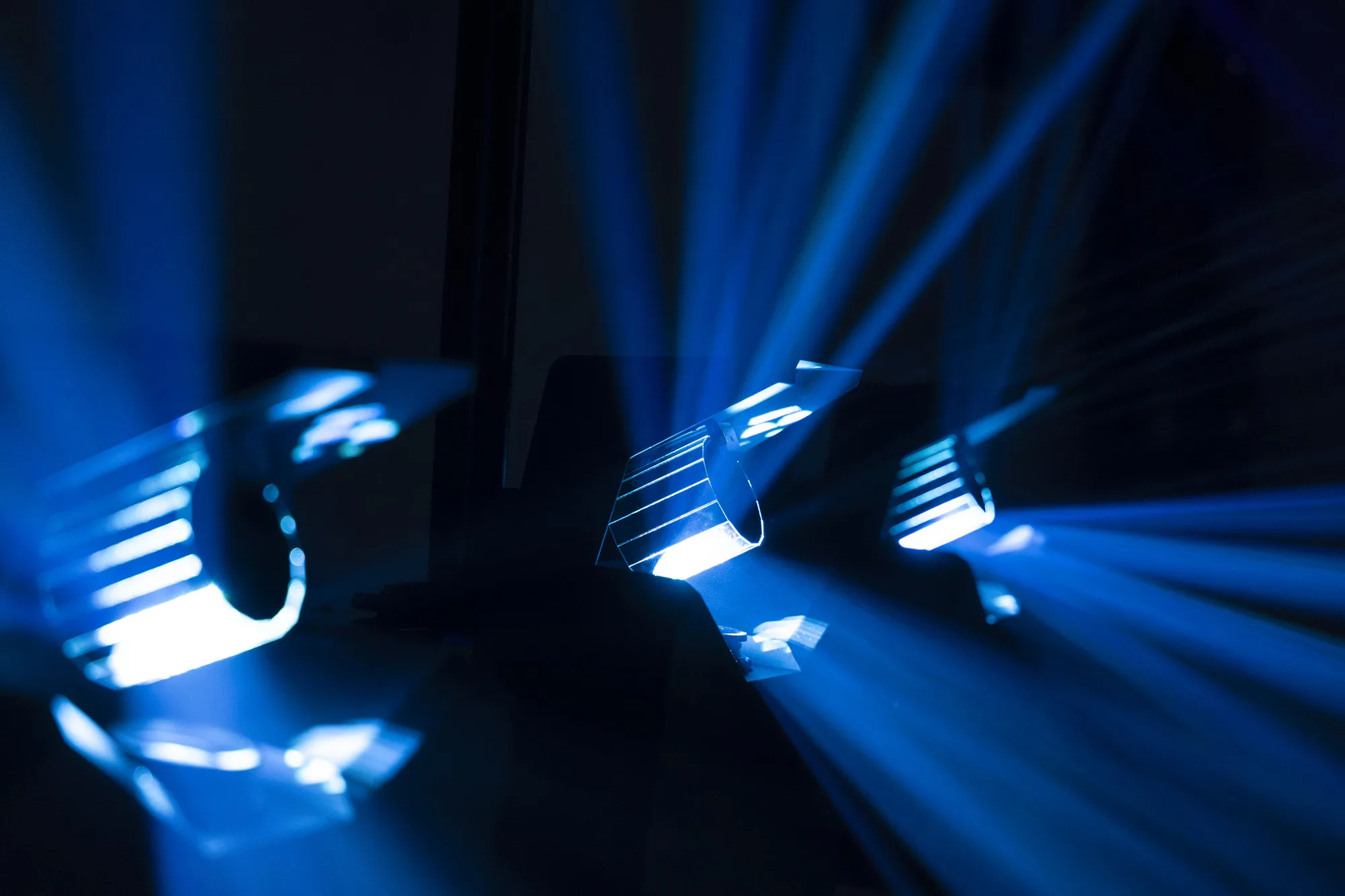

The Showtec Demon is a dynamic barrel scan effect with a 140 W LED light source that produces vibrant beams and sharp projections. It features a rotating moonflower mirror, colour wheel, and gobo wheel for dynamic and continuous effects. Both the barrel mirror and moonflower mirror offer infinite rotation.

Features
140 W LED light source
Barrel and moonflower mirrors with infinite rotation
Colour wheel with 9 colours + open
Split colour function with up to 16 colour combinations
Gobo wheel with 7 gobos + open
Replaceable rotating gobos
DMX/RDM control
3, 9, or 12 DMX channels
Auto programs
Sound-to-light mode
180° pan
360° tilt

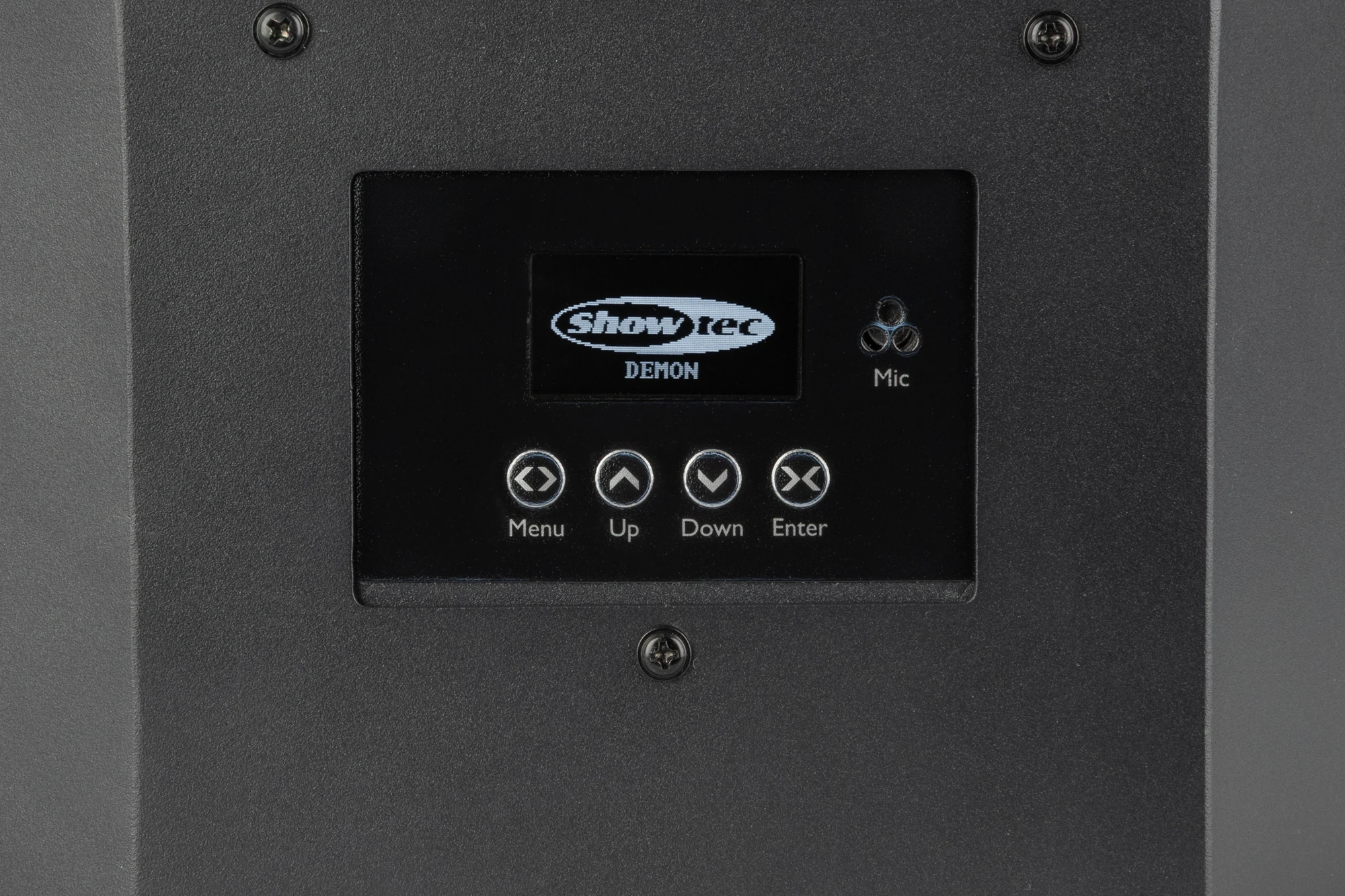

OLED display
Quick-Lock bracket for truss mounting
Wall mounting with standard bracket

Specifications
Light source type: LED
Light source quantity: 1
Light source power: 140 W
LED colour type: White
Refresh rate: 1000 Hz
Luminous flux: 5200 lm
CRI: 70
Beam angle: 22.6°
Focus: Manual
Control modes: Built-in program, DMX, Manual, Master/Slave, RDM, Sound
DMX channels: 3, 9, 12
Protocols: DMX, RDM
Dimmer: 0–100%
Strobe: 0–20 Hz
Colour system: Colour wheel
Colour wheel index & rotate: Yes
Dichroic colour wheel: 9 + Open
Gobo system: Metal
Gobo wheel index & rotate: Yes
Gobo wheel: 7 + Open
Pan: 180°
Tilt: 360°
Continuous movement: Barrel, mirror disc, bi-directional
Power supply: 100–240 V AC 50/60 Hz
Power consumption: 175 W

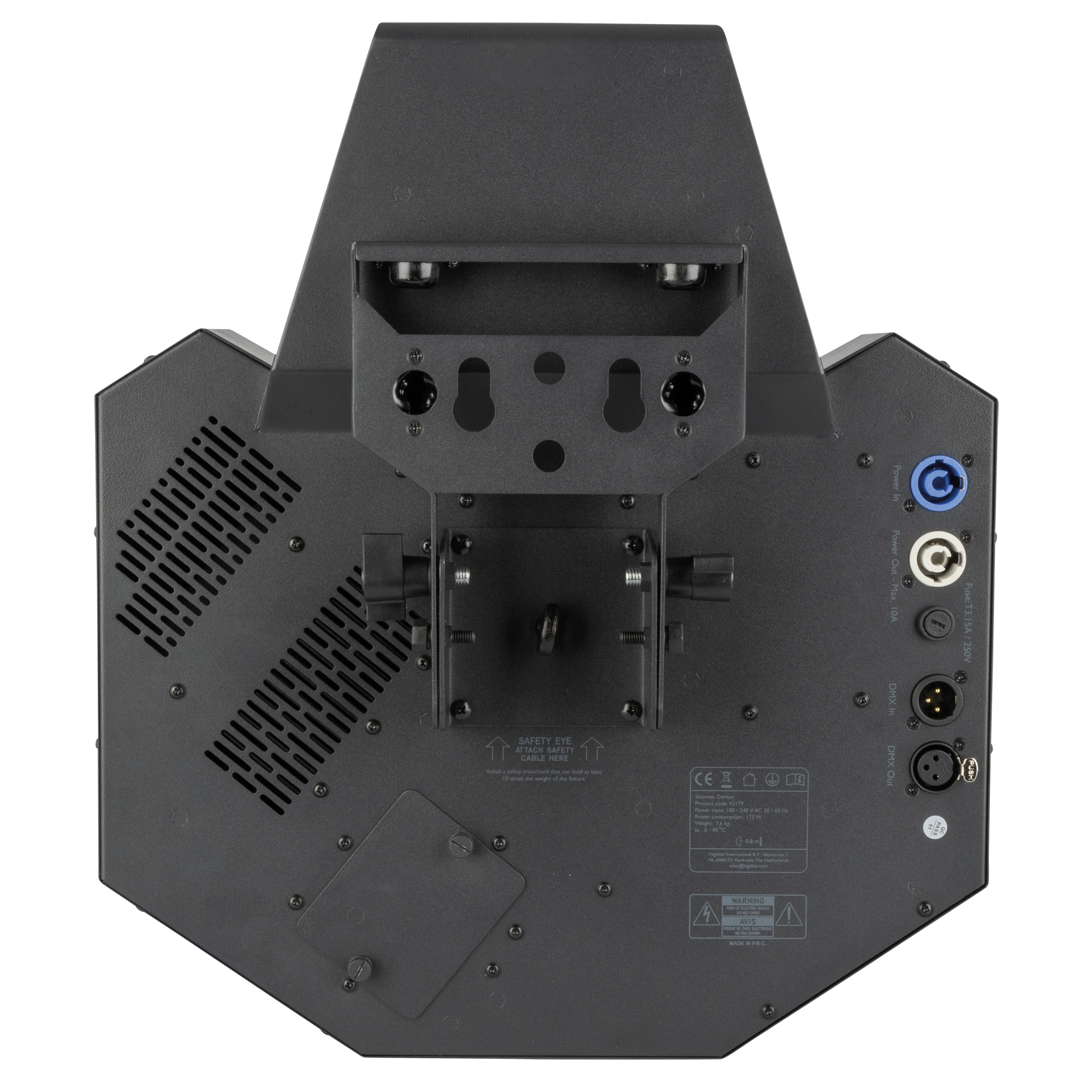

Power connector in: Power Pro Blue
Power connector out: Power Pro Grey
DMX connector: XLR 3P In/Out
Length: 451 mm
Width: 381 mm
Height: 205 mm
Weight: 7.6 kg
IP rating: IP20, indoor use only
Housing: Metal
Colour: Black
Cooling: Active
Mounting options: Clamp, Quick-Lock, Wall
Safety attachment: Yes
Maximum ambient temperature: 40 °C
Included cable: Power Pro Cable
Included rigging: 1 × Quick-Lock Bracket
