Showtec ACT Par 200W UV

200 W UV Par
3 & 5-pin DMX inputs and outputs
Manual dimmer knob
Strobe function

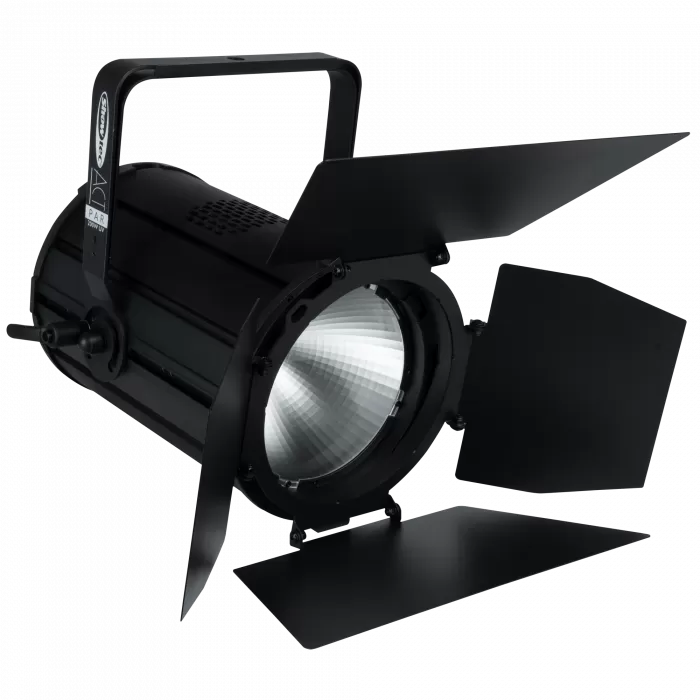

The Showtec ACT Par 200W UV is a 200-watt UV Par with a beam angle of 32°. It’s ideal for effect applications where fluorescence is key. A manual dimmer knob on the back allows easy manual control, while both 3-pin and 5-pin DMX inputs and outputs enable seamless integration into a variety of lighting setups. The ACT Par 200W UV also benefits from a strobe function. A 4-leaf barndoor for beam shaping is optional.

Specifications

Source Light Source Type
LED Light Source Quantity 1
Light Source Power 200 W
LED Colour Type UV
Luminous Flux (Total) 388 lm
Optical Beam Angle (Circular) 32 °
DMX Channels 1, 2
Protocols DMX, RDM
Display OLED
Dimmer 0-100 %
Strobe 0-20 Hz
Power Supply 120-250 V AC 50/60 Hz
Power Consumption 205 W
Fuse 3.15 A
Power Connector In Power Pro Blue
Power Connector Out Power Pro Grey
DMX Connector XLR 3P In/Out
DMX Connector In XLR 3P, XLR 5P
DMX Connector Out XLR 3P, XLR 5P
Width (mm) 258 mm
Height (mm) 304 mm
Depth (mm) 280 mm
Weight 4.5 kg
IP Rating IP20 (indoor use only)
Housing Aluminium
Colour Black
Cooling Convection
Mounting Options Bracket, Floor
Maximum Ambient Temperature 40 °C

Included Items
Included Cables Power Pro Cable
