Shanling UA1 Plus

High-performance Compact DAC/AMP

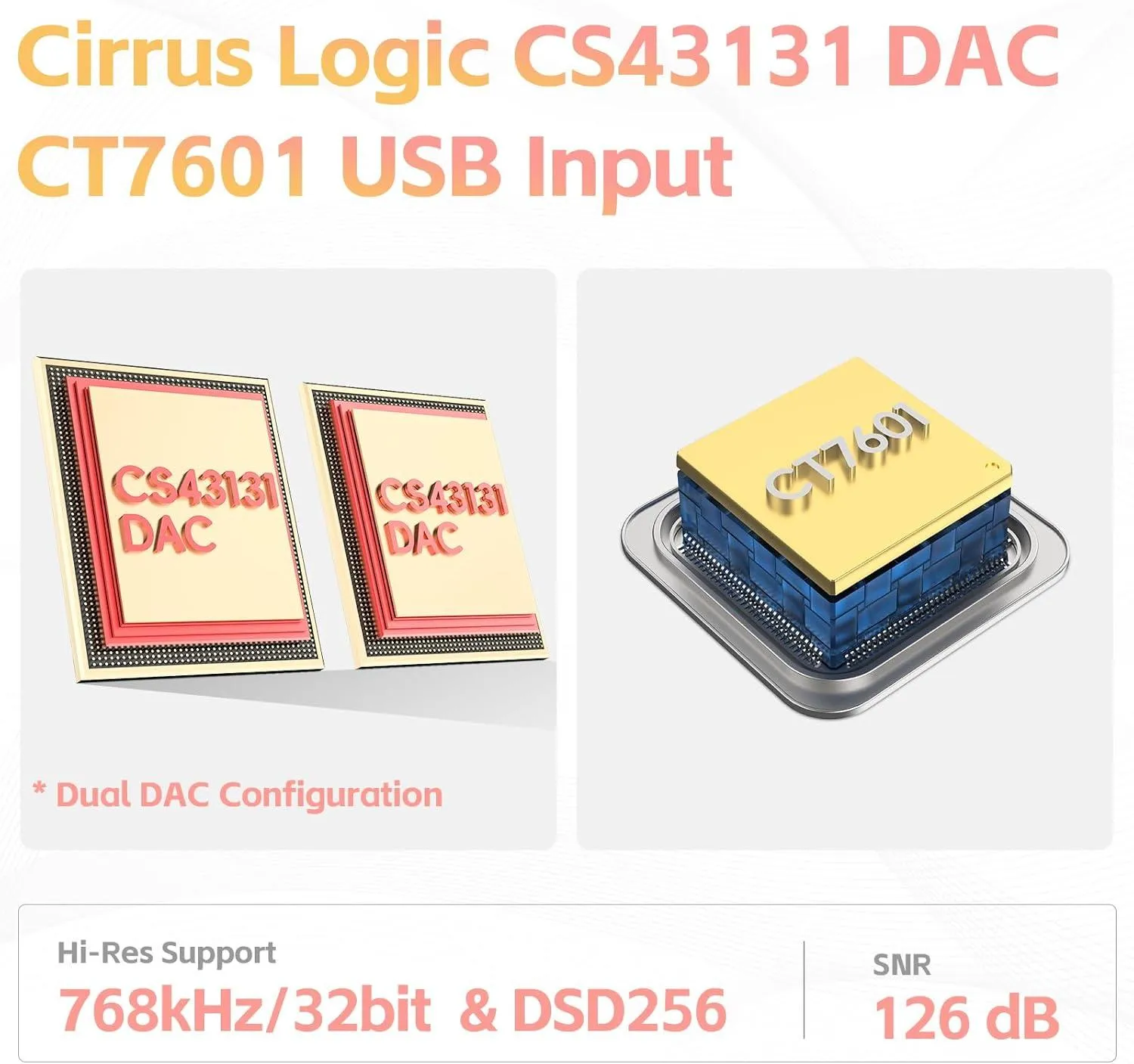

Shanling UA1 Plus is a compact DAC/AMP that delivers premium sound quality. Its high-performance Dual CS43131 DAC chipset, USB processor, and advanced technology ensure an exceptional listening experience.

In-House Developed Ultra-Conversion Black Technology
One standout feature of the UA1 Plus is its in-house developed ultra-conversion black technology. This innovative technology optimizes power consumption while maintaining high-resolution audio performance. Adjusting power draw based on various factors like bitrate, volume level, and impedance load, significantly reduces power drain from the connected source device.

Premium Sound with High-Resolution Decoding

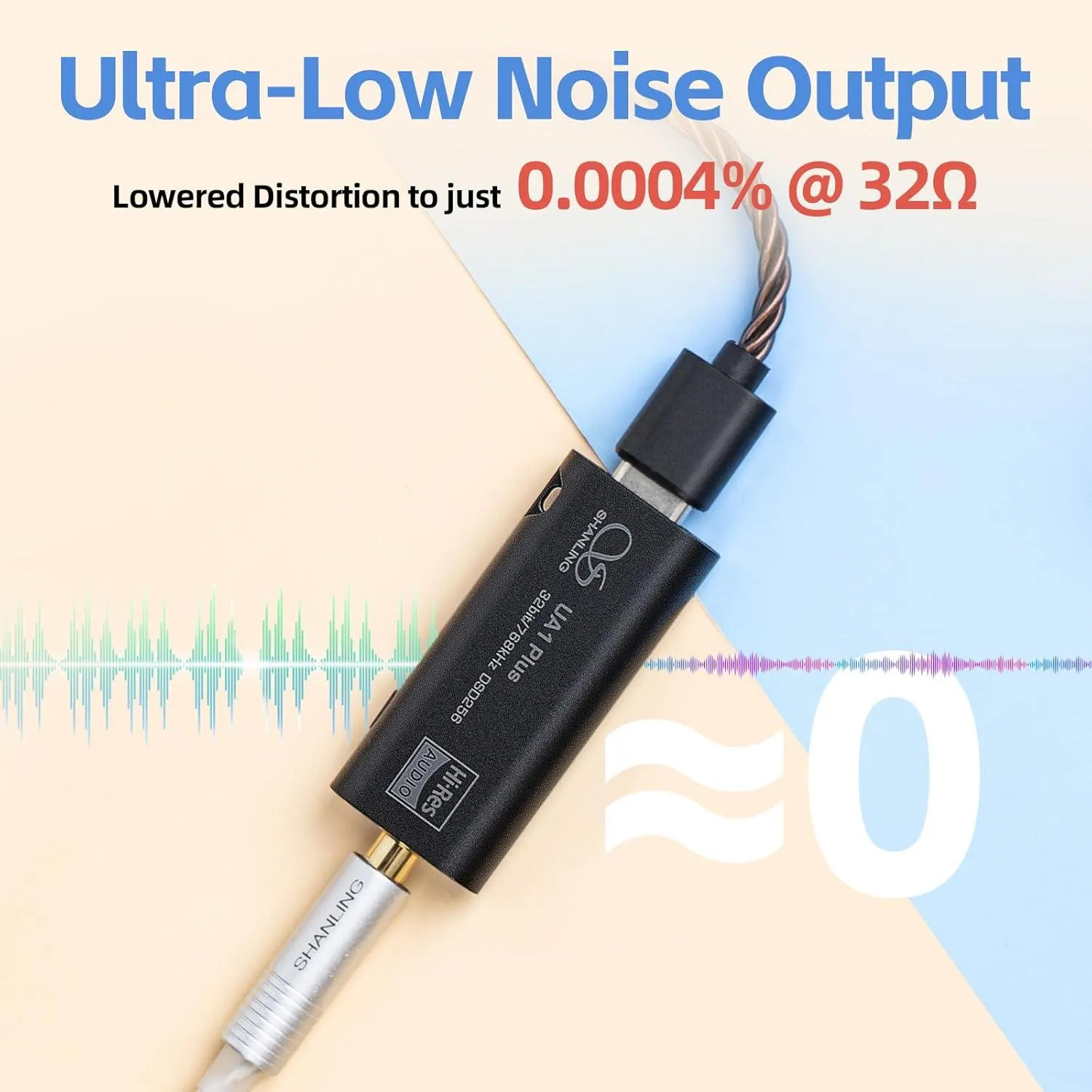

Despite its compact size, the UA1 Plus excels in supporting pure high-resolution audio signal decoding. Equipped with the CT7601 USB receiver chip, this DAC/AMP is capable of handling 32-Bit/768kHz PCM and native DSD512 audio signals, ensuring exceptional audio fidelity. Shanling's expertise in designing premium audio gear is evident as the UA1 Plus delivers clear sound reproduction with an almost negligible noise floor. This feature makes it an ideal companion for high-sensitivity IEMs, allowing you to experience pristine audio quality at its finest.

Enhanced Functionality and Intuitive Design

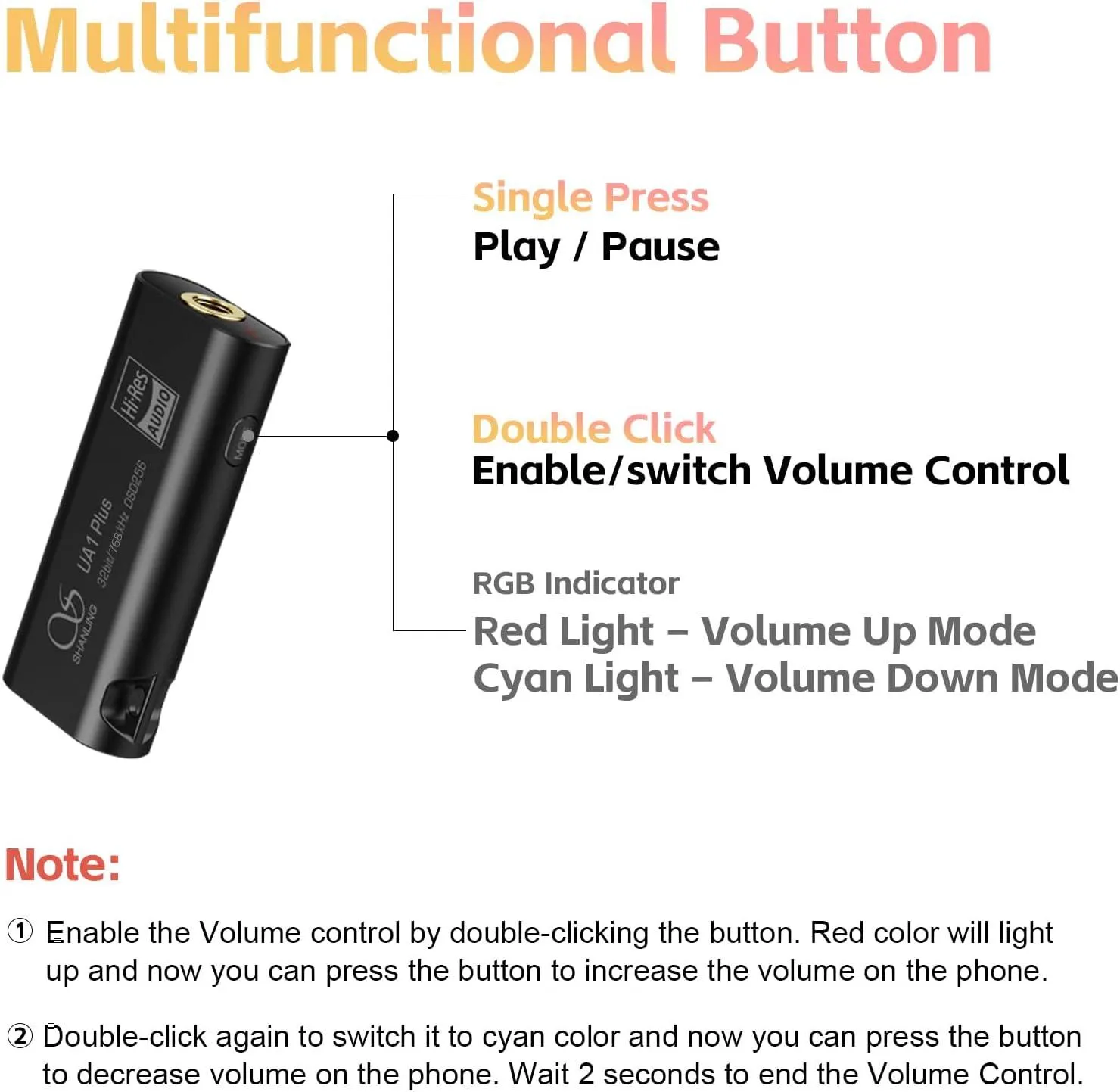

The UA1 Plus seamlessly integrates with the Shanling Eddict player app, providing complete control and enhancing your listening experience. The device also features an RGB bitrate indicator near the headphone port, illuminating in different colors to reflect the active file's bitrate.

Perfect Compatibility with Nintendo Switch
Furthermore, the UA1 Plus is perfect for Nintendo Switch users, thanks to its support for UAC2.0/UAC1.0 easy switching. By switching to UAC1.0 mode, you can effortlessly connect the device to your Nintendo Switch using the convenient one-key mode button.

Inside the Box
1 x Shanling UA1 Plus
User Manual

Technical Details
Output power
16V@32Ω(80mW@32Ω)
THD+N
0.0004%@32Ω(A-Weight@1.6V)
Dynamic Range
125dB @32Ω(A-Weight)
Frequency Response
20Hz-40kHz(+0.5dB)
SNR
126dB@32Ω(A-Weight)
Channel Separation
71dB@32Ω
Output Impedance
<0.52
Size
40mmx17.7mmx8.2mm
