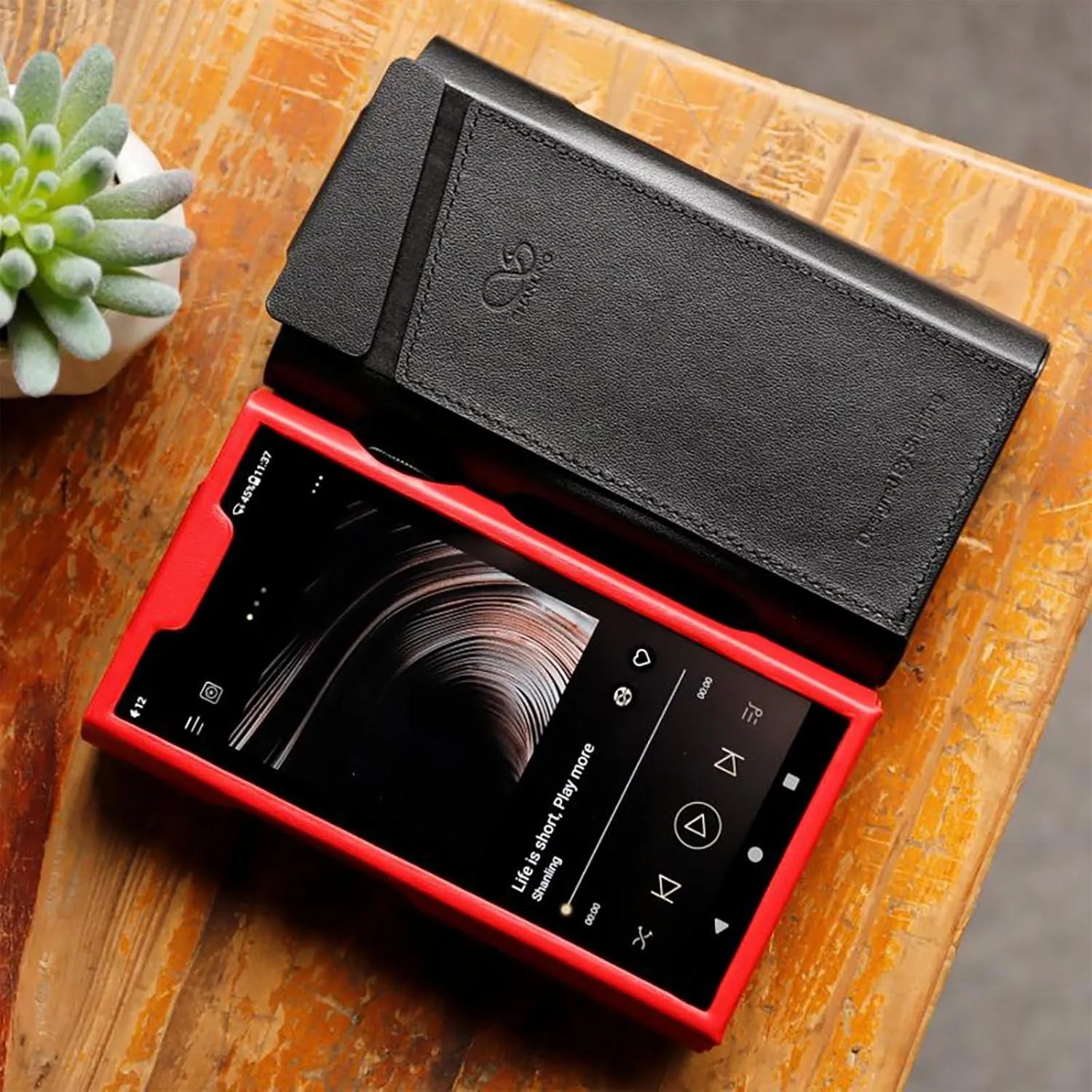

Shanling M8T plus Case

Android Portable Player
Flagship-Level Audio Technology
Advanced Sound Engineering
Android 13 - Open System for Hi-Fi Apps
Long-Lasting Power and Fast Charging
Ultra-High-Resolution Playback & Bluetooth Connectivity
Qualcomm Snapdragon 665 CPU
Sleek, Heritage-Inspired Design

Experience Hi-Fi Excellence
Experience Hi-Fi excellence with the M8T, a true flagship-level portable player that combines cutting-edge technology with the art of tube sound. Featuring two JAN6418 tubes, dual AKM AK4499EX DACs, and two AK4191 modulators, the M8T offers extraordinary sound performance, blending sophisticated audio engineering with a refined design that pays homage to Shanling's legacy. The result is a portable player that delivers exceptional clarity, precision, and depth across all audio frequencies.

Flagship-Level Audio Technology

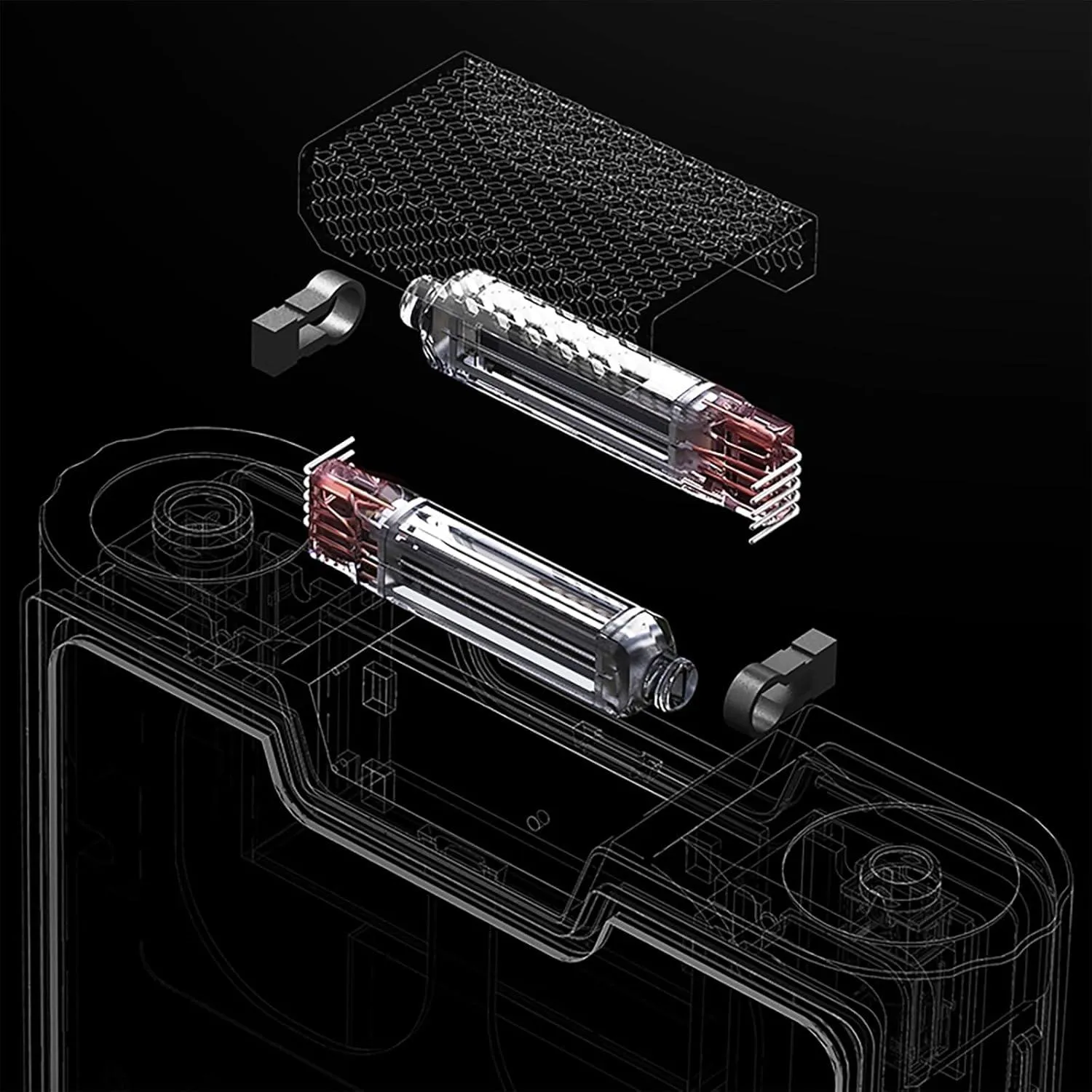

The M8T is equipped with dual JAN6418 tubes, marking the first time Shanling has integrated low-voltage, power-efficient tubes into a portable player. These tubes are suspended in a custom-designed anti-shock structure, which eliminates microphonics while adding a warm, captivating charm to the sound. In addition, the dual AKM AK4499EX DACs paired with AK4191 modulators provide superior sound clarity, ensuring that audio is reproduced with remarkable cleanliness and precision. The M8T also offers three distinct output modes: Transistor, Triode, and Ultra-Linear, allowing users to tailor the sound to their personal preferences. With a high-power output of up to 1125mW at 32Ω, the M8T can effortlessly drive even the most demanding headphones, delivering a rich, transparent listening experience.

Advanced Sound Engineering
Shanling has perfected the audio engineering behind the M8T, with an in-house developed I/V stage featuring ADI ADA45253 high-speed, low-noise amplifiers optimized for exceptional performance. The low-pass filter, using OPA1612 combined with Panasonic capacitors and thin-film resistors, minimizes distortion and ensures smooth I/V conversion. A custom FPGA solution and upgraded Japanese KDs active crystal oscillators at 90.3168MHz and 98.304MHz offer incredibly accurate sound reproduction, delivering unparalleled clarity and depth across the frequency spectrum.

Android 13 - Open System for Hi-Fi Apps
The M8T runs on the newly upgraded Android 13 system, ensuring long-term compatibility with future updates and a wide range of music apps. Shanling’s Android Global Lossless Output (AGLO) ensures that all audio data is processed in a Hi-Fi quality format, maintaining the integrity of the sound. For added convenience, the M8T supports DLNA and AirPlay, allowing users to stream music wirelessly, while also offering remote control via the Eddict Player app on Android and iOS devices. Additionally, the M8T includes over-the-air updates, ensuring that the player remains up-to-date with the latest features and improvements.

Long-Lasting Power and Fast Charging
The M8T is powered by a massive 8350 mAh battery, providing up to 15.5 hours of playback on single-ended outputs and 13 hours on balanced outputs. It also supports Quick Charge 3.0 and Power Delivery 2.0, offering 18W fast charging for rapid power-up, so you can spend more time listening to your music and less time waiting for a charge. The player features a full-power amplifier with three levels of gain and precise volume control, making it ideal for pairing with a wide range of headphones, from ultra-sensitive IEMs to full-sized planar headphones.

Ultra-High-Resolution Playback & Bluetooth Connectivity
The M8T supports local playback of high-resolution audio files, including PCM up to 768kHz and DSD1024, ensuring you get the most out of your Hi-Res collection. The XMOS XU316 USB input allows the M8T to function as a Hi-Fi USB DAC when connected to a computer, with support for PCM 768kHz and DSD512. Additionally, the M8T can be used as a Bluetooth DAC/AMP with LDAC, SBC, and AAC support, enabling high-quality wireless audio transmission for all your Bluetooth devices.

Qualcomm Snapdragon 665 CPU
The M8T is powered by the Qualcomm Snapdragon 665 octa-core processor with an Adreno 610 GPU, ensuring smooth and lag-free performance for all applications and streaming services. This powerful hardware, combined with an optimized Android 13 system, guarantees a seamless user experience, whether you're listening to music, browsing apps, or enjoying video content. The Qualcomm WCN3980 wireless module ensures fast and stable internet connections, supporting both 2.4G and 5G Wi-Fi and MIMO technology.

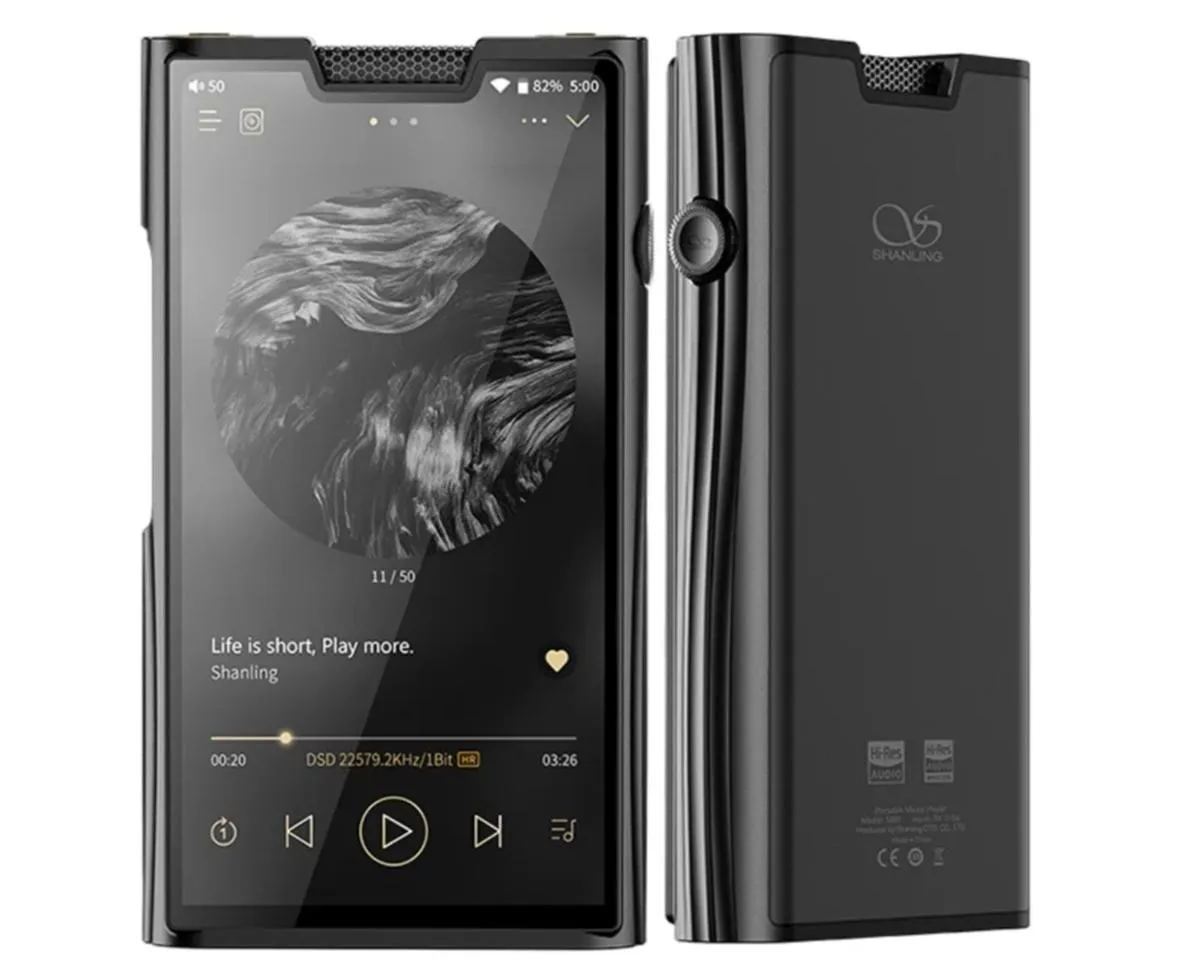

Sleek, Heritage-Inspired Design

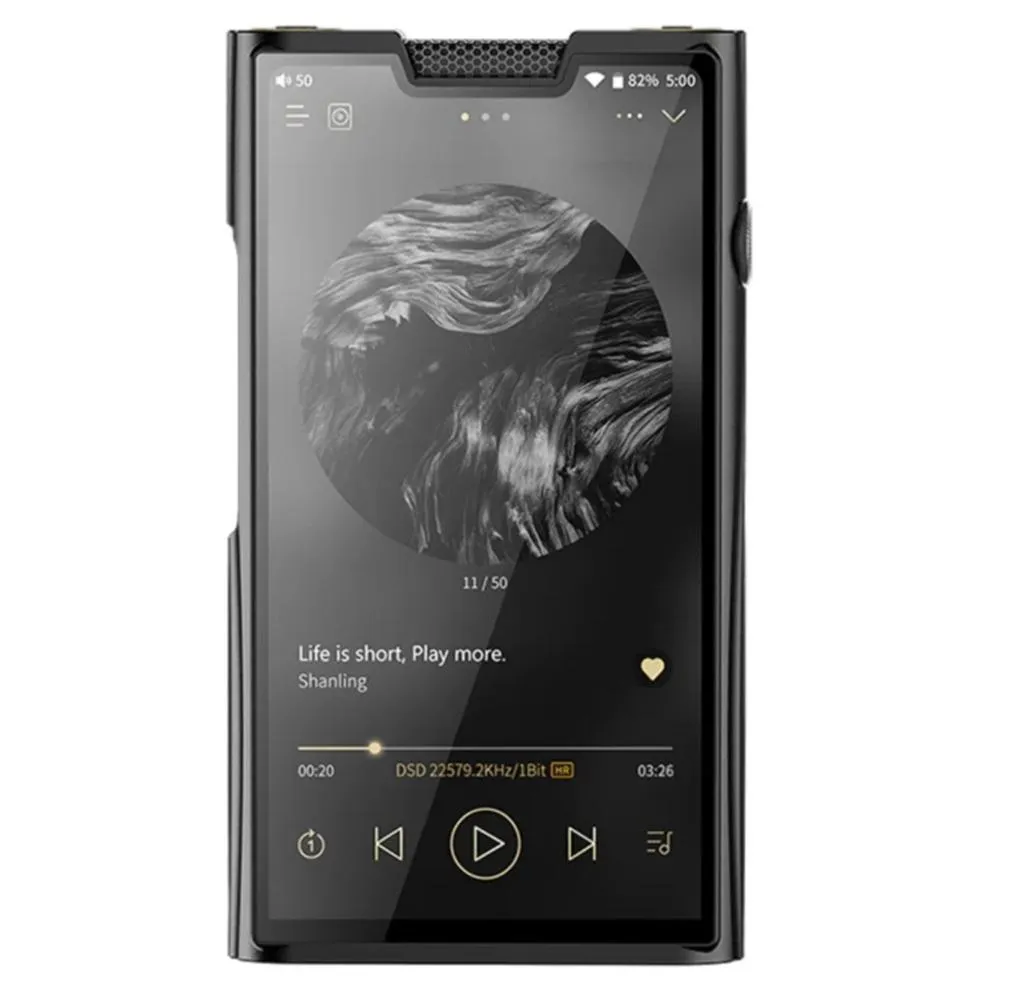

Drawing inspiration from Shanling’s heritage models, the M8T features a stunning design carved from a single piece of aircraft-grade aluminum, with an intricate wave pattern on the sides. The sleek, deep-black body not only looks elegant and modern but is also durable and ergonomic. The M8T combines Shanling’s long-standing commitment to design excellence with cutting-edge technology, creating a beautiful and high-performance portable player that feels as premium as it sounds.

Technical Details
Dimensions
147 x 82 x 22 mm
Weight
383g
Display
6.0-inch 1080x2160 Sharp
Operating System
Open Android 13
Battery Capacity
8350mAh
Battery Life
15.5h (Single-Ended), 13h (Balanced), 96h (Bluetooth)
Power & Data Connector
USB-C
Memory
6GB LPDDR4X RAM + 128GB UFS 2.1 ROM + MicroSD Card Slot (Up to 2TB)
Bluetooth Version
5.0
Wi-Fi Standards
2.4G/5G
Audio Formats Supported
DSD: ".iso", ".dsf", ".dff"; Other Formats: ISO, DXD, APE, FLAC, WAV, AIFF, AIF, DTS, MP3, WMA, AAC, OGG, ALAC, MP2, M4A, AC3, M3U, M3U8, OPUS
Hi-Res Audio Support
PCM: Up to 768kHz/32bit; DSD: Up to DSD 1024
USB DAC Support
PCM 768kHz/32bit, DSD 512
DAC Setup
2x AKM AK4499EX DACs; 2x AKM AK4191EQ Modulators
Bluetooth Codec Support
Transmission: LDAC, SBC, AAC; Reception: LDAC, SBC, AAC
3.5mm Output (Transistor) - Output Power
Low Gain: 1V@32Ω (31mW); Medium Gain: 2V@32Ω (125mW); High Gain: 4V@32Ω (500mW)
Frequency Response (3.5mm Transistor)
20Hz - 40kHz (0.2dB)
THD+N (3.5mm Transistor)
0.0007%
Channel Separation (3.5mm Transistor)
75dB@32Ω
Dynamic Range (3.5mm Transistor)
124dB
Signal-to-Noise Ratio (3.5mm Transistor)
124dB
Noise Floor (3.5mm Transistor)
>117dB (Low Gain)
Output Impedance (3.5mm Transistor)
<1Ω
3.5mm Output (Tube) - Output Power
3.7V@32Ω (420mW)
Frequency Response (3.5mm Tube)
20Hz - 40kHz (0.2dB)
Signal-to-Noise Ratio (3.5mm Tube)
120dB
4.4mm Output (Transistor) - Output Power
Low Gain: 2V@32Ω (125mW); Medium Gain: 4V@32Ω (500mW); High Gain: 6V@32Ω (1125mW)
Frequency Response (4.4mm Transistor)
20Hz - 40kHz (-0.2dB)
THD+N (4.4mm Transistor)
0.0005%
Channel Separation (4.4mm Transistor)
115dB@32Ω
Dynamic Range (4.4mm Transistor)
127dB
Signal-to-Noise Ratio (4.4mm Transistor)
127dB
Noise Floor (4.4mm Transistor)
>114dB (Low Gain)
Output Impedance (4.4mm Transistor)
<1Ω
4.4mm Output (Tube) - Output Power
5.5V@32Ω (950mW)
Frequency Response (4.4mm Tube)
20Hz - 40kHz (-0.2dB)
Signal-to-Noise Ratio (4.4mm Tube)
123dB
Headphone Outputs
3.5mm Single-Ended, 4.4mm Balanced
Inside the Box
1 x Shanling M8T
User Manual
