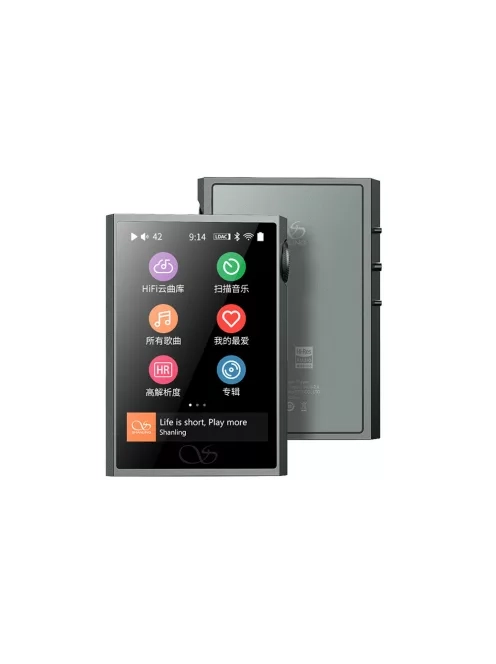

Shanling M1 Plus Grey

Shanling's M1 Plus is a technical and aesthetic evolution of the M1S high-fidelity digital music player. This Plus version benefits from an improved digital/analogue conversion stage now based on an ESS ES9069Q chip, a new amplification stage and a Bluetooth receiver updated to version 5.2. Its appearance has also been modernised to make it as ergonomic as possible, a real distinguishing feature of the M1. As a result, the M1 Plus is the ideal companion, whether you're on the move or at home, for listening sessions of incredible quality.

Shanling M1 Plus : A DAP that fits in the palm of your hand
The first thing that stands out about the Shanling M1 Plus is its compact size. Designed to take you wherever you go without weighing you down, the DAP measures just 86x61x17mm. In terms of weight, the M1 Plus weighs just 116g. So it's easy to forget, so you can enjoy your music to the full.

Shanling has made no concessions to ergonomics, however, and has integrated a magnificent 3.2" 480x320px high-definition touch screen. This gives you easy access to your music and all the available settings. The screen is housed behind curved tempered glass and the components are protected by a superb 100% aluminium CNC-machined case.

Shanling M1 Plus : Fast, intuitive navigation
Like its predecessor, the Shanling M1 Plus is based on the Mtouch operating system, providing access to a wide range of useful functions. It's powered by an Ingenic X2000 processor, ensuring smooth browsing in all circumstances.

Shanling M1 Plus : Technology at the service of sound
In terms of sound, the M1 Plus incorporates an ESS ES9069Q DAC. These provide seamless, high-quality digital/analogue conversion up to PCM 32 bit / 768kHz and DSD512. This converter is combined with a high-performance amplification section with two SGM8262 amplifier chips delivering output power of 195mW @ 32 Ohm (Single-ended 3.5mm jack) and 660mW @ 32 Ohm (Balanced 4.4mm jack). This combination enables this small DAP to offer an SNR of 122dB and a distortion rate of 0.0007%.

Shanling M1 Plus : Boundless connectivity
While the Shanling M1 Plus naturally has a 3.5mm jack for conventional connection to your headphones, it also offers Bluetooth 5.2 connectivity for even greater convenience. Bluetooth connectivity with Sony LDAC and Qualcomm aptX technologies. The first of these technologies, LDAC, enables Bluetooth users to enjoy Hi-Res Audio files at up to 24bit 96kHz 4.5Mbps, where conventional Bluetooth would only allow 16bit 44.1Hz compressed audio. The second technology, aptX, enables transmission with less latency and greater stability, to deliver a clean signal.

Furthermore, the M1 Plus features bi-directional Bluetooth 5.2. So, while it can transmit to a speaker or headphones, it can also be used as a receiver, to take advantage of its amplification and DAC from a third-party source.

M1 Plus can connect to a WiFi network to use AirPlay and DLNA technologies. A 4.4mm balanced jack is also available for exceptional quality headphone listening.

Shanling M1 Plus : Bi-directional USB-C
In the same vein, this player also features a bi-directional USB-C port. Just like Bluetooth, this port is capable of receiving or sending audio data. Ideal for taking advantage of the device's audio performance.

General
Dimensions 86 x 61 x 17 mm
Weight 116g
Color Silver
Package 1x Shanling M1 Plus
1x USB-A to USB-C cable
1x Screen protection

Specifications
Product type Digital music player (DAP)
DAC Chips ESS ES9069Q
AOP Chips 2x SGM8262
Processor Ingenic X2000
Inputs Bluetooth 5.2
1x USB-C
1x Slot Micro SD (up to 2TB)
Outputs Bluetooth 5.2
Wifi
1x Jack 3.5mm
1x Jack 4.4mm balanced
1x USB-C
SyncLink Via the Eddict Player application
Touch screen 3.2" 320x480px
Battery 2100mAh
Autonomy 12.5h
Supported Bluetooth codecs SBC, AAC, aptX, aptx HD, LDAC
Supported Wifi protocols Airplay DLNA, OTA updates
Supported sampling rates PCM up to 32bit 768kHz
DSD up to DSD512
Output power Single-ended output : 195mW @ 32
Balanced output : 660mW @ 32
Total harmonic distortion (THD+N) 0.0007%
Cross channels Single-ended output : 74dB
Balanced output : 100dB
Signal-to-noise ratio (SNR) 122dB
Output impedance Single-ended output : 0.6Ω
Balanced output : 1.2Ω
