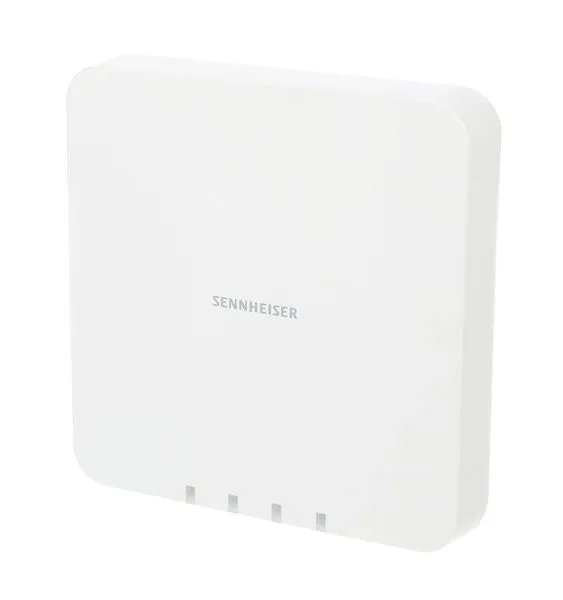

Sennheiser SL MCR 4 DW-3

Two or four channel receiver for SpeechLine Digital Wireless

The SpeechLine Multi-Channel Receiver with its 2 or 4 channels is the perfect addition to the SpeechLine series. Thanks to its unobtrusive design, the Multi-Channel Receiver can be installed quickly and easily in any room, whether on the wall or ceiling. The device can be operated with a single network cable, thanks to PoE and Dante. Complex analog audio cabling is a thing of the past. The Multi-Channel Receiver also offers a convenient solution for existing installations. Thanks to an integrated auto mixer and the analog mix output, all audio channels can be used simply as a sum signal. The audio mix is also available digitally via Dante, which allows an extension of the existing setup without exchanging the DSP. Due to the bidirectional communication between receiver and transmitter, all settings of the mobile transmitters can easily be made in the Sennheiser Control Cockpit. The receiver's automatic frequency management eliminates the need for manual frequency settings and the automatic interference management guarantees maximum transmission reliability. The user-friendly pairing function ensures a reliable connection between transmitter and receiver. Network integration also makes it possible to remotely control and monitor the receiver via a media control system (e.g. AMX, Crestron, Q-SYS Control). Due to the integrated antennas, a complex antenna installation is no longer necessary.

Features
Automatic Gain Control
Automatic Frequency management
AES 256 encryption
2-port Dante
PoE
Analog Mix Output
One status LED per Link
Remote control via Control Cockpit or media control
Wall, ceiling or mic stand mounting
Integrated Automixer
DDM Ready

Top Specs
Color White
Dimensions 180 x 180 x 45 mm (incl. wallmount)
Weight (g) 650 g (incl. wallmount)
Audio output One 3-pin socket (suitable for Phoenix Contact MCVW 1.5-3-ST-3.81) Two Dante™ Digital Audio Network sockets (RJ-45)
Dante™ Primary and Secondary
Latency (ms) 23 ms
Power consumption (Amp) < 15 W
