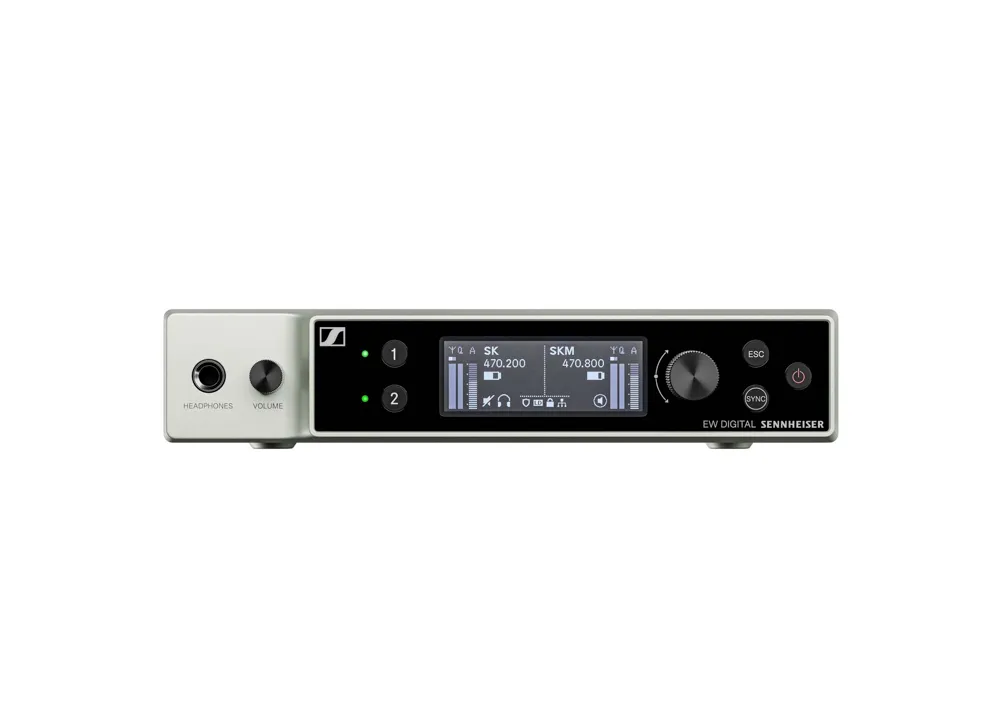

Sennheiser EW-DX EM 2 (U1/5)

The Sennheiser EW-DX EM 2 is a two-channel receiver for the digital Evolution Wireless DX system. This half-rack unit can be controlled via the bright OLED display, via WSM (Wireless System Manager) or via the Smart Assist App and comes complete with a GA-3 rack mount kit.
Specifications
Product features
19-inch rack size1U half-rack
Automatic frequency search functionyes
Battery life (approx.)not applicable
Energy sourceAC
Frequency bandSennheiser Q1-9 (470.2 - 550 MHz)
Built-in equaliserno
Channel21 (470 - 478 MHz), 22 (478 - 486 MHz), 23 (486 - 494 MHz), 24 (494 - 502 MHz), 25 (502 - 510 MHz), 26 (510 - 518 MHz), 27 (518 - 526 MHz), 28 (526 - 534 MHz), 29 (534 - 542 MHz), 30 (542 - 550 MHz)
Switchable frequenciesyes
Type of frequency band470 - 499 MHz, 500 - 599 MHz
Output connectorjack (6.3 mm), XLR (3-pin)
Volume controlyes
Power adapterungrounded flat Europlug
Weight and dimensions including packaging
Weight (incl. packaging)300 gr
Dimensions (incl. packaging)40.5 x 35.0 x 7.3 cm
Product specifications
Sennheiser EW-DX EM 2
2-channel receiver
frequency band: Q1-9 (470.2 - 550 MHz)
no noise or drop outs thanks to digital transmission
easy control via EW-D Smart Assist App and Wireless System Manager
network support thanks to the Sennheiser Control Cockpit and WSM
AES encryption
134dB dynamic range
box contents:EW-DX EM 2 two-channel receiver with two antennas
power supply
GA 3 rack mount kit
four rubber feet
