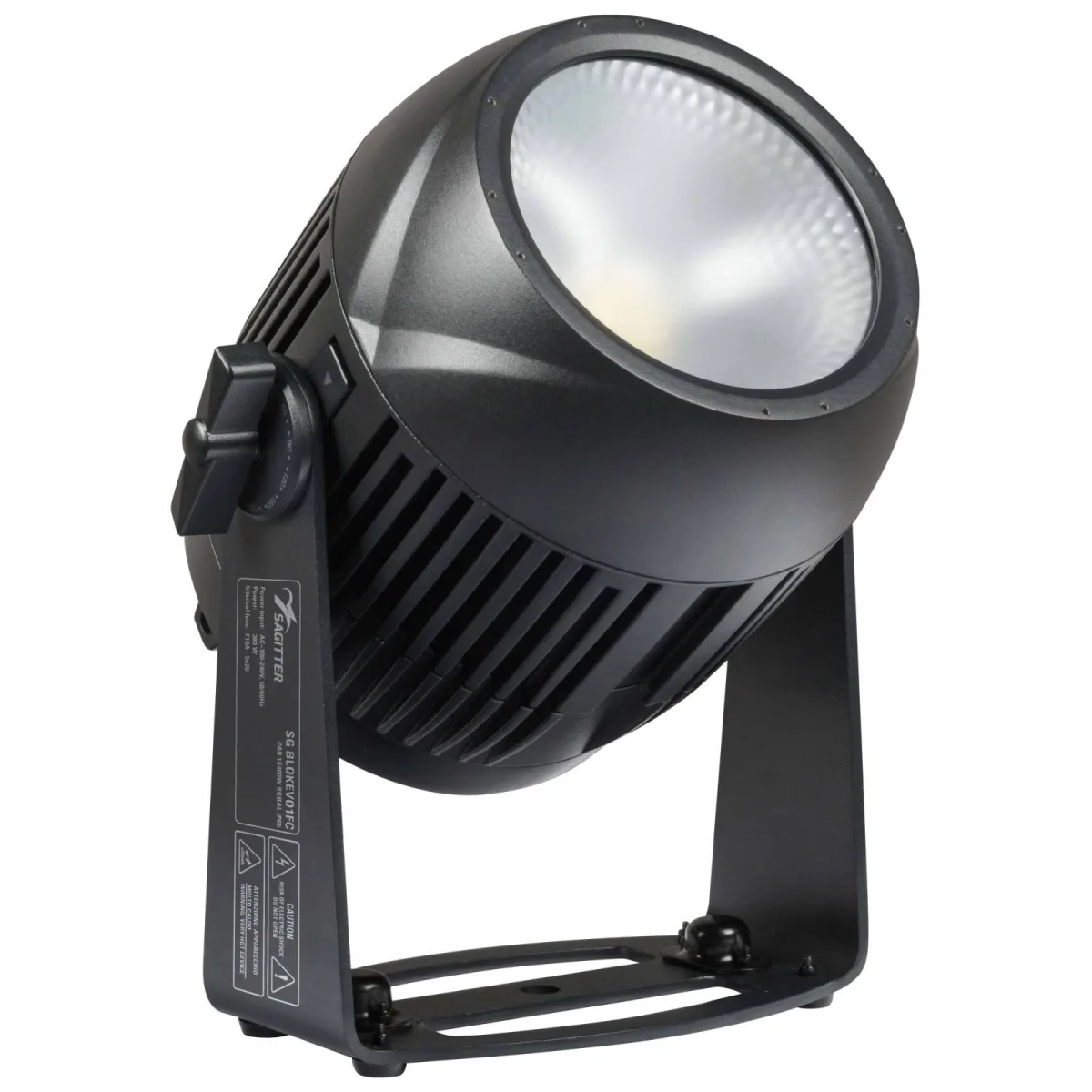

Sagitter Blok EVO 1FC

Light source 1 × 400 W RGBAL COB LED
CRI≥84Ra
Optic system Beam angle: 80° without lenses - 33° Fresnel lens - 63° frost lens
Luminous flux of FULL ON: 460 lx @ 5m without lenses
Luminous flux of FULL ON: 1182 lx @ 5m with 33° Fresnel lens
Luminous flux of FULL ON: 318 lux @ 5m with 63° frost lens
Color system RGBAL LEDs
Effects 16-bit dimmer
Dimmer curves: 4 selectable dimming curves available
Halogen dimming speed emulation
Red Shift function (tungsten dim-to-warm emulation)
High speed electronic strobe, pulse, single sectors FX with adjustable speed, duration and rate
Virtual color wheel with 109 numeric gel filters presets
CTC from 1750K to 20000K
Selectable PWM: adjustable from 1000 Hz to 25 KHz
Emergency mode: editable dimmer level, color or color temperature when DMX signal is lost
Control and programming 8 x DMX channel modes
Protocol USITT DMX 512, RDM
Master/Slave mode
Structure and cabinet Die cast aluminium housing
LCD graphic display
Quick-release anchor points, on-board mechanics for stacking multiple devices
“Light up” positioning with adjustable angle
Mounting points: 2 pairs of 1/4-turn locks omega bracket
IP rating: IP65
DMX 5-poles XLR IN/OUT IP65 connectors
Low-noise controlled cooling system
Power supply Input Voltage: AC~100-240V, 50/60 Hz
Switching power supply unit
Max power: 430W @ 230VAC
Seetronic X Series IP65 Power Connectors IN/OUT
Power supply cable 1,0 mt included
Weight and dimensions Net weight: 4,5 kg
Dimensions: 190x190x223 mm (without bracket)
