Roland SH-01A: Boutique SH-101

FOUR TIMES THE SOUNDS IN A FRACTION OF THE SIZE
The SH-01A is a meticulous reproduction of the iconic Roland SH-101, one of the most popular classic synthesizers of all time. Our Analog Circuit Behavior (ACB) technology reproduces the SH-101’s legendary sounds by faithfully recreating the actual behavior of the original analog circuits, right down to the fine details and odd quirks that have endeared the synth to musicians and producers for decades. The SH-01A builds on the great sounds and creative immediacy of the original, now in the popular Roland Boutique format—offering exciting new polyphonic capabilities, inspiring new performance features, and a level of authenticity that could only come from Roland.

Step Sequencer100 steps
4 notes (Polyphonic)ArpeggioDOWN/U&D/UP
1 OCT/2 OCTDisplay7 segments, 4 characters (LED)ConnectorsCV OUT jack: mono miniature phone type
GATE OUT jack: mono miniature phone type
EXT CLK IN jack: mono miniature phone type
PHONES jack: stereo miniature phone type
OUTPUT jack: stereo miniature phone type
MIX IN jack: stereo miniature phone type
MIDI (IN, OUT) connectors
USB port: Micro-B type (Audio, MIDI)Power SupplyRechargeable Ni-MH battery (AA, HR6) x 4
Alkaline battery (AA, LR6) x 4
USB bus powerCurrent Draw500 mA (USB bus power)Expected battery life under continuous useRechargeable Ni-MH battery: Approx. 6 hours
* This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.AccessoriesOwner's Manual
Leaflet "USING THE UNIT SAFELY"

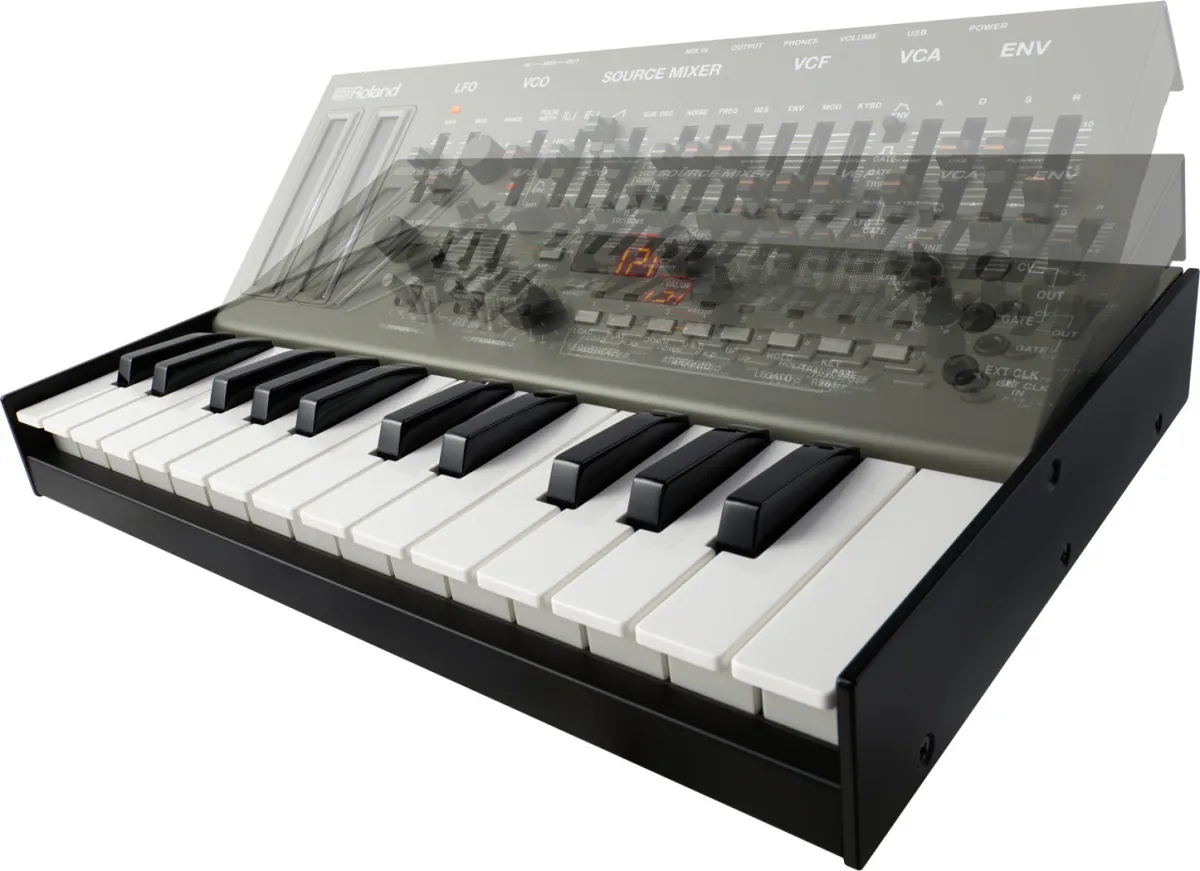

Alkaline battery (AA, LR6) x 4Options (sold separately)Keyboard Unit: K-25m
Boutique Dock: DK-01SIZE AND WEIGHTWidth300 mm
11-13/16 inchesDepth128 mm
5-1/16 inchesHeight46 mm
1-13/16 inchesWeight (including batteries)965 g
2 lbs 3 oz
