Roland JC-40 Jazz Chorus – Stereo Guitar Amplifier
The Roland JC-40 Jazz Chorus is a compact combo amplifier featuring the classic JC clean tone and signature stereo chorus effect. The amplifier has two independent power amps and two 10-inch speakers for powerful stereo sound. The stereo input enables use with stereo effects, guitar synths, amp modeling and multi-effects.

Features
40 W stereo amplifier

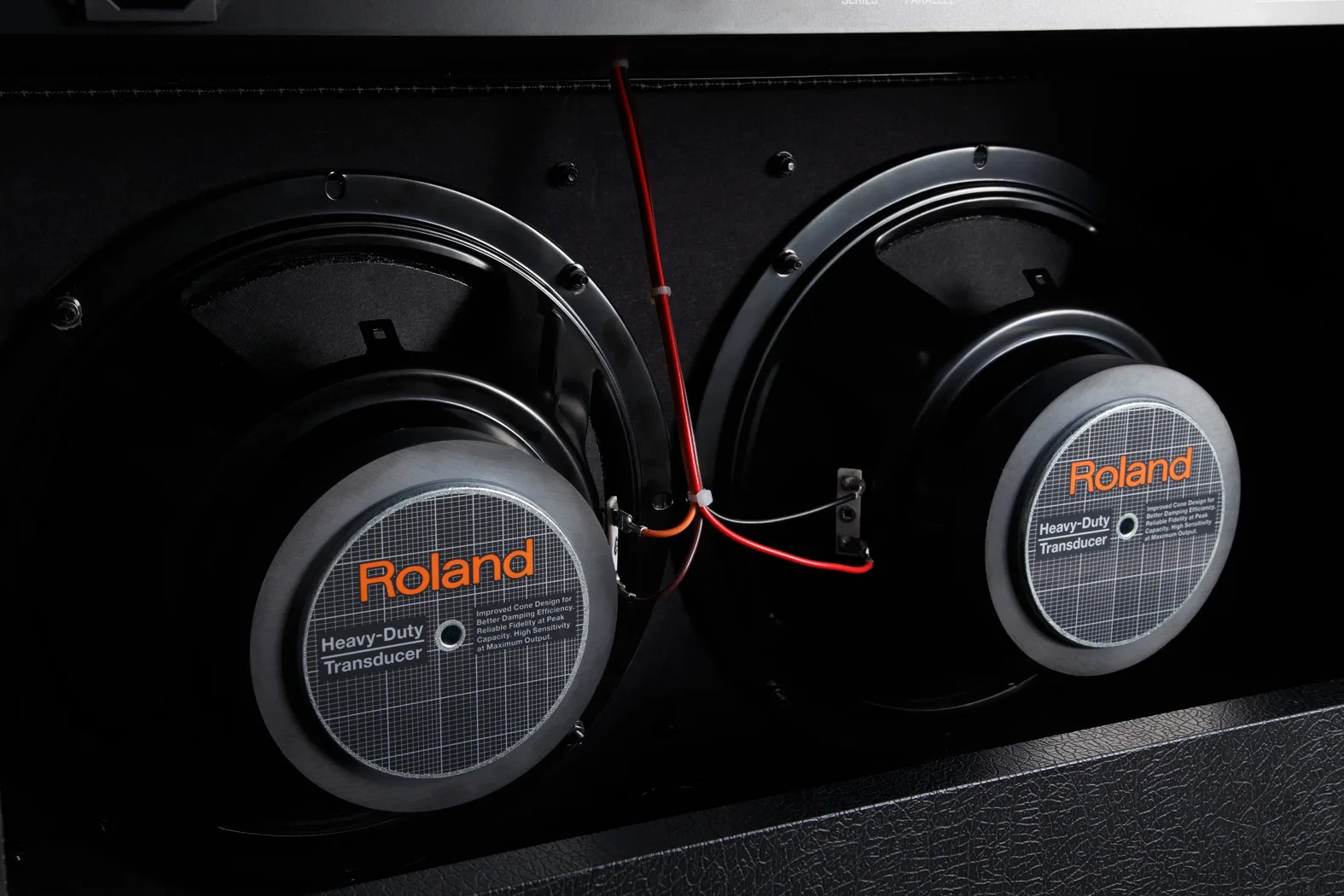

Two 10-inch speakers
Classic Roland JC clean tone
Dimensional Space Chorus with fixed or manual modes
Built-in vibrato
Built-in distortion
Built-in reverb
Stereo input for stereo effects pedals, guitar synths, amp modeling and multi-effects
Stereo effects loop with serial or parallel operation
Mono or stereo Line Out
Headphone output
Footswitch connections for chorus/vibrato, reverb and distortion

Controls and Connections
POWER switch
BRI (Bright) switch
VOLUME
TREBLE
MIDDLE
BASS
DISTORTION
REVERB
SPEED
DEPTH
VIB/CHORUS switch
EFFECT LOOP switch
INPUT L/MONO, R
LINE OUT L/MONO, R
PHONES
FOOT SWITCH for CHORUS VIBRATO, REVERB and DISTORTION
EFFECT LOOP SEND
EFFECT LOOP RETURN L/MONO, R
AC IN

Specifications
Rated power output: 40 W
Speakers: 25 cm (10 inches) x 2
Nominal input level INPUT L/MONO, R: -10 dBu (1 M ohm)
Nominal input level EFFECT RETURN L/MONO, R: -10 dBu (22 k ohms)
Nominal input level EFFECT RETURN L/MONO: -10 dBu (11 k ohms)
Power consumption: 43 W
Width: 592 mm
Depth: 251 mm
Height: 436 mm
Weight: 15.8 kg
Accessories: Owner's manual, power cord
Options: Footswitch BOSS FS-5L, FS-6, FS-7
Amplifier stand: BAS-1

The headphone output does not produce true stereo sound. It is designed to represent the natural experience of hearing the amplifier's stereo speaker system from a centered playing position in a room.
