Rogers LS3/5a Amazaque

If the cabinet is not tuned properly, the sound reproduced will never be correct.

· Critically damped 12mm Russian birch ply enclosure
· Hardwood beech fillets
· Balanced real wood veneers
· 12mm birch ply baffle
· Beautiful black Tygan grille
· Walnut, Rosewood, and Olive finishes as standard
· Other finishes to special order, please ask

Measurements only take you part of the way, because you cannot measure emotion
· Single layer one ounce copper track fiberglass PCB
· M6 laminated transformer cored crossover inductors
· M6 laminated transformer cored auto transformer
(for tweeter level matching)
· High voltage Metalised capacitors
· All components hand soldered with silver solder

Sometimes what you cannot see, is just as important as what you can
· Mylar dome tweeter with kraft nomex voice coil former
· Doped Bextrene cone bass unit
· Hand-finished and painstakingly pair matched in the UK at Rogers
· Every pair’s measurements are recorded and stored against its serial no*
*allowing for easy driver replacement in the future if required

The smallest of details don’t make a small difference, they make all the difference
· Single wire, 4mm multi-contact sockets
· Sockets are silver plated for the best connection
· Choice of beautiful real-wood book-matched veneers
· Finishes: rosewood, walnut, amazaque and olive
· Handmade by master-craftsman

Rogers LS3/5A Classic Specifications
· System type: Two way infinite baffle
· Frequency response: 80Hz-20KHz +/-3dB
· Nominal Impedance: 15 Ohms
· Bass/midrange: 110mm Bextrene cone
· Tweeter: 19mm Mylar dome
· Crossover frequency: 3KHz
· Sensitivity: 82.5dB/W/M
· Finish: Walnut, Rosewood and Olive
· Grille: Black Tygan
· Dimensions: 305 x 190 x 165mm (HxWxD)
· Weight: 4.9Kg (each speaker)
· Recommended amplifier range 30-80 Watts
· BBC-licensed LS3/5A

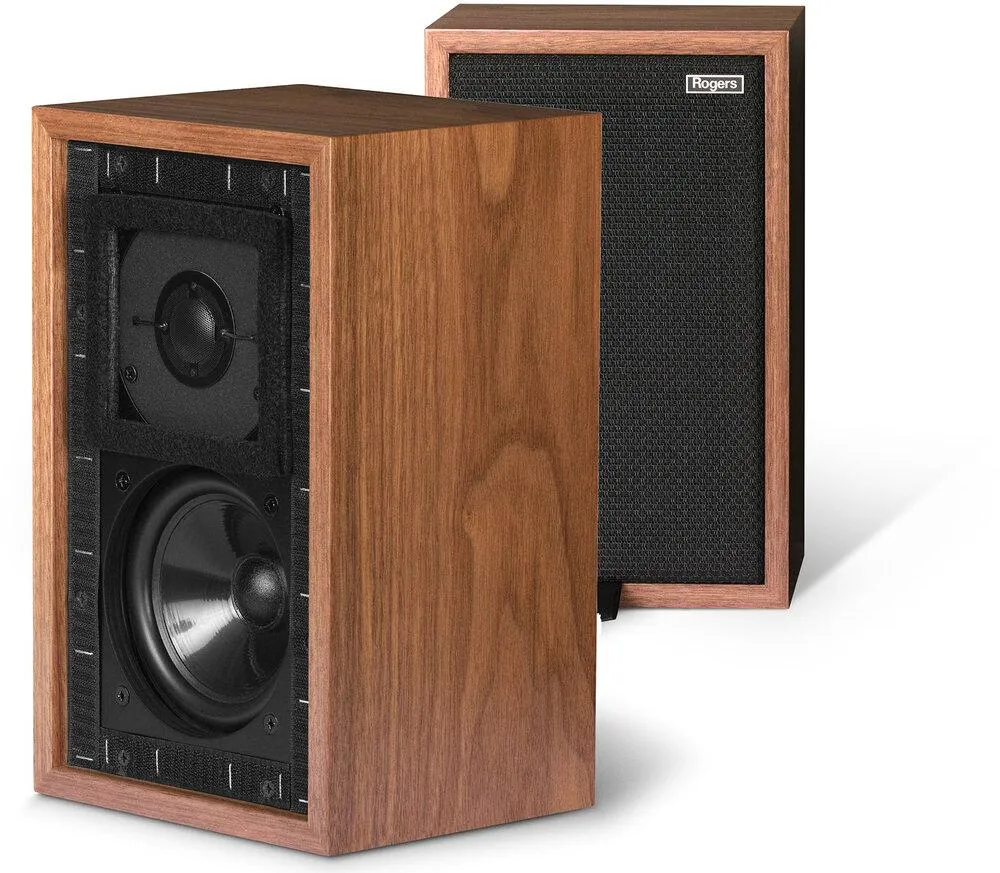

Walnut finish pictured, please contact us for pictures with amazaque finish

LS Speaker Stands sold separately
