Rockboard ISO Power Block V6

RockBoard ISO Power Block V6 is an isolated multi power supply designed to power up to five effects pedals simultaneously with stable, low-noise performance. It uses five transformer-isolated 9V DC outputs and one 18V DC link output for expanded pedalboard setups.

The advanced filtering technology helps prevent high-frequency noise, while the external transformer reduces low-frequency interference. Each power slot is protected against short circuits, helping keep the rest of the rig running safely if one output experiences a problem.

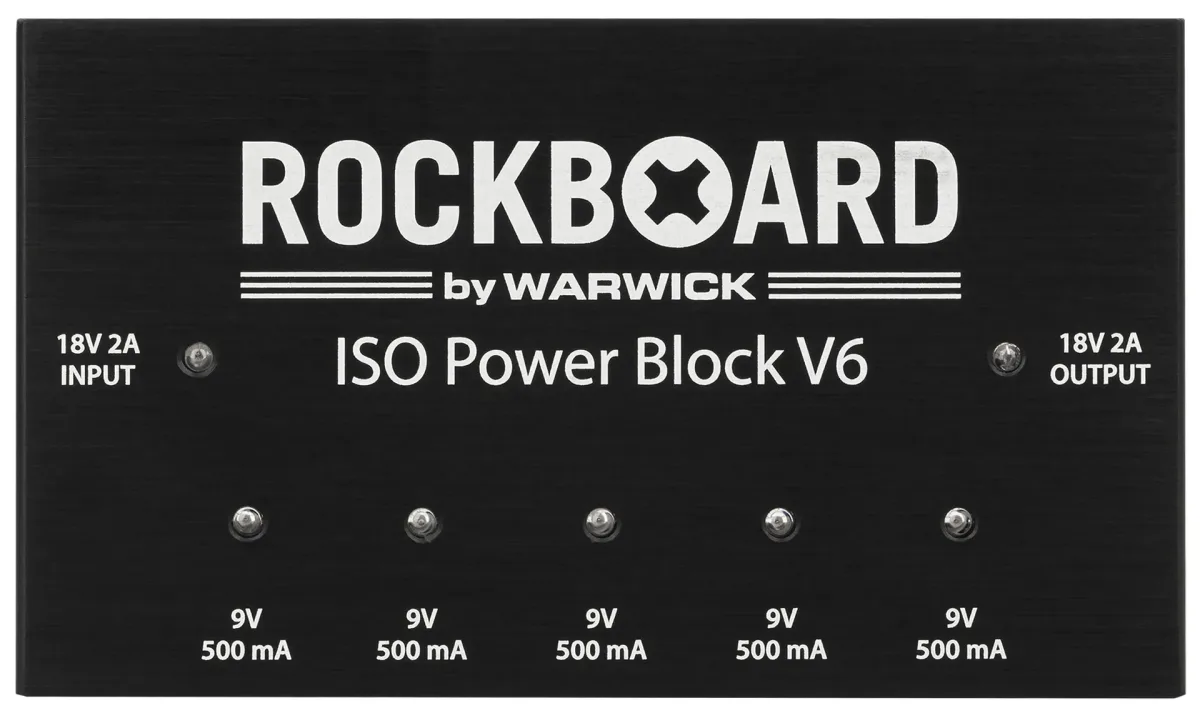

LED indicators on each output provide quick visual status checking, making it easy to identify polarity issues or short circuits at a glance. The unit can also be linked in series with additional ISO Power Block V6 units using the 18V DC link output.

Its compact metal housing and included multi-regional power adapter make it a practical solution for both touring and fixed pedalboard setups.

Features
5 Transformer-Isolated 9V DC Power Slots
18V DC Link Output For Expansion
Advanced Filtering Against High-Frequency Noise
Short Circuit Protection On All Outputs
LED Status Indicators For Each Slot

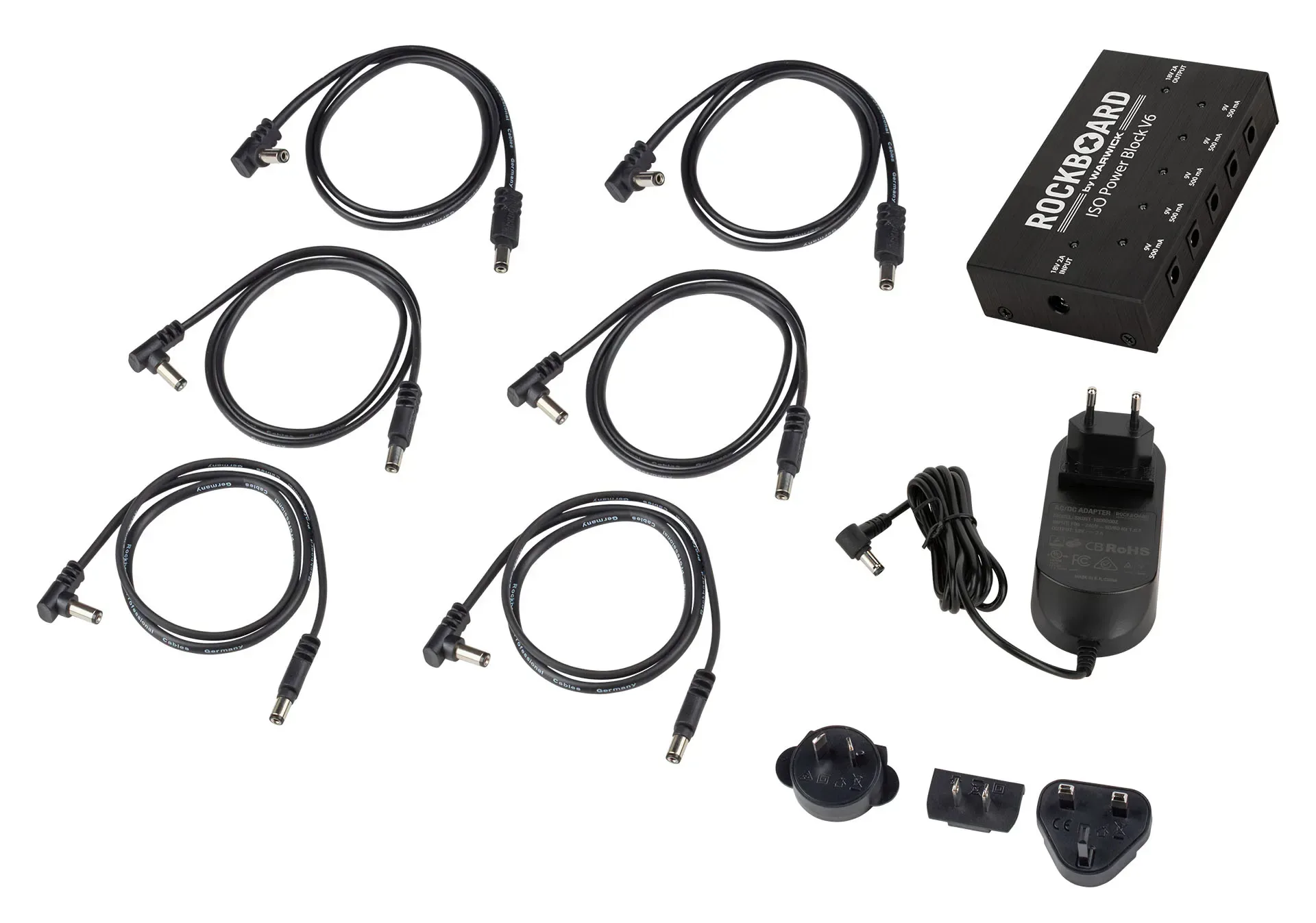

In The Box
RockBoard ISO Power Block V6
18V DC power adapter with interchangeable plug adapters
6 RockBoard Flat Power Cables, 60 cm

Specifications
Total Output Power: 22.5 W (2,500 mA)
9V Outputs: 5 x 9V DC, 500 mA each
18V Output: 1 x 18V DC, 2000 mA
Input Voltage: 18V DC
Power Connector: 2.1 x 5.5 mm Barrel Plug, Center Negative
Short Circuit Protection: Yes
LED Indicators: Red LEDs For Each Slot
Housing: Metal

Dimensions & Weight
Dimensions: 120 × 70 × 25 mm
Weight: 175 g
