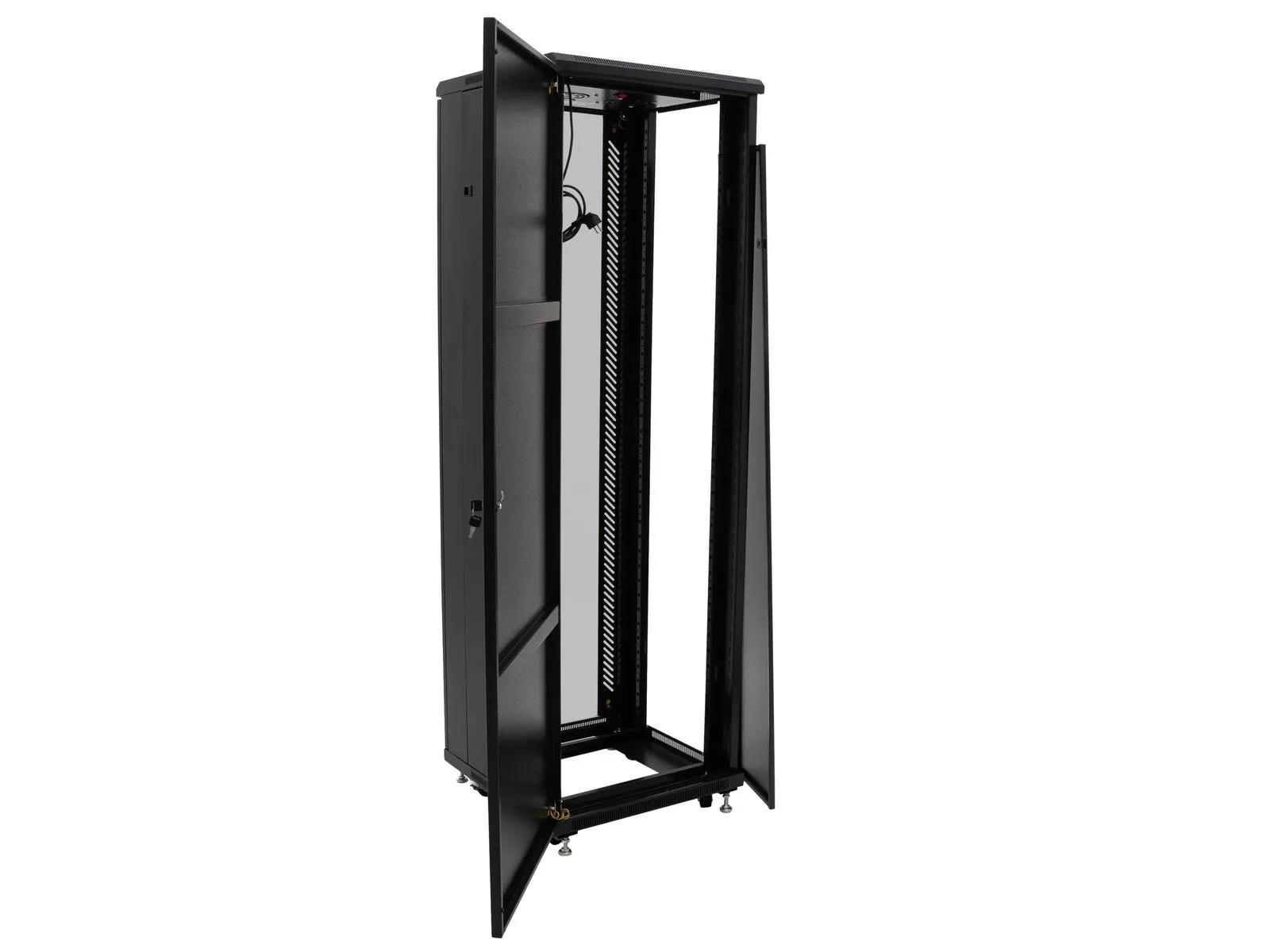

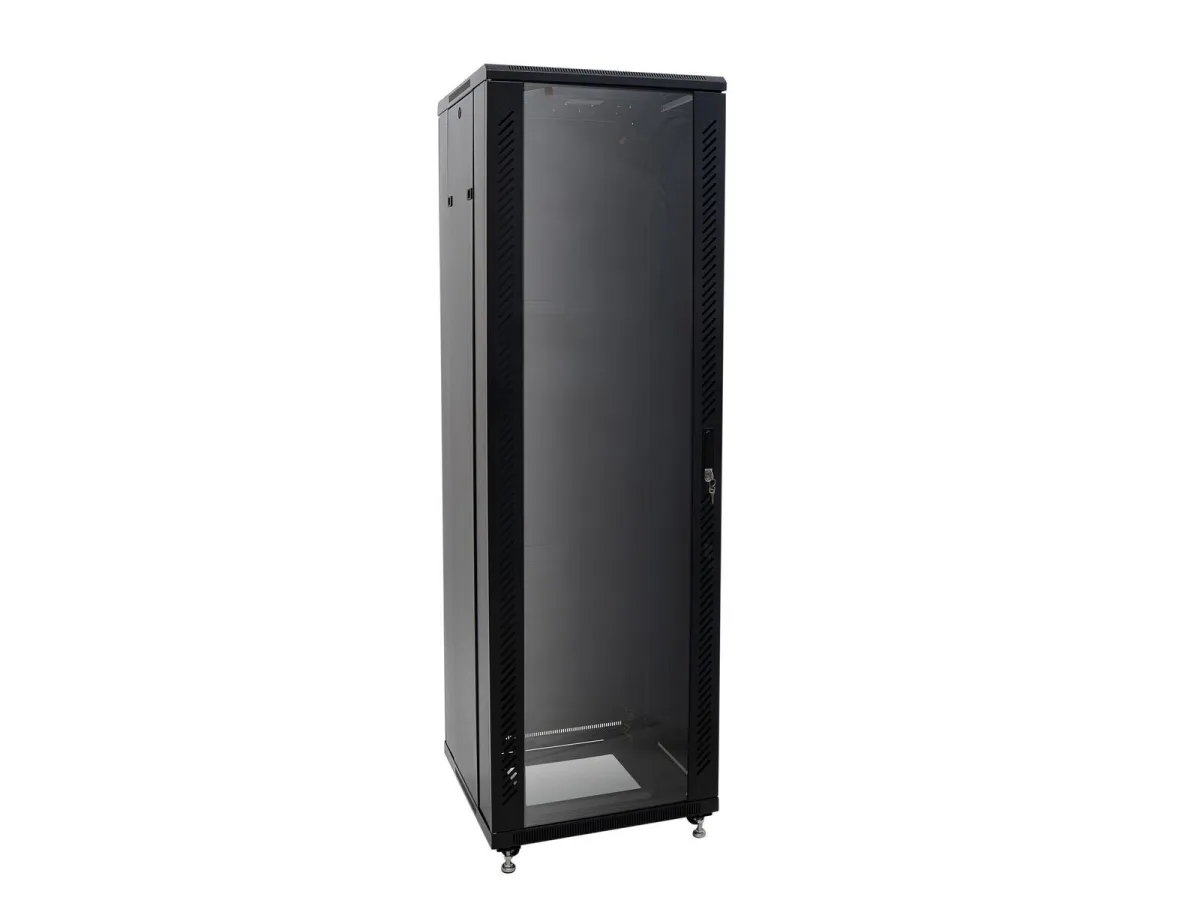

Roadinger SSC-32 Steel Cabinet with Glass Door 32U

19" steel cabinet with lockable doors and fan unit 32U

General Features
Type: 19" steel cabinet (rackmount)
Delivery: Dismantled
Material: Steel
Maximum Load: 150 kg
Cooling: 2 × built-in cooling fans
Doors & Panels:

Front door: 4 mm safety glass (ESG) with cylinder lock
Rear door: Cylinder lock
Side panels: Removable
Hinges reversible

Dimensions & Mounting
Height: 161 cm (32 U)
Width: 60 cm
Depth: 60 cm
Mounting Height: Front and rear approx. 142 cm
Adjustments:

4 × levelling feet
4 × castors (2 with locking brakes)
Cable Entry: Provision for cable inlets

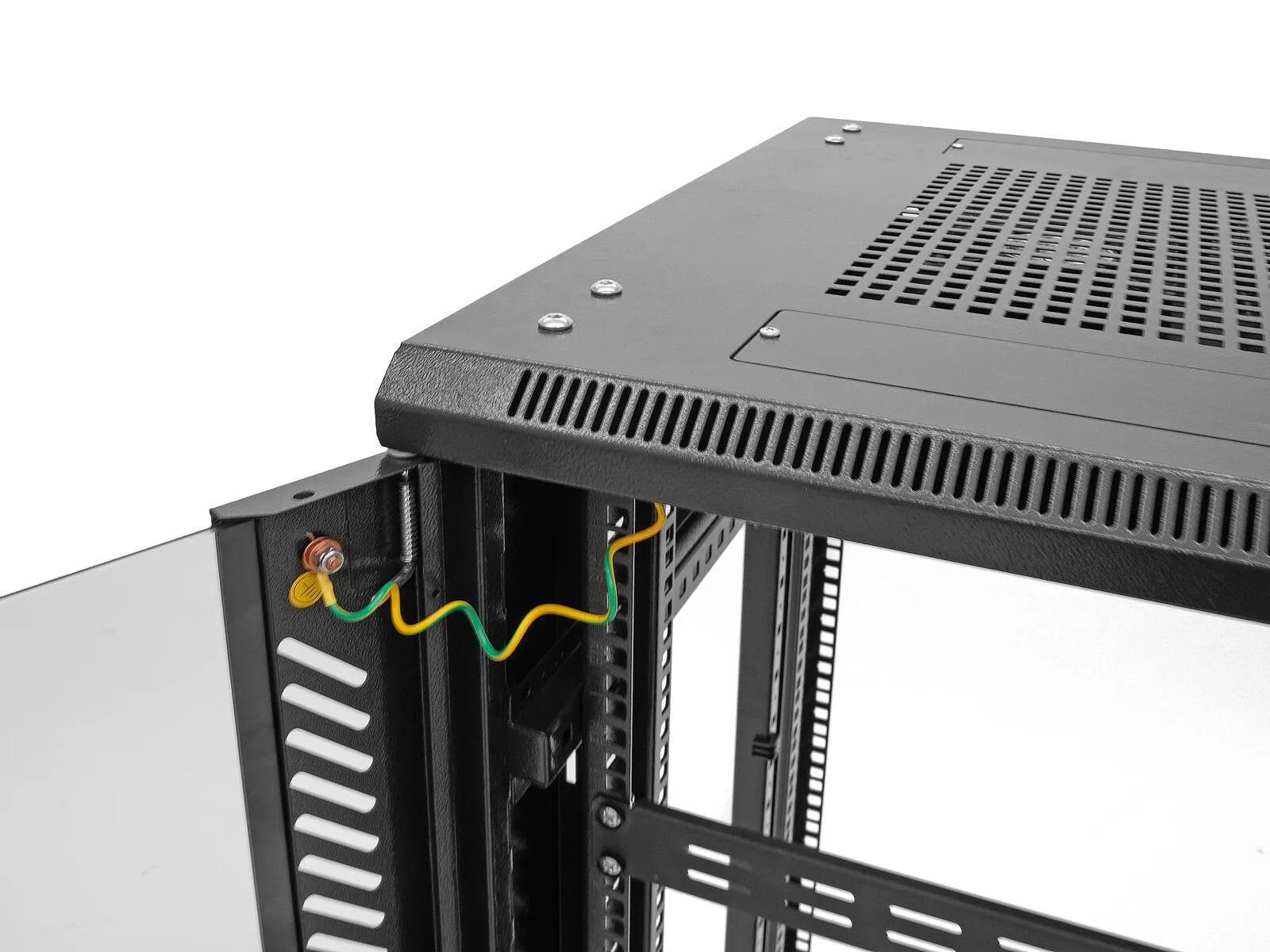

Earthing: Earthing screw included

Package Contents
1. Doors / Side Panels
2 × doors (front + rear)
2 × side elements
Weight: 29.50 kg
2. Cabinet Frames
2 × frame segments
4 × flying connectors
Weight: 21.70 kg
3. Base / Top Part
1 × bottom
1 × top
4 × castors (2 locking)
4 × levelling feet
1 × cooling fan
6 × flying connectors
9 × covers
1 × user manual
4 × keys
Weight: 16.80 kg
