Redshow Vegawall

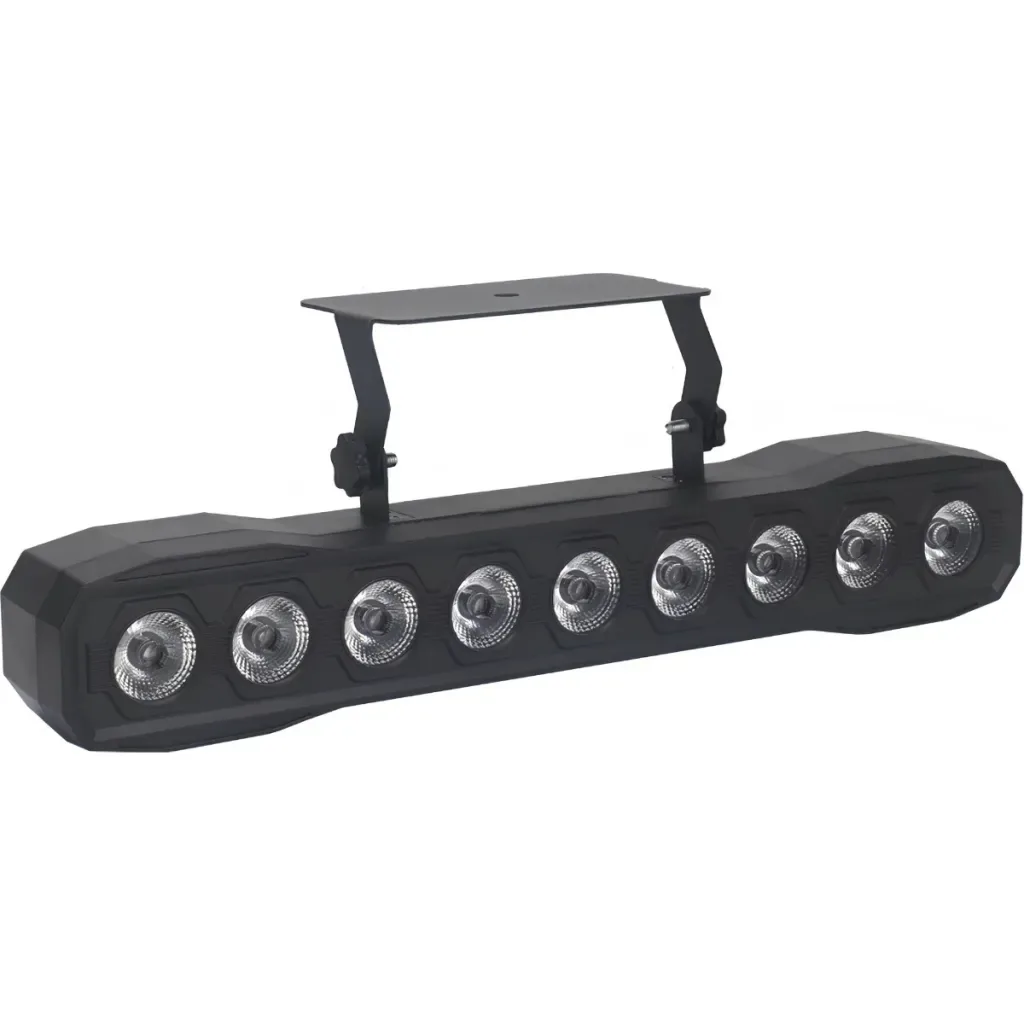

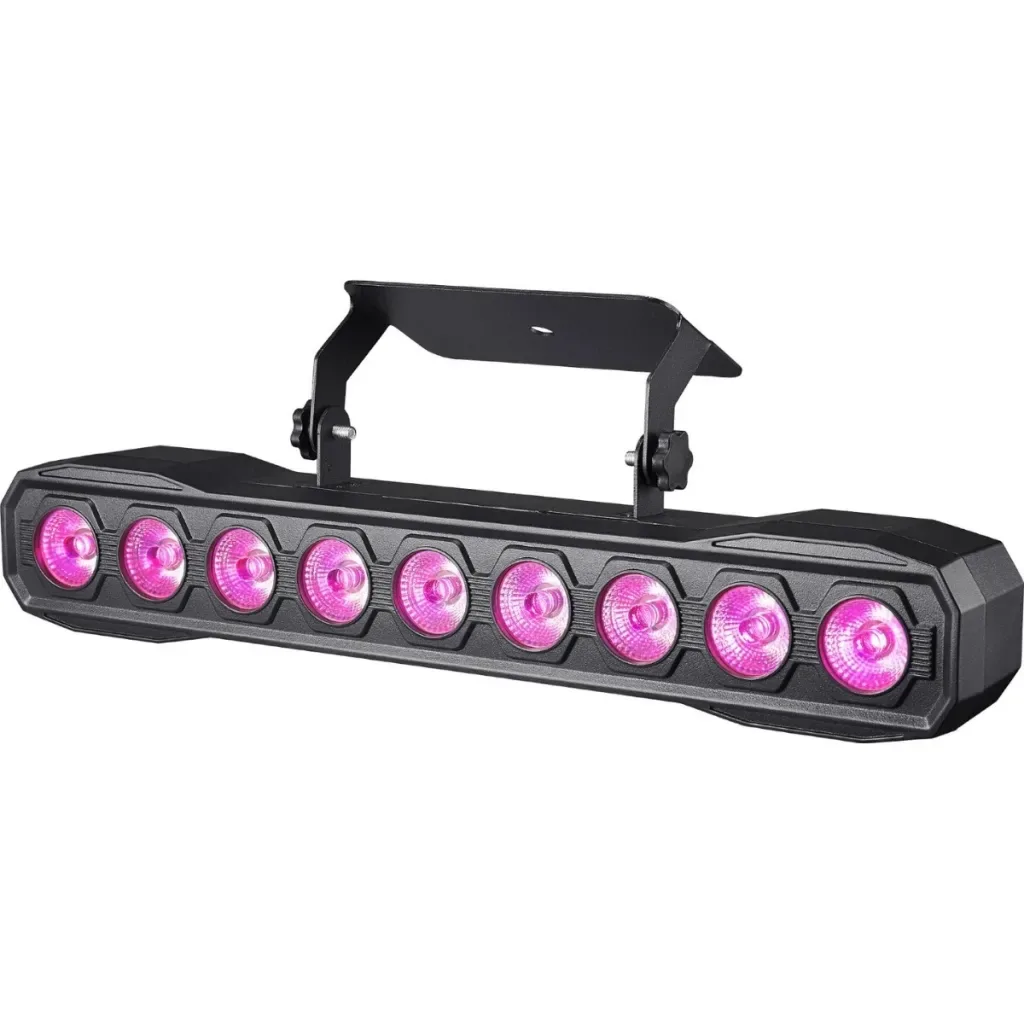

Redshow Vega Wall – RGBW LED Effect Bar

The Redshow Vega Wall is a compact LED effect bar featuring 9 powerful 4 W RGBW LEDs for colored lighting and dynamic lighting effects. With linear color mixing, adjustable dimming and built-in effect programs, it is suitable for DJ setups, smaller stages, bars, parties and other indoor events. The fixture can operate standalone or be controlled via DMX512.

Features and Functions

9 x 4 W RGBW LEDs with red, green, blue and white light
Linear RGBW color mixing with a dedicated white LED channel
Linear dimming from 0 to 100%
35° beam angle
Brightness of up to 3500 lux at a distance of 1 meter
DMX512 control in 4- or 8-channel mode
8 fixed colors
Automatic effect programs with color changes, gradients and pulsing colors
15 sound-activated color effects
Adjustable strobe function from 1–20 Hz
Auto, sound-activated and master/slave modes
Synchronization of multiple fixtures via the master/slave function

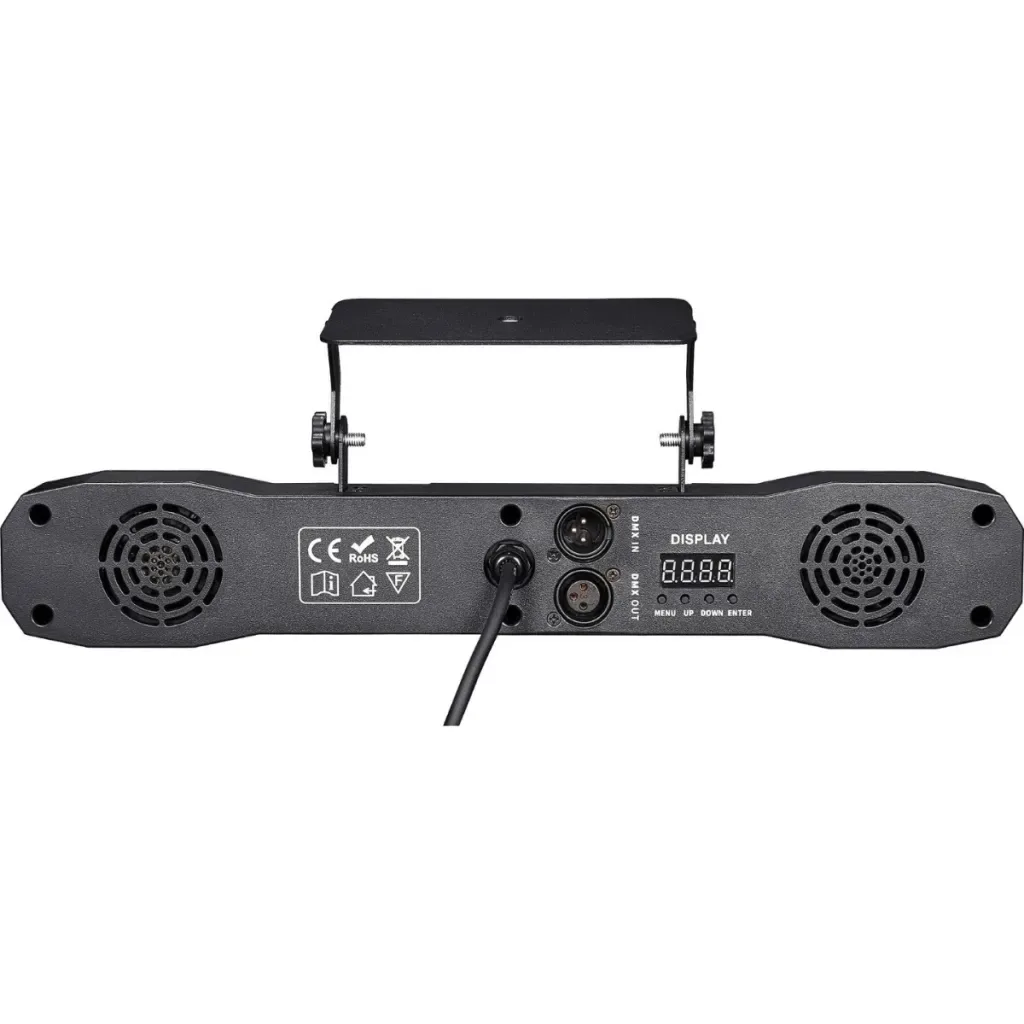

Digital LCD display for setting the DMX address, channel mode, colors and effects
XLR connection for DMX

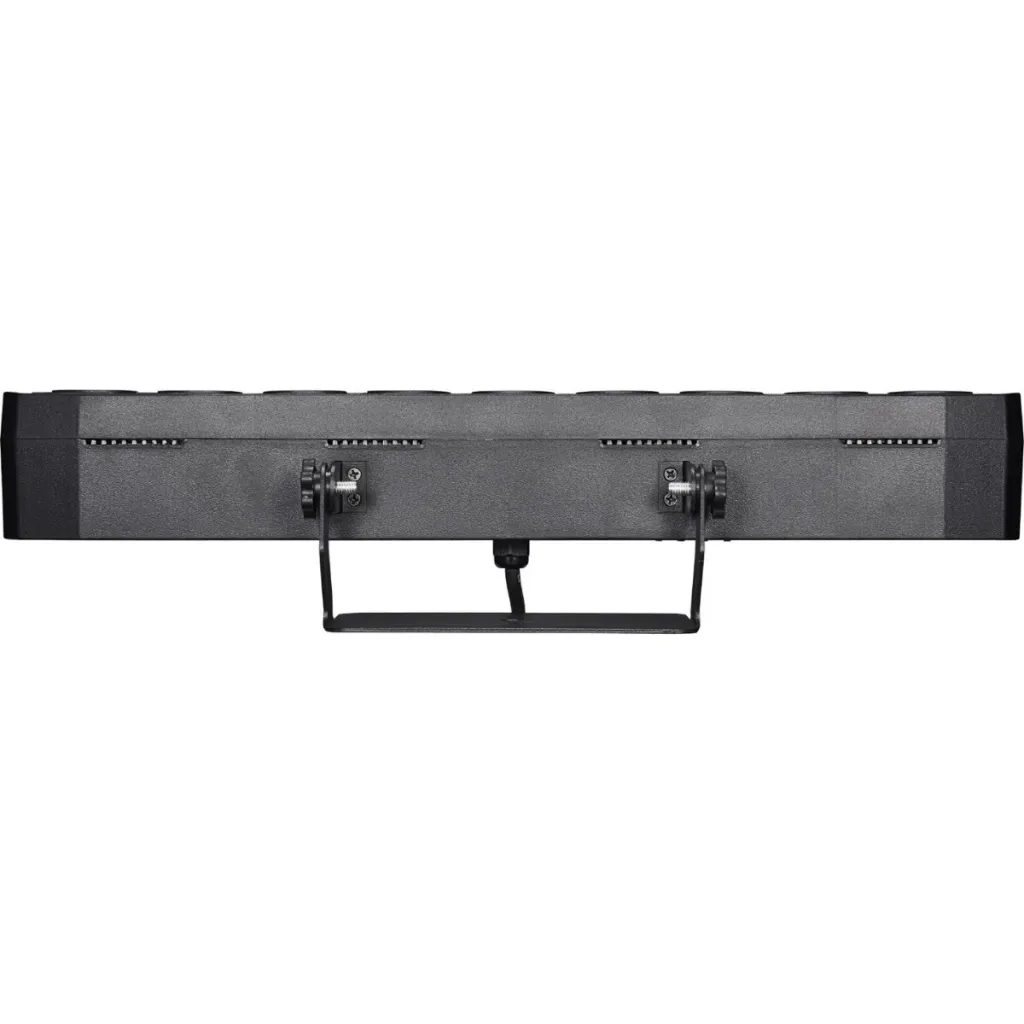

Adjustable mounting bracket for truss, stands or other suitable structures
Suitable for walls, stage backdrops and smaller areas requiring colored lighting

Specifications

Light source: 9 x 4 W RGBW LEDs
Colors: Red, green, blue and white
Color mixing: Linear RGBW
Dimming: Linear, 0–100%
Strobe frequency: 1–20 Hz
Beam angle: 35°
Brightness: Up to 3500 lux at 1 m
DMX channels: 4 or 8
Control modes: DMX512, auto, sound-activated and master/slave
Number of fixed colors: 8
Number of sound-activated effects: 15
Display: Digital LCD display
DMX connection: XLR
Power consumption: 40 W
Operating voltage: AC 100–240 V, 50–60 Hz
Expected LED lifespan: At least 20,000 hours
IP rating: IP20
Application: Indoor use
