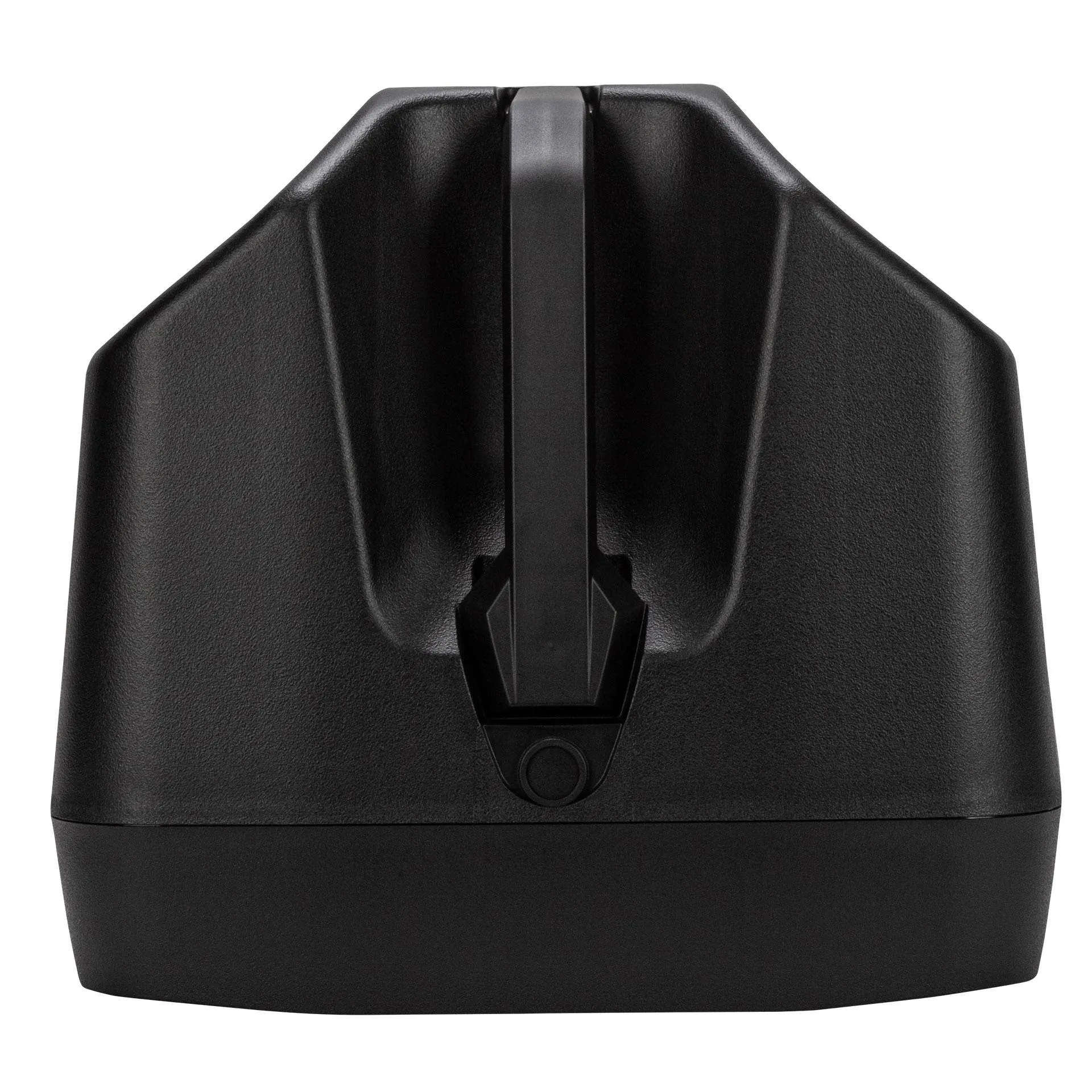

RCF HD 15-A

The HD 15-A is a unique product in its category. The professional compression driver with custom designed dome and high-power voice coil offers exceptional vocal clarity and sound projection. The 15” high power woofer offers an extremely linear response and a precise, deep low-frequency control. The amplifier delivers 1400 watts and is controlled by a powerful DSP that takes care of crossover, equalization, FiRPHASE, soft limiting and speaker protection.

130 dB Max SPL
1400 Watts 2-way peak power
DSP Processing with FiRPHASE
1.0" Compression Driver, 1.75” v.c.
15” Woofer, high power
Lightweight Composite Cabinet
90°x60°, wide dispersion constant directivity horn
Silent Fanless Class-D Amplifier

Frequency Response 45 Hz ÷ 20000 Hz
Max SPL @ 1m 130 dB
Horizontal coverage angle 90°
Vertical coverage angle 60°
Compression Driver 1.0'', 1.75'' v.c
Woofer 15'', 2.5'' v.c
Input signal bal/unbal
Input connectors XLR, Jack
Output connectors XLR
Input sensitivity -2 dBu/+4 dBu
Mic. Input Sensitivity -32 dBu
Crossover Frequencies 1800 Hz
Protections Thermal, RMS
Limiter Soft Limiter
Controls Volume, Boost, Mic/Line
Total Power 1400 W Peak, 700 W RMS
High frequencies 400 W Peak, 200 W RMS
Low frequencies 1000 W Peak, 500 W RMS
Cooling Convection
Connections VDE
Hardware 1 x M10 top, 1 x M10 bottom, 2 x M10 side
Handles 1 Top, 2 Side
Color Black
Height 714 mm
Width 442 mm
Depth 397 mm
Weight 22 kg
