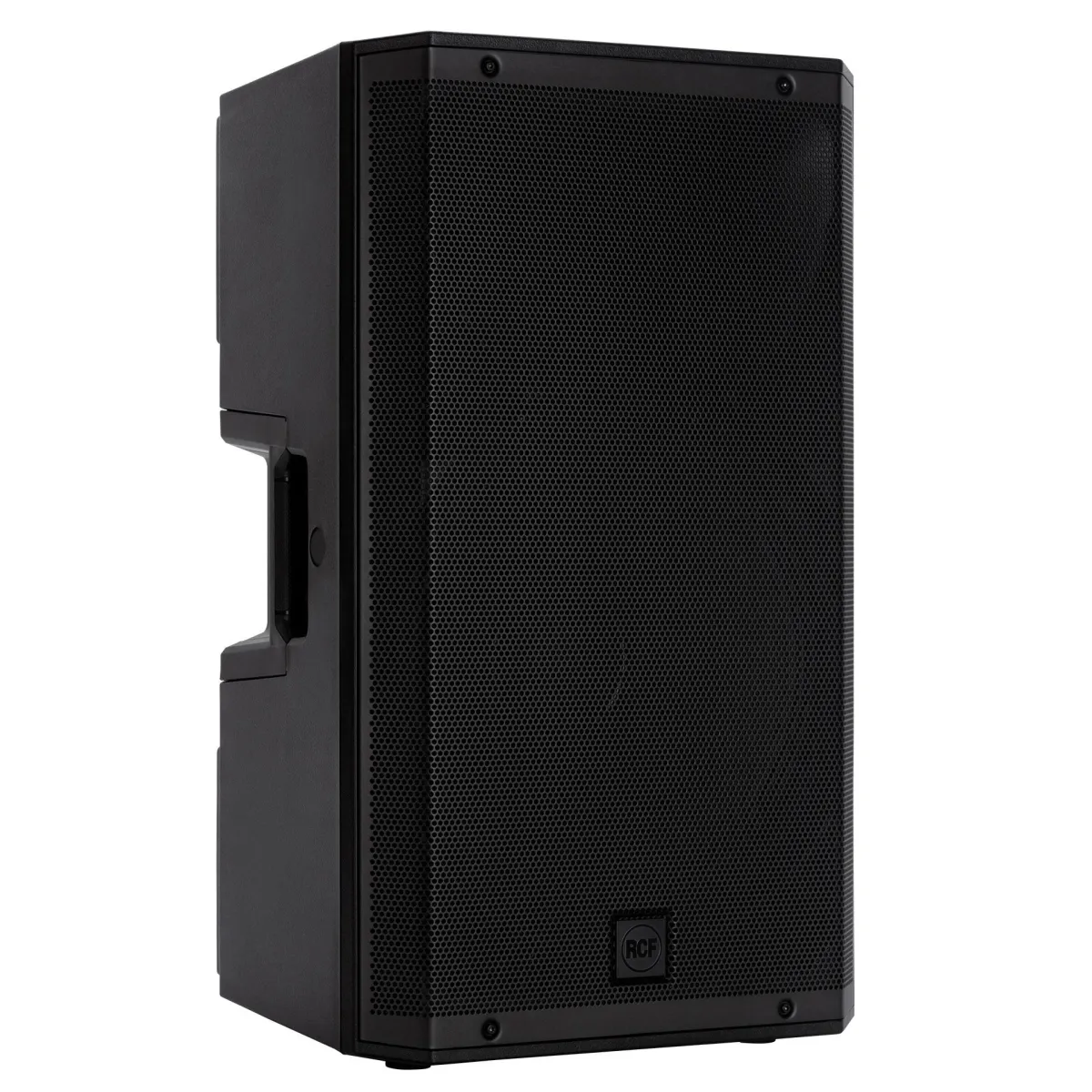

RCF ART 945 Active

ART 945-A is masterfully engineered to deliver stellar audio performance and versatility for intensive audio applications. The combination of neodymium transducers - 4" titanium compression driver, 15" woofer - two-channel 2100W amplifier, and the constant directivity True Resistive Waveguide produces coherent 100° x 60° coverage for the listening area with up to 135 dB SPL, distortion-free sound. Merging RCF proprietary FiRPHASE and Bass Motion Control DSP processing, perfectly tuned for each model, the audience will experience absolute clarity and deep, powerful bass response. The sleek cabinet uses a special polypropylene composite material with an M-brace internal reinforcement, making it easy to carry and secure to install on a pole, flown-, wall-, or truss-mounted using the multiple rigging points available.

FEATURES

Up to 135 dB Sound Pressure Level
2100W Class-D Bi-Amplification
45-20000 Hz linear frequency response
4" Titanium/Neodymium Compression Driver
15" Neodymium Woofer
FiRPHASE zero degrees phase technology
Bass Motion Control woofer excursion management

Frequency Response 45 Hz ÷ 20000 Hz
Max SPL @ 1m 135 dB
Horizontal coverage angle 100°
Vertical coverage angle 60°
Compression Driver 1 x 1.4'' neo, 4.0'' v.c
Woofer 1 x 15'' neo, 3.5'' v.c
Input signal bal/unbal
Input connectors XLR, Jack
Output connectors XLR
Input sensitivity -2 dBu/+4 dBu
Crossover Frequencies 650Hz
Protections Thermal, RMS
Limiter Soft Limiter
Controls Linear, Boost, Stage, Volume
Total Power 2100 W Peak
High frequencies 700 W Peak
Low frequencies 1400 W Peak
Cooling Convection
Connections Powercon TRUE1 TOP IN/OUT
Height 717 mm
Width 415 mm
Depth 410 mm
Weight 22.4 kg
