Rane Zonepager

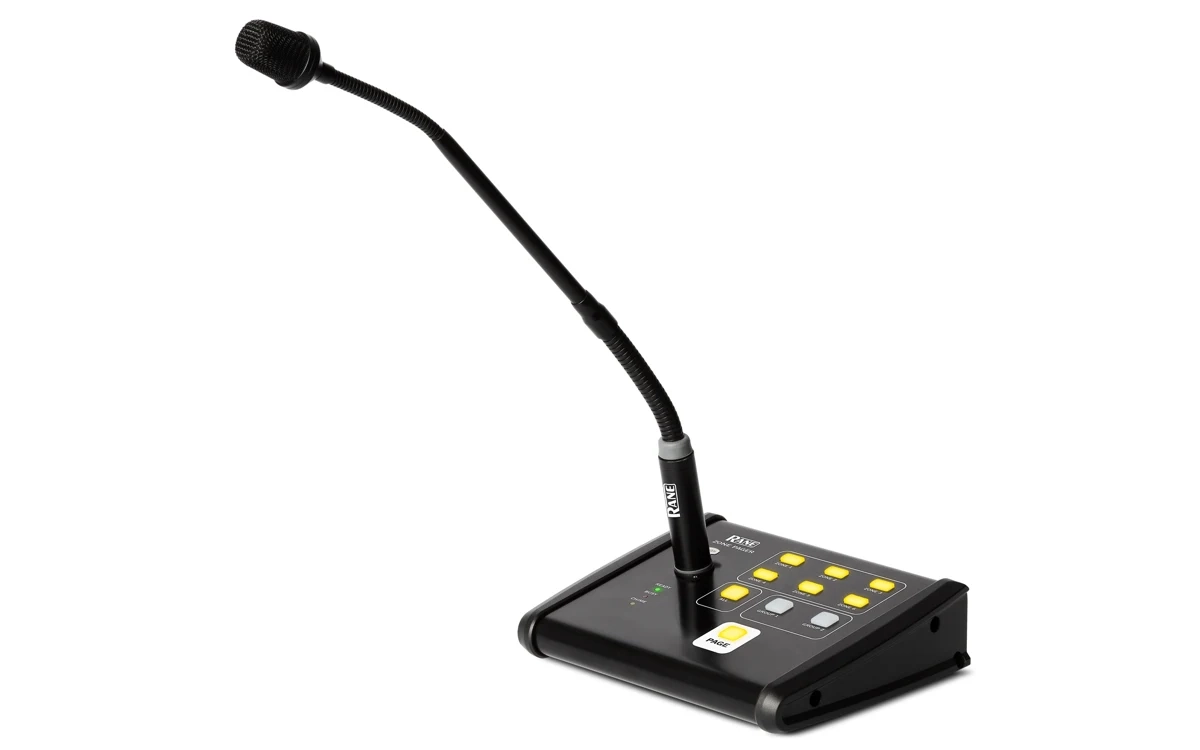

The RANE Zone Pager is a paging station that allows users to page up to (6) zones separately, to (2) groups of zones, and to all zones at the same time. Lights will indicate if the zone is READY or BUSY (already being paged by a higher-priority paging station) and when the chime has completed (if enabled).

Zone Pager accepts an included dynamic gooseneck microphone via a 3-pin XLR connector. The microphone input supplies 24V phantom power for condenser microphones. The Zone Pager is connected to a RANE DSP with a Cat5e (or better) cable on a local run up to 500ft (150m) away from the equipment rack.

Zone Pager is perfect for use in bar/lounge restaurants, meeting rooms, schools, house of worship, and smaller venues where multiple paging zones are needed.

Six-zone smart paging station
Two programmable group buttons
Gooseneck dynamic microphone included
Powered by any Rane DSP commercial processor via RJ-45
+24V phantom power and 13dB pad

Specifications:

Frequency Response: 20Hz - 20kHz
Mic Input Impedance: 1.1kΩ
Condenser mic max input: -1dBu
Dynamic mic max input: -13dBu
Current Draw: 0.10 amps
Phantom Power: 24VDC
Connectors: RAD port: RJ45 connector, Microphone: XLRF 3-pin
Gooseneck Microphone: Dynamic, Super-cardioid
Frequency Response: 100Hz - 15kHz
Sensitivity: -56dBv/pa (1.6mv/pa)
Max SPL: 135dB (THD ≤ 1% @ 1kHz)
Dimensions: (width x depth x height): 200mm x 55mm x 162mm
Weight: 0.776kg
