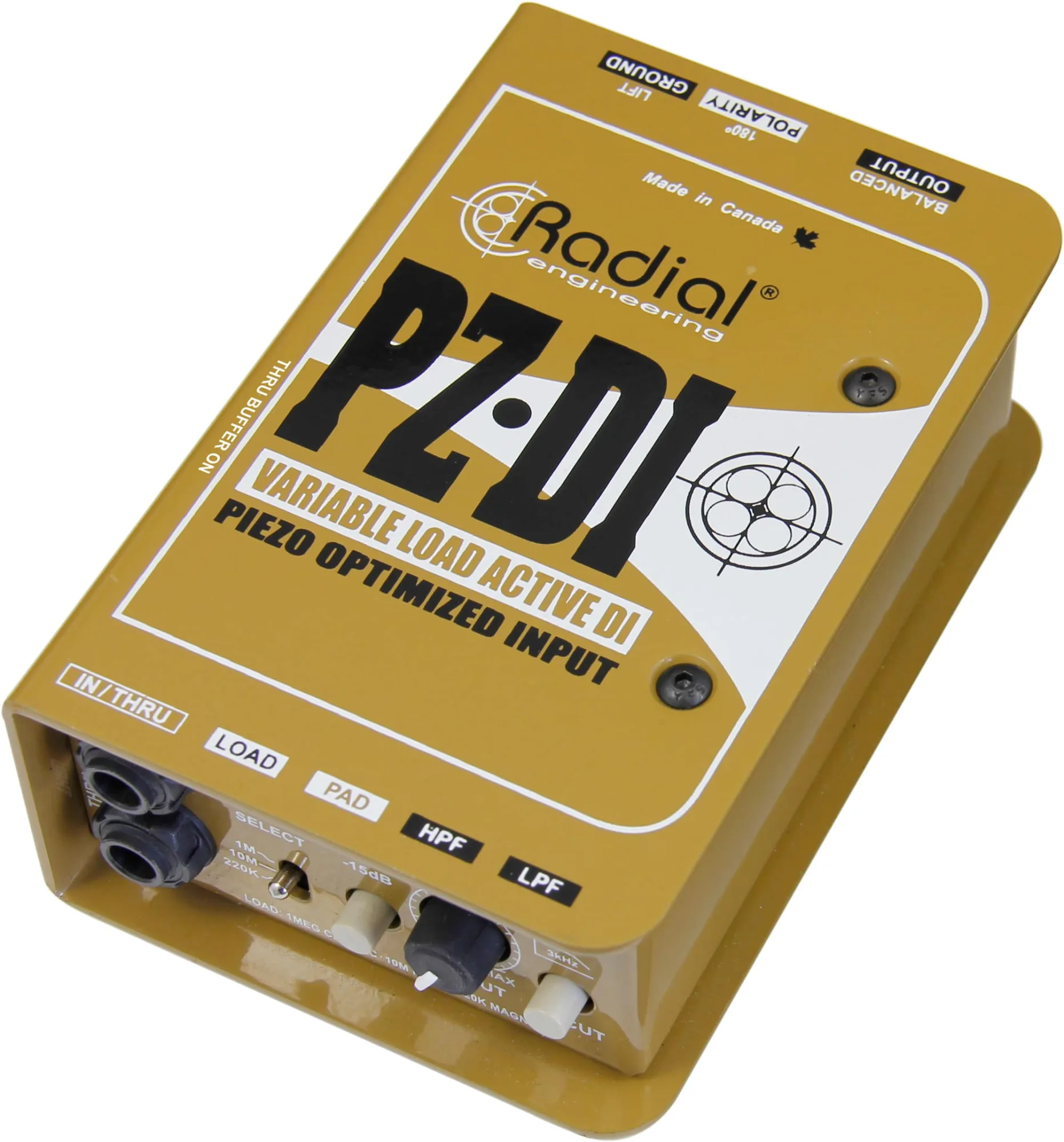

Radial PZ-DI – Active DI Box for Piezo and Acoustic Instruments

The Radial PZ-DI is a high-performance active DI box optimized for acoustic and orchestral instruments. With selectable input impedance and a variable low-cut filter, it can be adapted for both piezo elements and magnetic pickups, providing improved tone and reduced resonance during live performances and recording.

The PZ-DI is powered by 48V phantom power and requires no batteries.

Features and Specifications

Active DI box for acoustic and orchestral instruments
Optimized for piezo elements and magnetic pickups

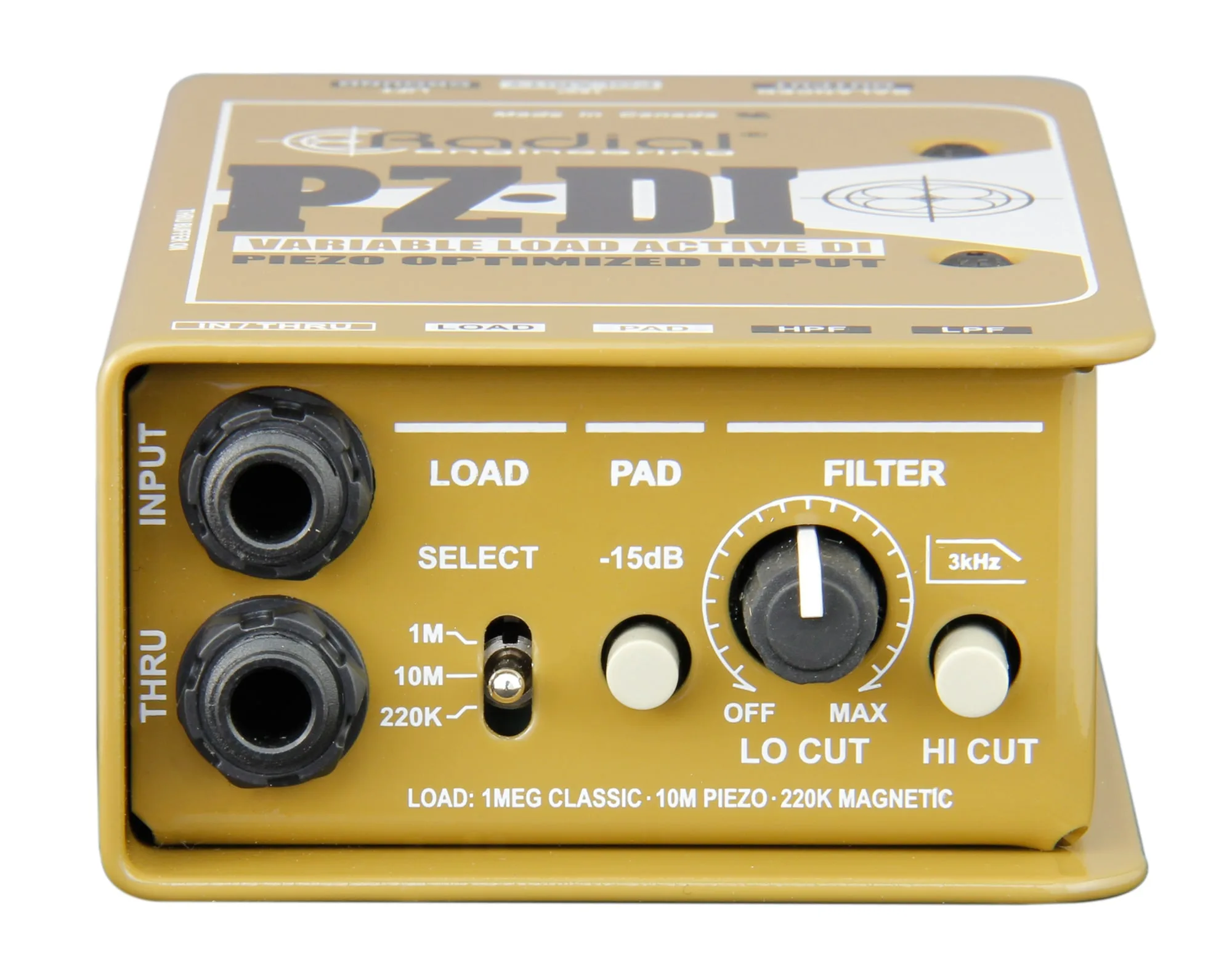

Variable input impedance: 10M / 1M / 220K Ohms
Variable low-cut filter for controlling low-frequency resonance
Switchable high-cut filter
Improves tone and reduces harsh frequencies from piezo pickups
Designed for live use and recording
Powered by 48V phantom power
No batteries required
Input pad function
1/4" hi-Z input
XLR male output

Technical Specifications

Frequency response: 20 Hz – 20 kHz
Dynamic range: 105 dB
Gain: +4.6 dB
Total harmonic distortion: 0.02%
Output impedance: 200 Ohms nominal
Equivalent Input Noise: -98 dBu
Proprietary analog audio circuit with low-noise FET op-amp

Dimensions and weight

Dimensions: 127 x 84 x 48 mm
Weight: 0.54 kg

Applications

For piezo pickups with a 10-megohm input for a smoother and more natural tone
For active acoustic instruments with low-pass and low-cut filters
For magnetic pickups with a 220K-ohm setting for a warmer sound character
