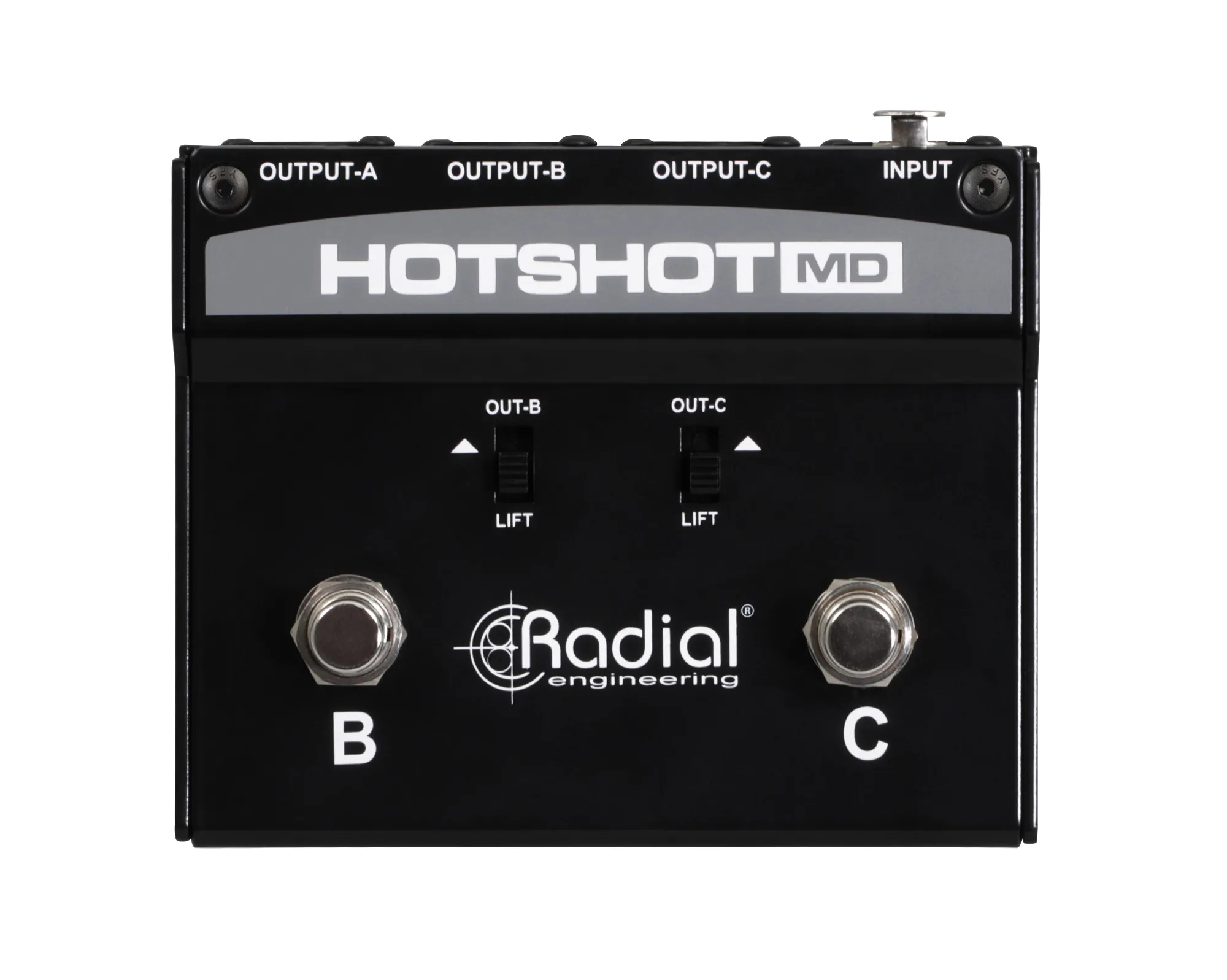

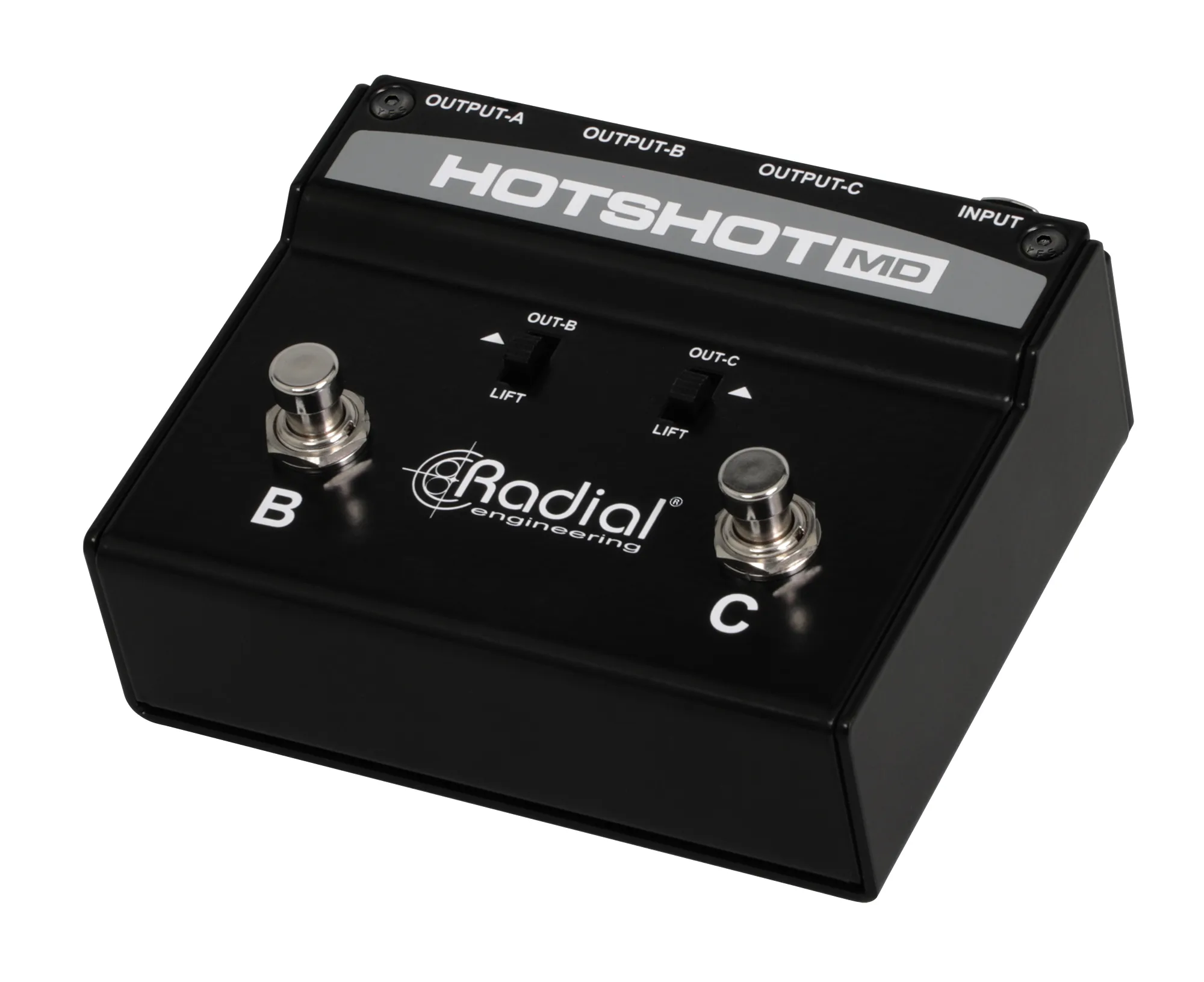

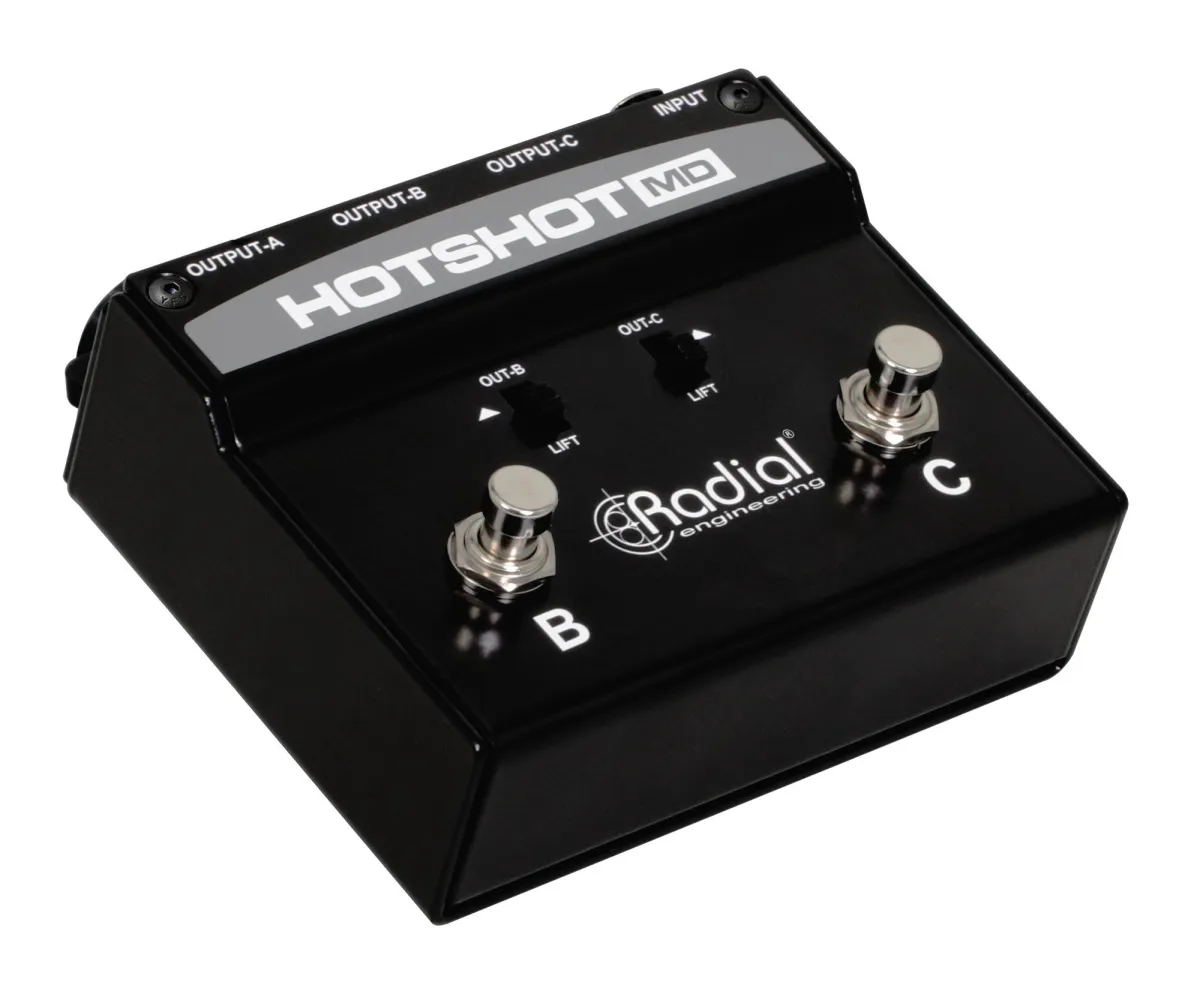

Radial HotShot MD

Radial HotShot MD – Multi-Output Dynamic Mic Switcher

Full control over the microphone signal on stage
The Radial HotShot MD gives band leaders and performers the ability to easily control their microphone and switch between vocals, internal communication, and technical coordination—all without disrupting the audience experience. With noise-free switching and a rugged design, this is a reliable tool for professional stage performances.

Smooth and discreet communication
The unit allows you to route the microphone signal to different receivers in real time. When no footswitches are activated, the signal is sent to the PA system as usual. Upon activation of either of the two footswitches, the signal is instead routed to alternative outputs—perfect for communicating with band members or technicians without the audience hearing.

Key Features

• Routes the microphone signal to technicians, band members, or both
• Noise-free switching for seamless stage performance
• Preserves the sound quality from the vocal microphone
• 100% passive design – requires no external power

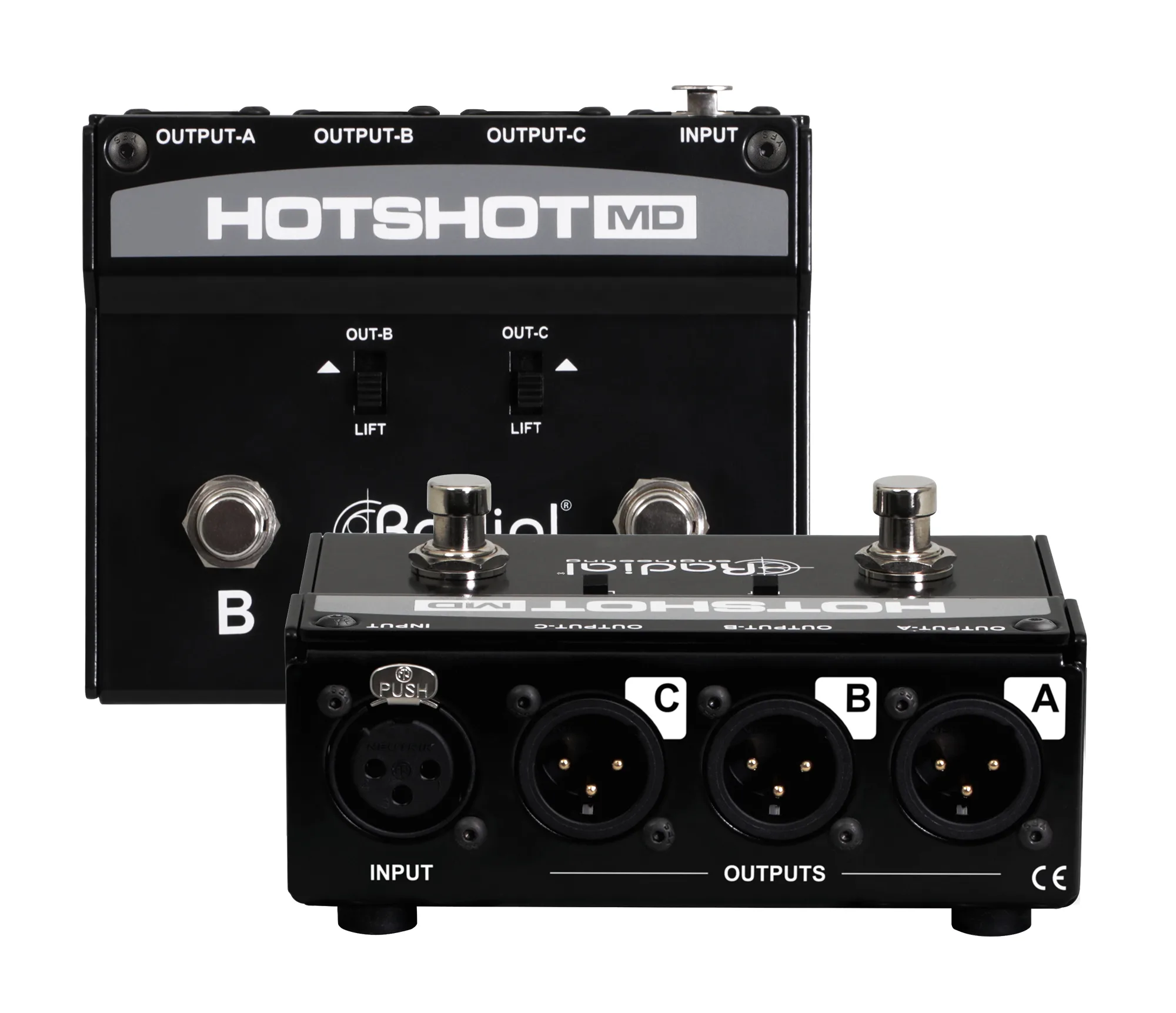

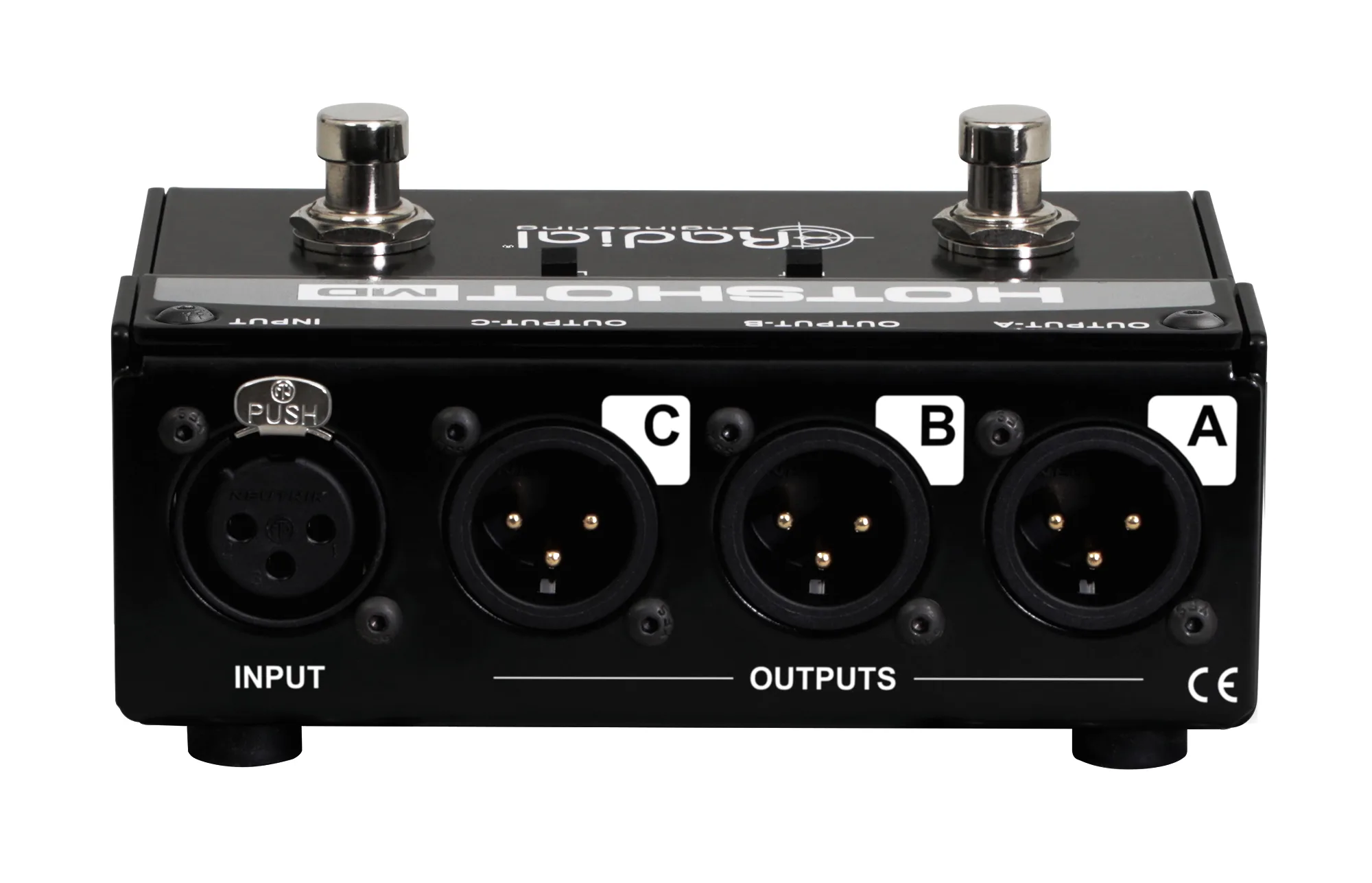

Three separate communication channels

• OUTPUT-A: XLR output for vocals to PA/monitors
• OUTPUT-B: XLR output for connection to other devices
• OUTPUT-C: XLR output for connection to a third device
• INPUT: Lockable XLR input for dynamic microphone

Advanced Control Functions

• OUTPUT B GROUND LIFT: Disconnects pin 1 on Output B
• OUTPUT C GROUND LIFT: Disconnects pin 1 on Output C
• OUTPUT B FOOTSWITCH: Routes signal to Output-B and mutes Output-A
• OUTPUT C FOOTSWITCH: Routes signal to Output-C and mutes Output-A
• Combined B/C FOOTSWITCH: Sends signal to both Output-B and C simultaneously

Rugged construction for touring use

• Heavy-duty steel housing (14 gauge) for maximum durability

The Radial HotShot MD is an efficient and reliable tool for professional stage communication, designed to improve workflow and ensure a flawless live performance.
