Quik Lok Z-726L

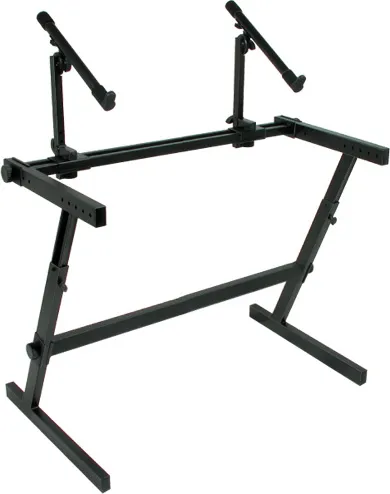

Z/726L Extra-Wide, double-tier , height adjustable “Z” frame provides a solid base for supporting all kinds of gear including keyboards/controllers, recording, audio and computer equipment in addition to a large area for placement of floor pedals.

The “Z” stand line is a modular system that can be designed in countless ways to suit any users needs. The base frame can eventually be expanded to a fully functionally workstation by adding a variety of available options. Different models can be configured to perfectly fit stage, studio, home or rehearsal environments.

All stands are constructed with heavy gauge steel and computer-welded joints for years of dependable use.

Related Accessories: Z/710, Z/711, Z/712-44, Z/714*, Z/728, Z/729*, Z/730*, Z/731, ZM/90, ZM/91, ZM/93, ZM/94, ZM/99, LPH/Z

Specification

Main tier depth: 50.2 cm (19.75")
Second tier depth: 30.5 cm (12")
Leg depth: 60.3 cm (23.75")
Side to side width: 111.8 cm (44")
Height positions (7): 67 to 85 cm (26.3" to 33.4")
2nd tier height positions: 23.5 to 31 cm (9.2" to 12.2")
2nd tier angles: 90°, 80°, 70°, 60°
Frame tubing size: 30 X 50 mm
Overall Weight capacity: 113 kg (250 lb)
2nd tier weight capacity: 33.8 kg (75 lb)
Weight: 12.5 kg (27.7 lb)
Color: Black
Options: Z/710, Z/711, Z/712-44, Z/714*, Z/728, Z/729*, Z/730*, Z/731, ZM/90, ZM/91, ZM/93, ZM/94, ZM/99, LPH/Z
