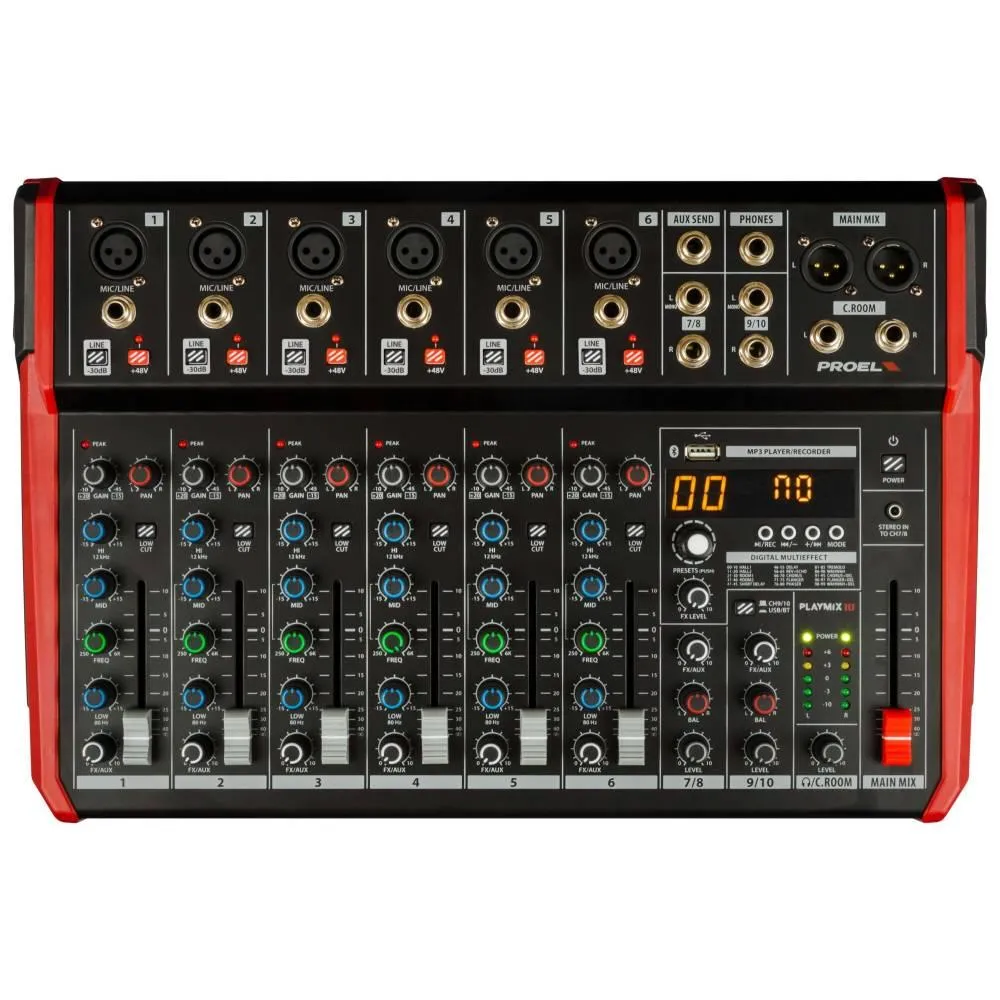

Proel PLAYMIX10

PLAYMIX is a series of mixers created by PROEL to offer in a very compact and stylish package a high inputs density, a full set of features and a superior audio quality, at a very convenient price point.

PLAYMIX mixers are available in 3 models, with the same channel and master functions, but offering 6, 8 or 10 inputs respectively. The mono MIC/LINE channels feature low-noise, high-headroom microphone preamps, 3-band EQ with sweep MIDs and HPF, and 60mm control faders, for a full control of your sound.

All models feature an advanced DIGITAL section with LCD display, including:
- A high-quality 24-bit built-in DSP with 100 studio-grade presets of single and combined effect (REVERBS, DELAYS, MODULATIONS)
- A 48KHz stereo USB audio interface for playing/recording thru PC connection
- A built-in MP3 player from USB memory key or BLUETOOTH interface
- On-the-go stereo recording on USB memory key

Carefully designed and engineered in Italy by PROEL, PLAYMIX mixers are hosted in rugged cases, providing extended durability for a stage-proof use and they offer in an ultra-compact format the performance of professional consoles, delivering a clean and accurate sound for a wide range of applications.

MONO INPUT CHANNEL
Mic Input sensitivity from -10 to -45 dB Balanced XLR-F
impedance 1 Kohm
Line Input sensitivity from +20 to -15 dB Balanced JACK
impedance 20 Kohm
Lo cut 80Hz, 6dB/oct.
EQ HIGH (shelving) ±15 dB @ 12K Hz
MID (peaking) ±12 dB @ 250-6K Hz
LOW (shelving) ±15 dB @ 80 Hz
STEREO INPUT CHANNEL
Line Input sensitivity from +12 to -15 dB Balanced JACK
impedance 20 Kohm Stereo Mini JACK
MASTER SECTION
MAIN MIX nom. out level +4 dBu Unbalanced XLR-M
C. ROOM output nom. out level +4 dBu Unbalanced JACK
SEND output nom. out level +4 dBu Unbalanced JACK
HEADPHONES min. impedance 64 ohm Stereo JACK
Bluetooth Version 5.0, Audio Streaming
USB Audio Interface Stereo IN/OUT, 16-bit converter, 44.1 KHz (PENDRIVE) / 48 KHz (PC) sample rate
Type A
DIGITAL EFFECT PROCESSOR
Effects 100 presets
A/D and D/A converters 24 bit
DSP resolution 24 bit
Controls 2-DIGIT display, DIAL, LEVEL
GENERAL SPECIFICATIONS
Maximum level all outputs +15 dBu
Crosstalk meas. at 1 KHz > 75 dB
HUM & Noise unweighted < 90 dB
THD + Noise at +4dB, 1kHz < 0,009 %
Dimensions (WxHxD) 415x 274 x 61 mm
Weight 3,00 kg
POWER REQUIREMENTS
Supply use only supplied AC/DC ADAPTER 5VDC 1A
Mains Supply Voltage 100-240 VAC (±10%) 50/60 Hz
Consumption 15 W
