Proel HPAMP106

The 100 Series is a range of D.I. Boxes and Headphone Amps designed to complement audio systems in stage applications, recording studios and fixed installations. Hosted in a stylish extruded and stackable aluminum shell or in a sturdy metal chassis, the 100 Series products are meant to deliver sound quality, versatility and stage-proof reliability in a very affordable package.

6 independent high-power amp sections suitable for any type of headphones

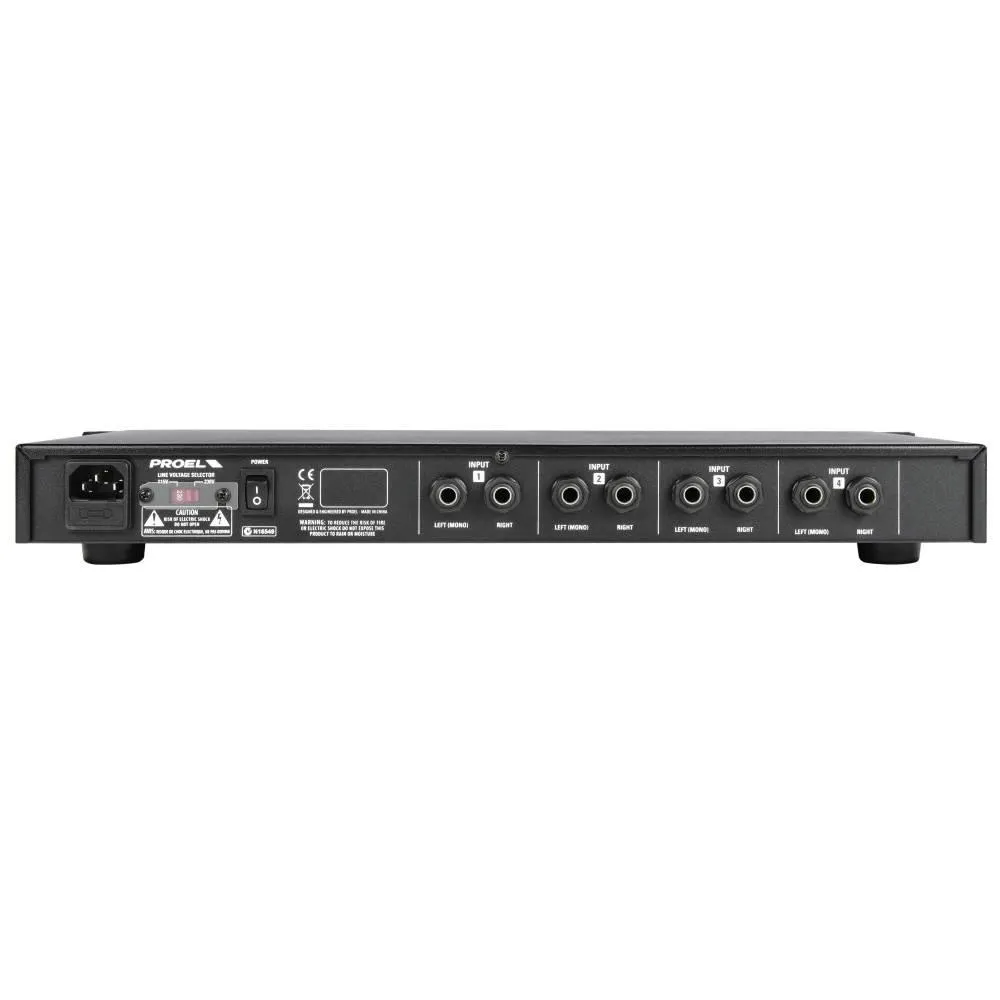

4 selectable main stereo/mono inputs with ¼” JACK connectors (REAR panel)

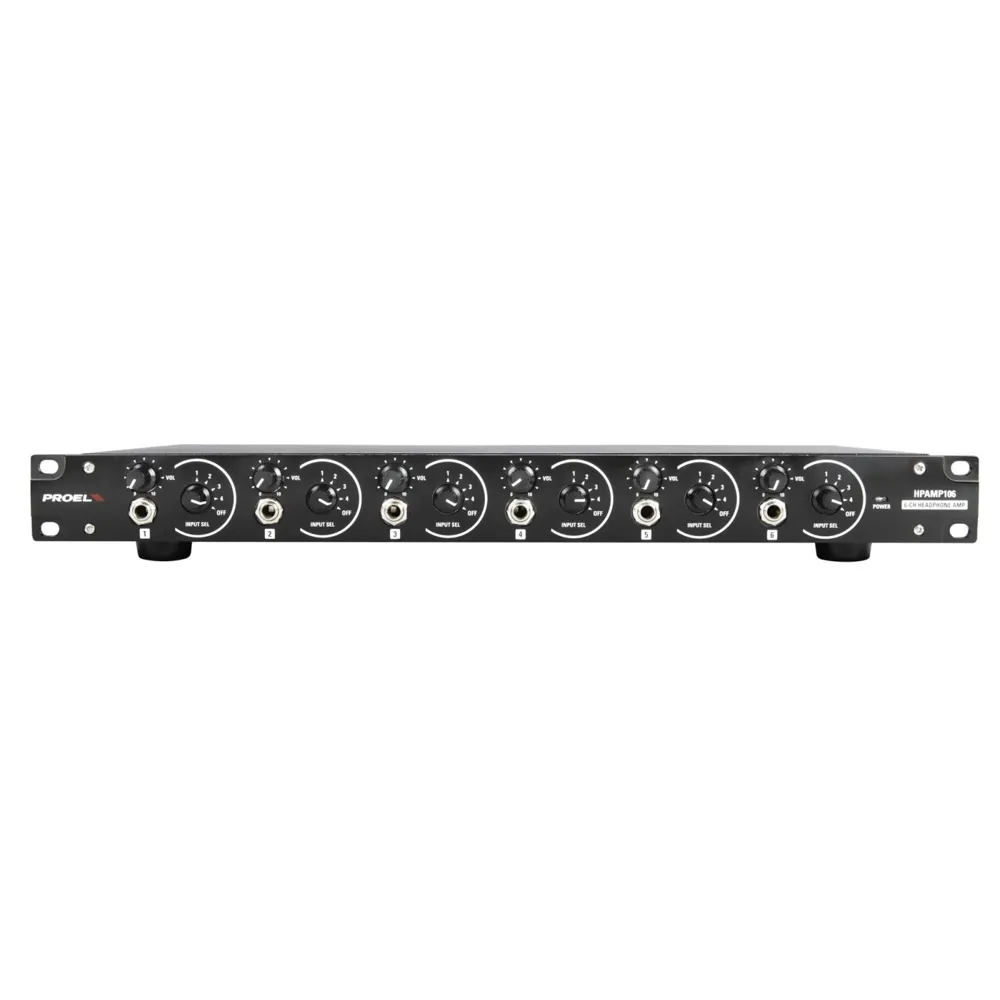

6 stereo headphone outputs with individual level controls , input selector and ¼” JACK connectors (FRONT panel)
300mW max output level at 32 ohm (per channel)
Built-in power supply with toroidal transformer and voltage selector
19” rack mountable metal chassis

Input Section
Inputs 4 stereo
Input Impedance 47 Kohm
Max Input Level +25 dBu
Connectors 2 x 1/4" jack unbalanced (each input)
Output Section
Outputs 6 stereo
Maximum output (2x) 193 mW @ 32 ohm (each)
Load Impedance minimum 16 ohm per channel
Max gain +13 dB each channel
Connector 1/4" jack stereo (each output)
System Performance
Distortion (THD) 0.02 %
Noise < -98 dBu unweighted
Frequency Response 20 Hz - 20 KHz (-3 dB)
General
Controls OUTPUT LEVEL, INPUT SELECTOR
Indicators Power ON
Power supply Selectable 100-120 VAC, 220-240 VAC, 50-60 Hz
Dimensions (W x H x D) 480 x 44 x 210 mm
Weight 3,9 Kg
