Proel FREEPASS10USB

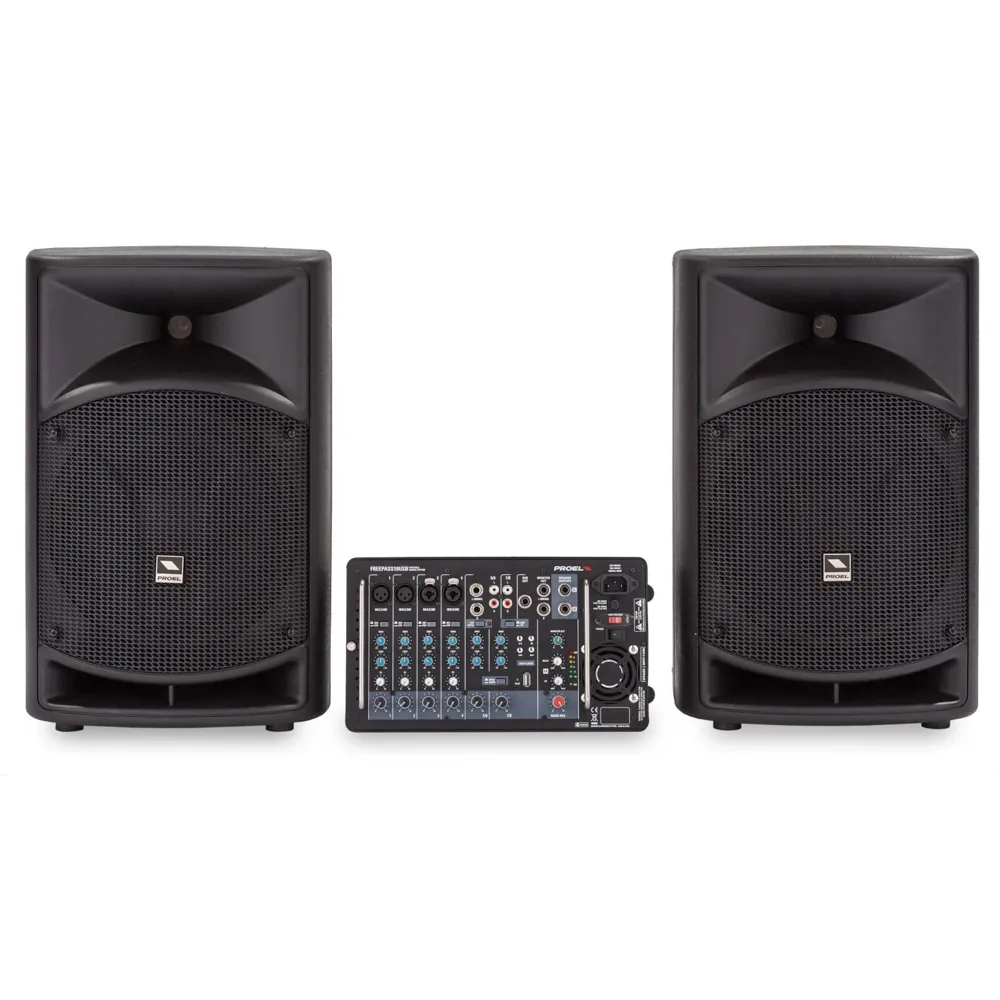

FREEPASS10USB is an all-in-one sound system combining in an ultra-portable, easy-to-use package everything musicians and other PA users need for playing: a full-featured mixer, a versatile MP3 player, a powerful CLASS D amplifier, two full-range speakers and high quality connection cables. FREEPASS10USB is a complete PA system that, even if compact in size, quick to setup and simple to use, is packed with a full set of features and delivers an unexpected sound quality for this kind of systems. The 8-channel, 2x250W powered mixer fits perfectly in one of the two speakers and it can be used as it is or detached with a simple operation. The second speaker includes a convenient and large compartment that can contain all the connection cables and other accessories. Two high-quality PROEL speaker cables with ultra-durable 1/4” metal jack connectors are also provided. The two speakers, hosted in lightweight PP cabinets, feature a horn-loaded 1.35” VC compression driver and a 10” woofer, able to provide a clean and powerful full-range sound with high SPL. A large handle on top of the cabinet and a pole holder on the bottom make transport and installation quick and easy. Thanks to its versatility and portability, FREEPASS10USB can be used in a variety of applications, such has live gigs for singers or small bands, education and sporting events, seminars and presentations.

4 MIC/LINE MONO inputs with phantom power
2 LINE STEREO inputs
2-band channel EQ
ECHO / DELAY effect
MUSIC/SPEECH main EQ
Built-in MP3 player with USB port
7-LED VU-METER
2-TRACK and MONITOR out
Dual 250W CLASS D power amplifier with SMPS
2-way speakers with 1” horn-loaded compression driver and 10” woofer
2 x 7.5mt. PROEL power cables with metal ¼” JACK
Convenient accessory compartment

MIXER Section
MONO inputs (4) MIC/LINE IN (COMBO)
STEREO inputs (2) STEREO LINE IN (2xJACK / 2xRCA)
Input EQ HIGH: +/-15dB 10 kHz, LOW: +/- 15dB 100 Hz
PHANTOM power + 15 V (CH 1-4)
Internal Effect ECHO (CH 1-4)
Outputs MONITOR OUT (2xJACK), SUB OUT (1xJACK), SPEAKER OUT (2xJACK)
Main EQ VOICE / MUSIC selector
Metering 6-LED VU-METER
MULTIMEDIA Section
Player Type USB
Compatible File Formats MP3
Control Interface Control buttons
AMPLIFIER Section
Amplifier Type Class D with SMPS (Switch Mode Power Supply)
Maxium Output Power 2 x 250 W @ 4 ohm (1 KHz, 1% THD)
Frequency Response MUSIC: 20 Hz - 20 KHz, VOICE: 80 Hz - 20 KHz
LOUDSPEAKER Section
Loudspeaker System 2-way system vented
High Frequency Device 1” compression driver 1.35" VC - horn loaded
Low Frequency Device 10” woofer with 2" VC
Angular Coverage 90° H x 60° V
Impedance 4 ohm
Frequency Response 65 Hz - 20 kHz (-10 dB)
SPL 1W 1m 95 dB
Construction Black polypropylene, metal grille
Handles 1 top
Pole Holder 1 bottom
GENERAL Specifications
Dimensions (WxHxD) Speaker: 32x50x29 cm / Mixer: 32x18x9 cm
Weight System: 25 kg / Speaker: 10.6 kg / Mixer: 2.4 kg
Power Supply 230/115 VAC (switchable) 50/60 Hz
Power consumption 400 W
