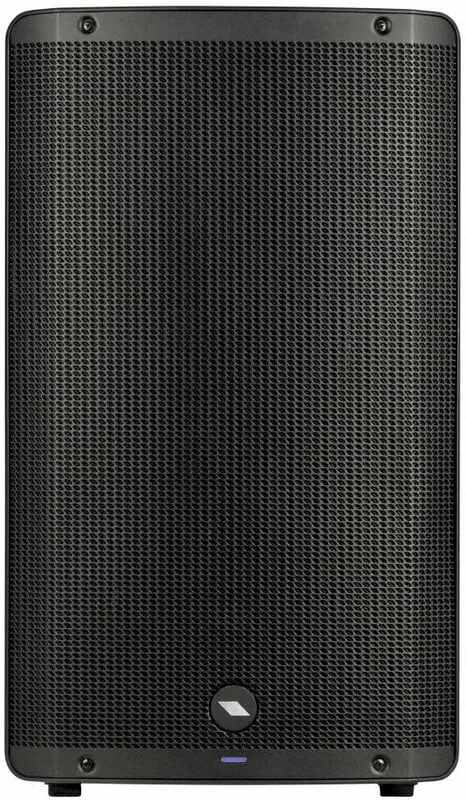

Proel DIVA12A 1000W DSP

DIVA12A and DIVA15A are digitally processed active loudspeaker systems featuring multiple inputs and a versatile BLUETOOTH connectivity.

Hosted in lightweight yet ultra-durable polypropylene cabinets with ergonomic handles, they combine selected transducers driven with a powerful 1000W CLASS-D amplifier with SMPS, featuring high headroom and an accurate dynamic control for the maximum undistorted output power.

The sophisticated pre-amp section includes an advanced processing with high-performance DSP engine and linear phase FIR filters, for a very smooth response and high-definition sound. An intuitive user’s interface with LCD color display and single-knob control is available for a quick selection and display of the 5 available EQ presets (MUSIC, LIVE, DJ, MONITOR, SPEECH), allowing the speakers to be perfectly adapted to any kind of application. Thanks to the built-in 3-channel mixer with MIC/GUITAR/LINE input selection, HIGH and LOW EQ controls and two WIRELESS USB inputs for the use of PROEL U24 microphone systems, the DIVA12A and DIVA15A can be used in a variety of applications also without external equipment.

The BLUETOOTH interface allows to reproduce audio in mono streaming with a single speaker or in stereo streaming with two speakers and the STEREO LINK (TWS) function.

2-way active processed loudspeaker system
1” high-definition compression driver with 1.35” VC and titanium diaphragm
Wide-coverage 90° x 60° constant directivity horn
12” long-excursion woofer with 2” voice coil
High-efficiency 1000 W peak Class D power amplifier with SMPS
Built-in 3-channel mixer with MIC/LINE inputs and HIGH & LOW EQ controls
High-definition DSP with 24-bit converters and FIR filters
5 DSP presets (MUSIC, LIVE, DJ, MONITOR, SPEECH)
BLUETOOTH audio interface with STEREO LINK
Color LCD display for the DSP editing
SPL MAX: 127 dB
Frequency response: 50 Hz - 20 kHz
Lightweight, compact and ultra-durable PP cabinet
2 ergonomic handles for effortless transportation
Slanted shape for the use as a stage monitor
Four M10 flying points

ystem type 2-way vented enclosure
High Frequency Device 1’’ compression driver with 1.35" voice coil and titanium diaphragm
Low Frequency Device 12" woofer with 2" VC
Angular Coverage 90° H x 60° V
Total Peak Power 1000 W
HF Amplifier Continuous Power 100 W Class AB
LF Amplifier Continuous Power 400 W Class D
Power Supply SMPS
System Processing DSP
Frequency Response 50 Hz - 20 kHz
Max SPL 127 dB

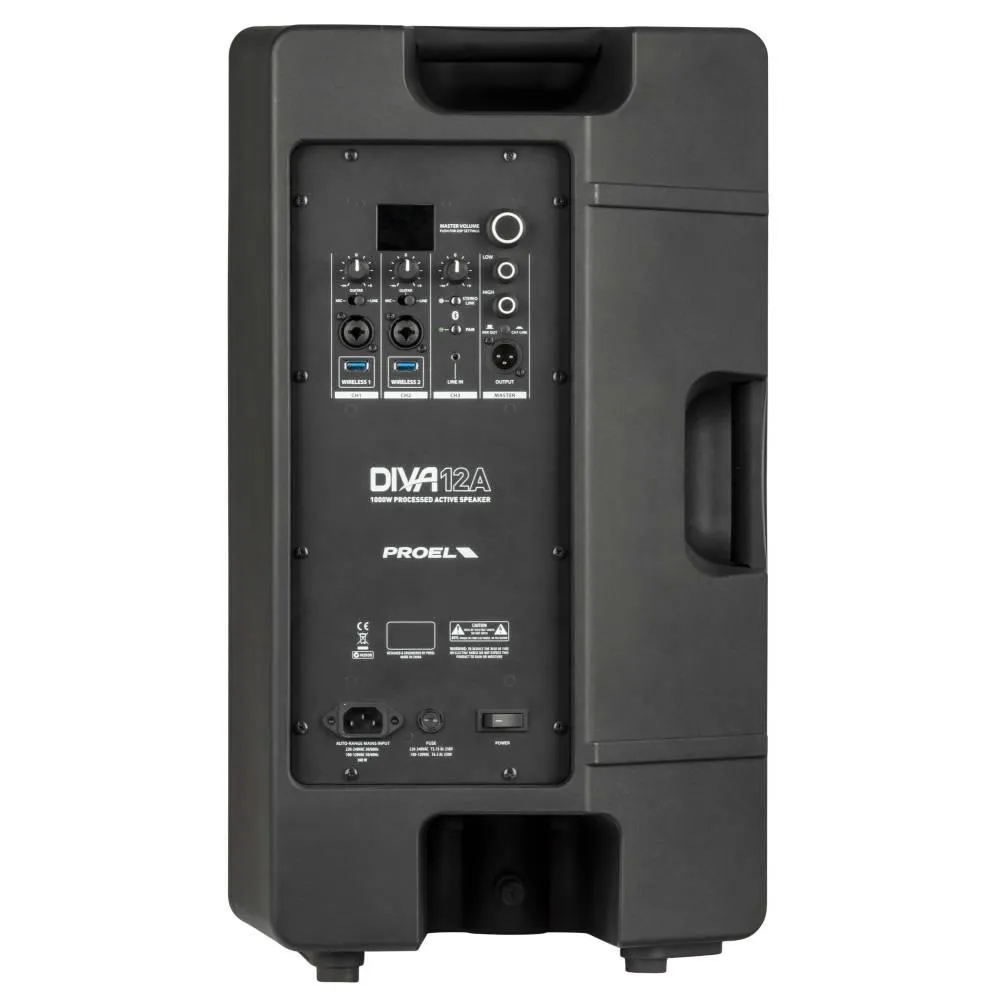

Inputs 2 x MIC/LINE (COMBO), 1 X STEREO LINE (MINIJACK), 2 x USB WIRELESS
Outputs 1 x selectable MIX OUT / CH1 LINK (M-XLR)
Controls CHANNEL LEVEL, INPUT SELECTOR, HIGH & LOW EQ, ROTARY PUSH ENCODER, COLOR LCD
Bluetooth Version 5.0, Audio Streaming, STEREO LINK (TWS)
Power Supply 100-120 V~ or 220-240 V~ at 50/60 Hz with self-switch
Rated Consumption* 300 W
Floor Monitor Angle 45°
Flying System 4 x M10 - top/bottom
Cabinet Material Polypropylene
Handles 1 x top, 1 x side
Mounting Pole 1 x bottom
Dimensions (W x H x D) 364 x 617 x 346 mm
Weight 16.0 kg (35.3 lb)
