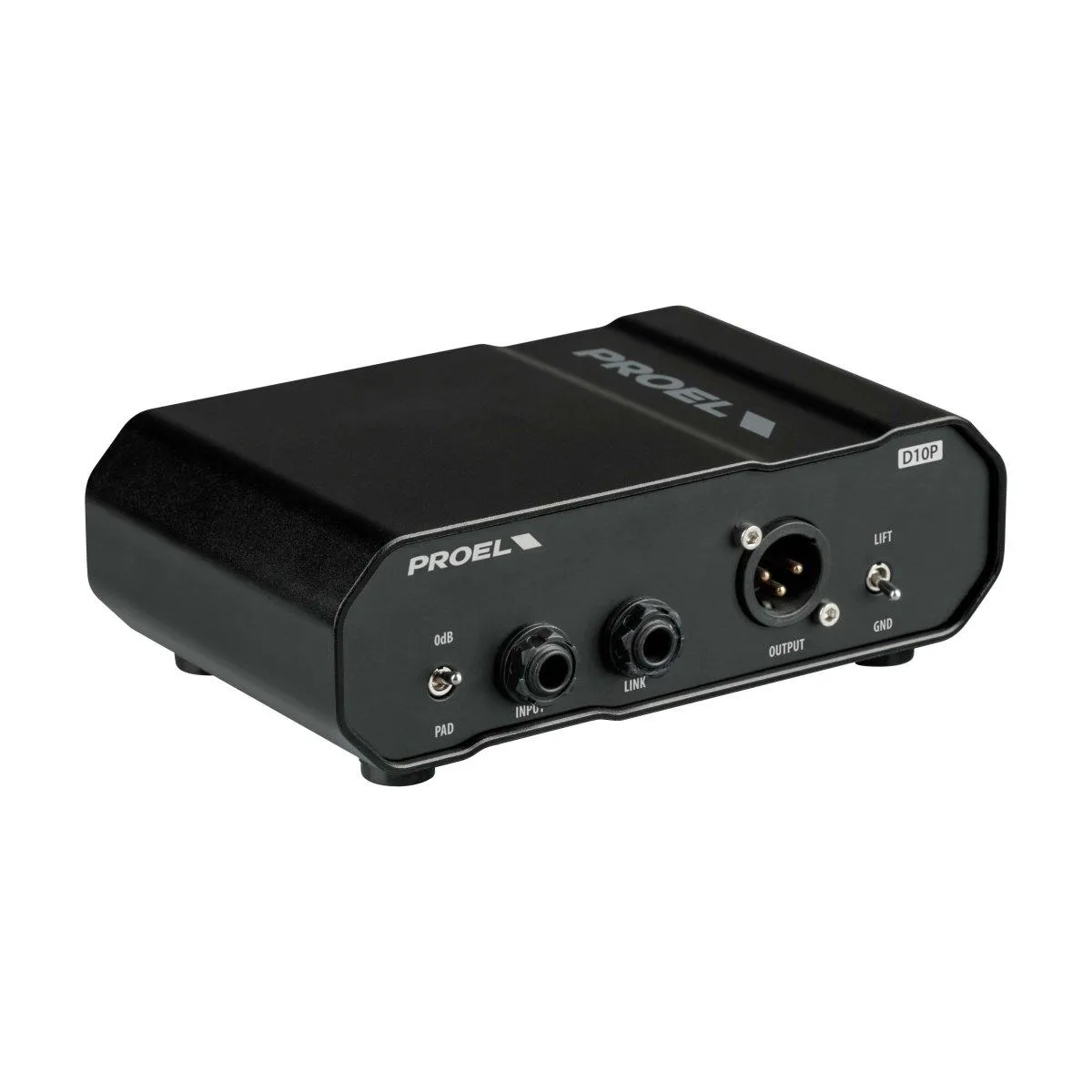

Proel D10P

DI Boxes perform several important functions: they are designed for impedance matching and balancing the signal of a guitar, a keyboard or any line-level output source, and for injecting directly the signal with very long connections to the XLR microphone inputs of a mixing console.

D10P is a passive direct box with transformer and does not require any external power such as phantom power or batteries to work. The advantage of a transformer is the possibility to avoid any electrical connection between the sound source and the mixer. This provides two huge benefits: with no electrical path, ground loops are eliminated and the cancellation of common-mode noise, like hum, is possible.

Technical Specifications
Input Section
Connectors 1 x 1/4″ JACK unbalanced
Link 1 x 1/4″ JACK unbalanced
Input Impedance >250 Kohm (no PAD) / 10 Kohm (with PAD)
Max Input Level +20 dBu (no PAD) / +40 dBu (with PAD)
Output Section
Connector XLR-M balanced
Min Load Impedance 600 Ohms or greater
Output Transformer Balanced (fully isolated)
Max Output Level 0 dBu
System Performance
Distortion THD+N 0dBu < 0.007 %
Frequency Response 10 Hz to 100 kHz (-3 dB)
Insertion Loss -20 dB
General
Controls PAD -20 dB, GND LIFT
Dimensions (W x H x D) 160 x 52 x 106 mm (6.30 x 2.05 x 4.17 “)
Weight 0,51 Kg
