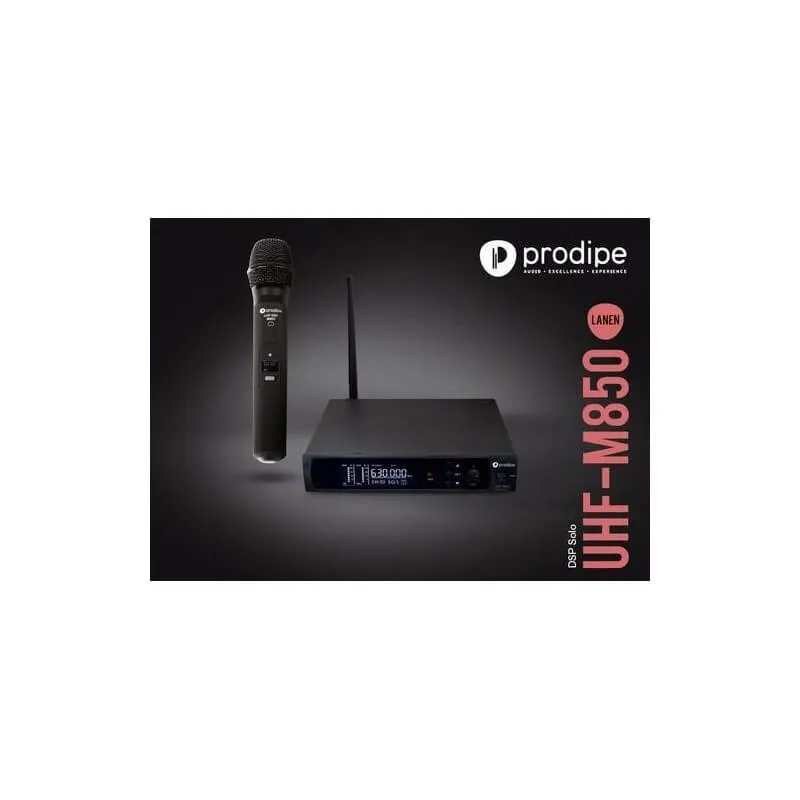

Prodipe M850 DSP DSP Solo Wireless Microphone System

DSP technology together with UHF provides a level of sound quality and precision you'd expect from a wired system.

Ludovic Lanen has helped us finalise the development of the M85 capsule. It's a capsule that replicates the texture and the colour of your voice with exceptional finesse and precision.

The new UHF M850 DSP mic contains the M85 capsule, which is one of the best on the market. It combines infrared automatic transmitter synchronisation (100 UHF frequencies) with a state-of-the-art DSP circuit to produce wireless sound that practically matches wired sound.

The Solo model which consists of a hand-held UHF mic, channel display screen and easily accessible mute button, along with an all-metal receiver (BNC antenna, balanced XLR output, unbalanced Jack output).



UHF M850DSP SOLO

Automatic IR search and selection of 100 available UHF frequencies
1 balanced XLR output + 1 unbalanced Jack output.
DSP circuit
LCD screen
8 M850 DSP Solo mics can be used simultaneously


With the Prodipe UHF M850 DSP range, UHF mics have moved up to the next level - wired sound quality in UHF.

Microphone:

Type: dynamic
Directivity: uni-directional
Sensitivity: -71dB ±3dB (0dB=1V/Pa at 1KHz)
Frequency response: 50Hz - 16KHz
Output impedance: 600Ω ±30%


System - principal fonctions:

Transmission type: UHF
Bandwith: 630 - 655MHz
Frequencies: 1 x 100
Dynamic: >90dB
Harmonic distorsion: <0.1%
Frequency response: 30Hz at 20KHz
Range: 60 M


System - Transmitter:

Power: 10mW
Modulation: FM
Sensitivity: RX < -94dBm
Power source: LR6 (AA) 1.5V × 2 (approx. 8h)


System - Receiver:

Power supply: AC100~240V (50-60Hz)
Voltage: 12V S/N RATIO >96dB
Unbalanced audio output: 1 x Jack 6.35 mm
Balanced audio output: 1 x XLR
