Pioneer DJ DJM-A9

Stunningly clear sound quality
Evolved playability
Sound Color FX with world’s first Center Lock
Newly advanced Beat FX
Expanded connectivity
Enhanced mic section
Dual independent headphone outputs and booth EQ

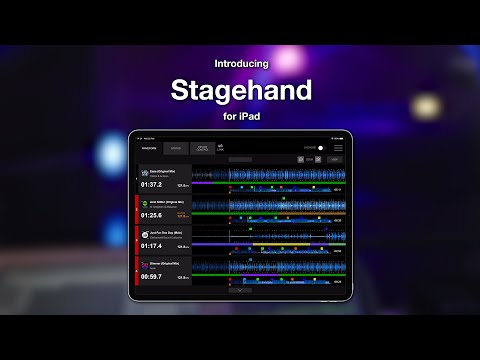

Support for the Stagehand app and built-in Sound Check function
Support for rekordbox and Serato DJ Pro
DJM-REC app support for reliable recording
Video and lighting app support

STUNNINGLY CLEAR SOUND QUALITY
The next-generation club sound comes from extensive development and ne-tuning of existing technology, plus brand-new components including ESS Technology 32-bit high-quality A/D and D/A converters in the channel section and outputs respectively.

EVOLVED PLAYABILITY
The DJM-A9 features increased spacing around the EQ knobs, bright LEDs in the channel section, optimized frequency response on the isolators, slicker channel faders than the DJM-900NXS2, plus the third-generation MAGVEL FADER crossfader.

SOUND COLOR FX WITH WORLD’S FIRST CENTER LOCK
Turn on the brand-new Center Lock feature and, when you’re using the popular Sound Color FX, each knob will stop turning when you reach the center position so you can’t go too far and accidentally switch from the hi/low to the opposite parameter.

NEWLY ADVANCED BEAT FX
A new color display helps you to quickly and accurately understand the status of the selected Beat FX, and it features lighting that corresponds with the X-Pad’s horizontal arrangement, enabling more intuitive control with a simple nger slide. There are 14 Beat FX to play with including 3 new ones: Mobius, Triplet Fliter, and Triplet Roll.

ENHANCED MIC SECTION
The phantom powered input means you can connect a high-quality condenser mic directly to the DJM-A9, and there are 3 new microphone effects with a dedicated reverb effect so you can change the sound of your voice and hype up the crowd.

EXPANDED CONNECTIVITY AND DUAL INDEPENDENT HEADPHONE OUTPUTS
Connect 2 different PC/Mac systems at the same time thanks to the dual USB Type-B and USB Type-C ports (there are 2 of each) and route wireless audio to any channel via the Bluetooth input. The Multi I/O section has an independent channel selector, giving the DJM-A9 true send capabilities. There are dual headphone outputs too, each with their own cue buttons, volume knobs, and mix balance knobs, so you can monitor tracks independently from another DJ.

INPUTS
DIGITAL x 4 (coaxial)
LINE x 4 (RCA)
PHONO x 4 (RCA)
MIC x 2 (XLR & 1/4” TRS jack x 1, 1/4” TRS jack x 1)

OUTPUTS
MASTER x 2 (XLR x 1, RCA x 1)
BOOTH x 1 (1/4” TRS jack)
REC x 1 (RCA)
DIGITAL MASTER x 1 (coaxial)
PHONES x 4 (1/4” stereo jack x 2, 3.5-mm stereo mini jack x 2)

USB
USB Type-A x 1
USB Type-B / USB Type-C x 2

OTHERS
SEND (1/4” TS jack) x 1 RETURN (1/4” TS jack) x 1
LAN terminal (100BASE-TX) x 1

Frequency Response: 20 Hz – 40 kHz (LINE)
S/N Ratio: 114 dB (USB, Digital IN) , 88 dB (PHONO), 105 dB (LINE), 79 dB (MIC 1, MIC 2)
Total Harmonic Distortion: 0.005 % (LINE-MASTER1)
Power Consumption: 46 W
Maximum Dimensions: 407.4x458.3x107.9 mm (with the wireless antenna 140.7 mm)
Weight: 10.2 kg

Included accessories: Power cord, Quick Start Guide, Precautions for Use
Compatible Software: Rekordbox, Serato DJ Pro, ShowKontrol, PRO DJ LINK Bridge
