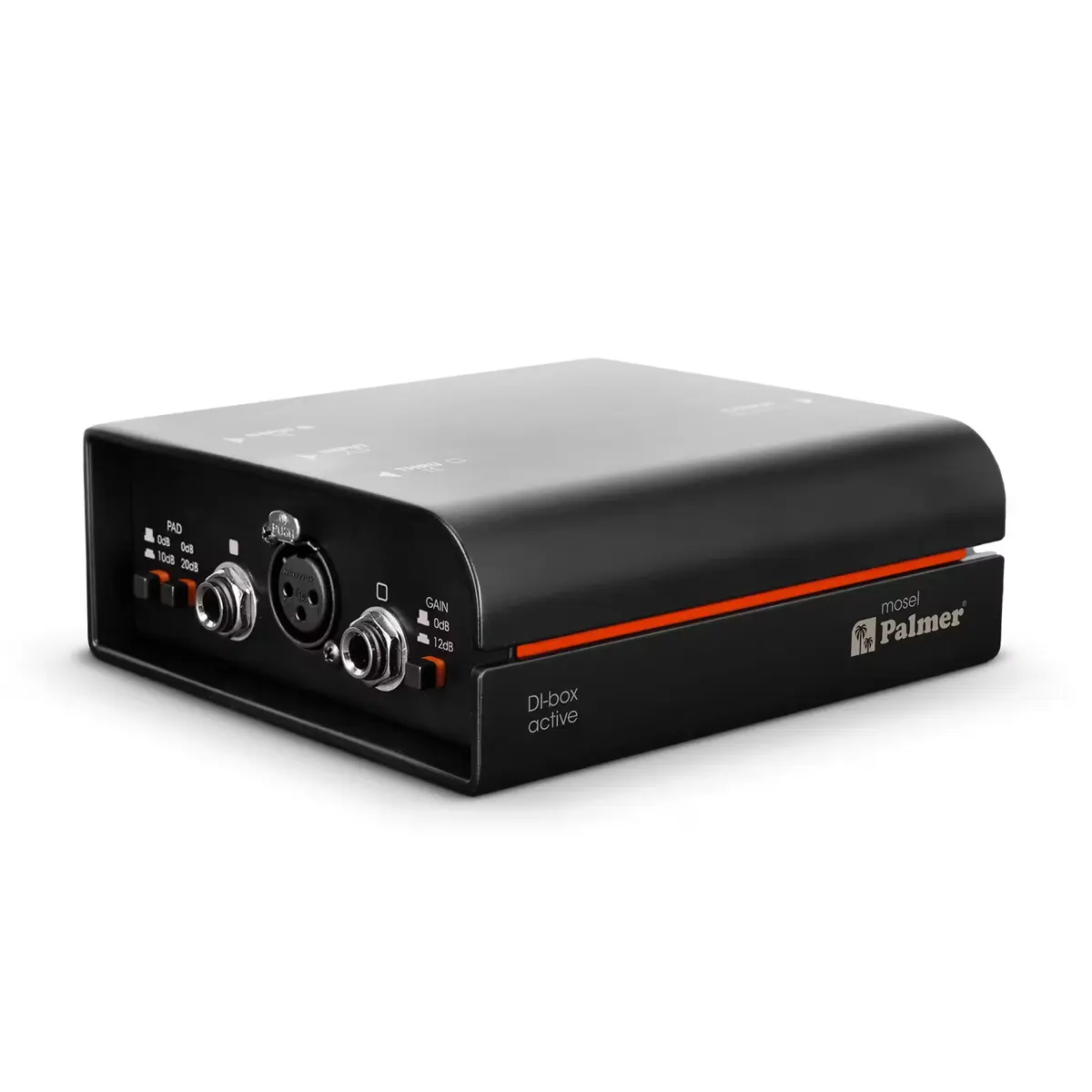

Palmer River Mosel

Need a little more? Are you looking for a DI box that's not just great for the stage, but that also exploits the full sound potential of your instrument in the studio? The Palmer mosel is a DI box of uncompromising premium quality with useful additional features. Its active switching guarantees a particularly high input impedance for punchy, pure sound. The unbalanced, high impedance signal from magnet and piezo pickups is changed to a low impedance, balanced output signal with no loss of brilliance - even on longer cable runs. The Palmer mosel is also suitable for synthesisers and other electronic keyboards, since it is extraordinarily stable.

The output transformer - which offers galvanic separation to eliminate ground loops - can process studio levels of up to +20 dBu. In addition, the mosel is enclosed in Mu-metal to eliminate electromagnetic interference.

The Palmer mosel offers two extra special features: a variable pad (-10/20/30 dB) and a boost function (+12 dB). These features allow you to always achieve the optimal level for noise-free recordings. The mosel is also extemely practical because the unbalanced input exists not only in jack format, but also as XLR sockets. This makes unstable adapters unnecessary. The ground lift switch - to separate from ground lifts - also has a soft lift setting. Power for the mosel can be provided either by a 48V phantom power unit or a 9V battery.

The Palmer mosel is a high-end active DI box for studio use and demanding PA work. And for times when good is just not good enough! Choose the best - choose the mosel.

Balancing and impedance matching for guitar/bass/keyboards/synthesisers
Premium design: high headroom, low noise floor, ultra-efficient ground lift
Prevents humming through galvanic transformer isolation with Mu-metal shielding
Neutral sound thanks to active input stages with high impedance
THRU connection for passing the input signal to the amplifier
Handles even very high-level inputs without distortion
Variable pre-attenuation for high-level inputs plus a boost for weak signals
Power supply via 9V battery or 48V phantom power unit
Road-ready casing made of aluminium and steel plate
Incl. rewritable tour label for attachment on to the back of the mosel
Engineered in Germany

Type Active
Included Accessories Rubber feet, Tour label
Isolated transformer Yes
Transformer Ratio 1:1
Ground Lift Soft, Hard
On/Off switch Yes
Frequency response (±1 dB, rel. 1 kHz) 20 - 20,000 Hz
Number of inputs 1
Number of outputs 1
Number of channels 1
Input signal type Unbalanced
Input connector types XLR 3-pole female, 6.3 mm Jack TS
Number of mic/line inputs 1
Number of instrument inputs 1
Max. input level (< 1% THD, rel. 20 Hz) 14 dBu
Max. input level (< 1% THD, rel. 1 kHz) 21 dBu
Input impedance 600 kΩ
Input padding 0 dB, 10 dB, 20 dB, 30 dB
Input gain 0 - 12 dB
Output signal types Balanced
Output connector types XLR 3-pole male
Output impedance 83 Ω
Linked outputs per channel 1
Max. output level 14 dBu
Width 140 mm
Height 50 mm
Depth 128 mm
Weight 0.72 kg
