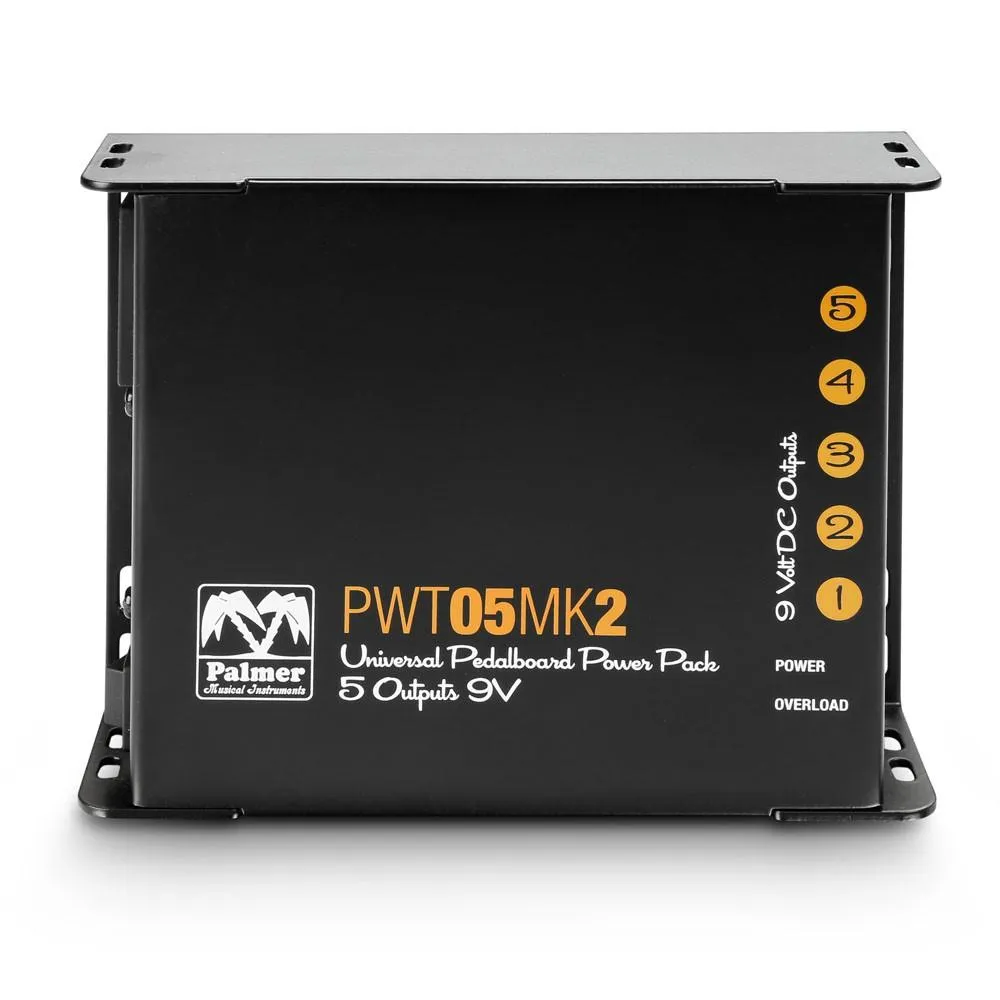

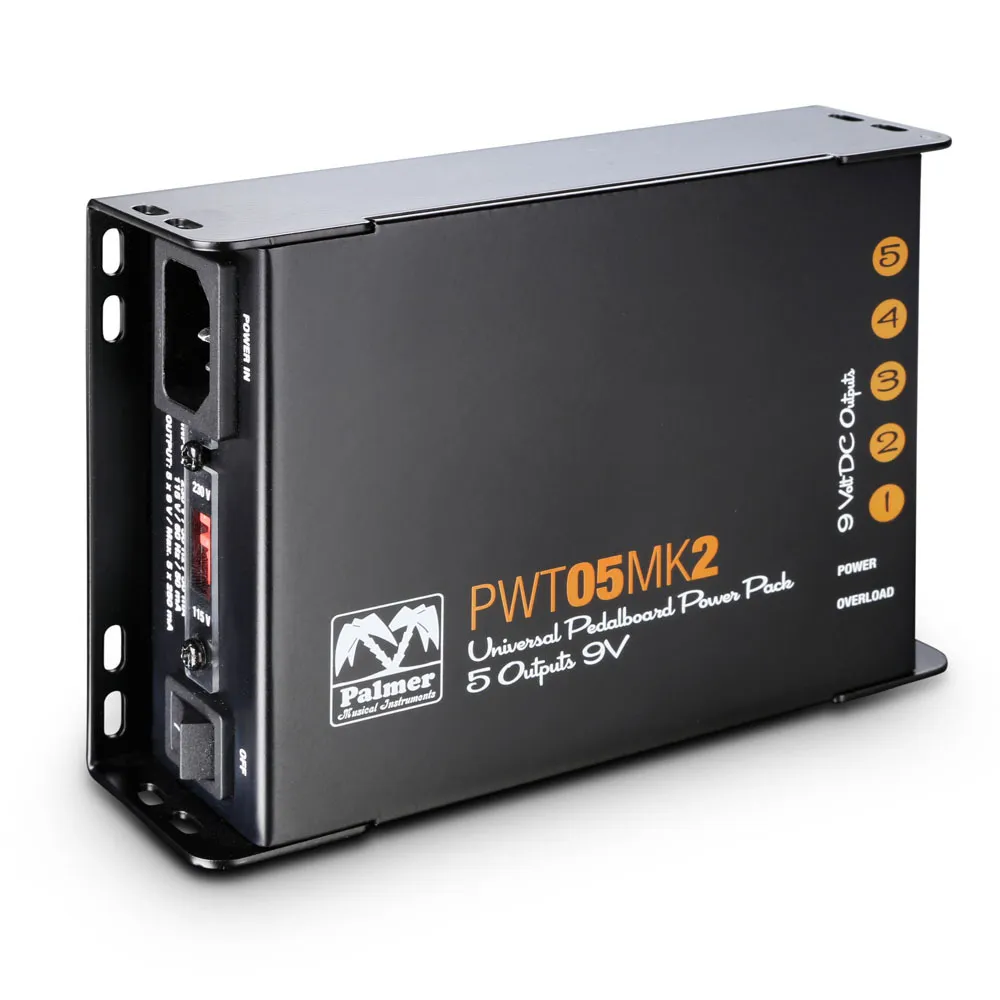

Palmer PWT 05 MK 2

Universal 9V Pedalboard Power Supply 5 Outputs
With a stable 250 mA on each of the five center negative barrel style outlets the compact Palmer PWT 05 MKII is most suited to virtually any pedalboard size. To deliver clean DC power to your pedals and eliminate ground loops between them and the associated hum the outlets are single isolated.

The PWT 05 MKII is protected against overloading and comes with 25 and 50 cm long connection cables, as well as two Y-cables. The first one, with a black connector, connects two 9 V outputs to increase the current intensity to a massive 500 mA, the other one, with a white connector, connects two 9 V outputs to double the voltage to 18 V. Also included is a 1-into-5 daisy chain that lets you power five pedals from one output if their total current draw does not exceed 250 mA. The rugged enclosure of the Palmer PWT 05 MKII provides mounting and cable relief options while the IEC mains inlet and voltage selector enable worldwide use.

Universal 9 volt DC power supply
5 outlets with ultra stable 250 mA each
Single isolated
Overload protection
Roadworthy enclosure
Mounting and strain relief options
Power, merge and daisy chain cables included

Product type Power Supplies

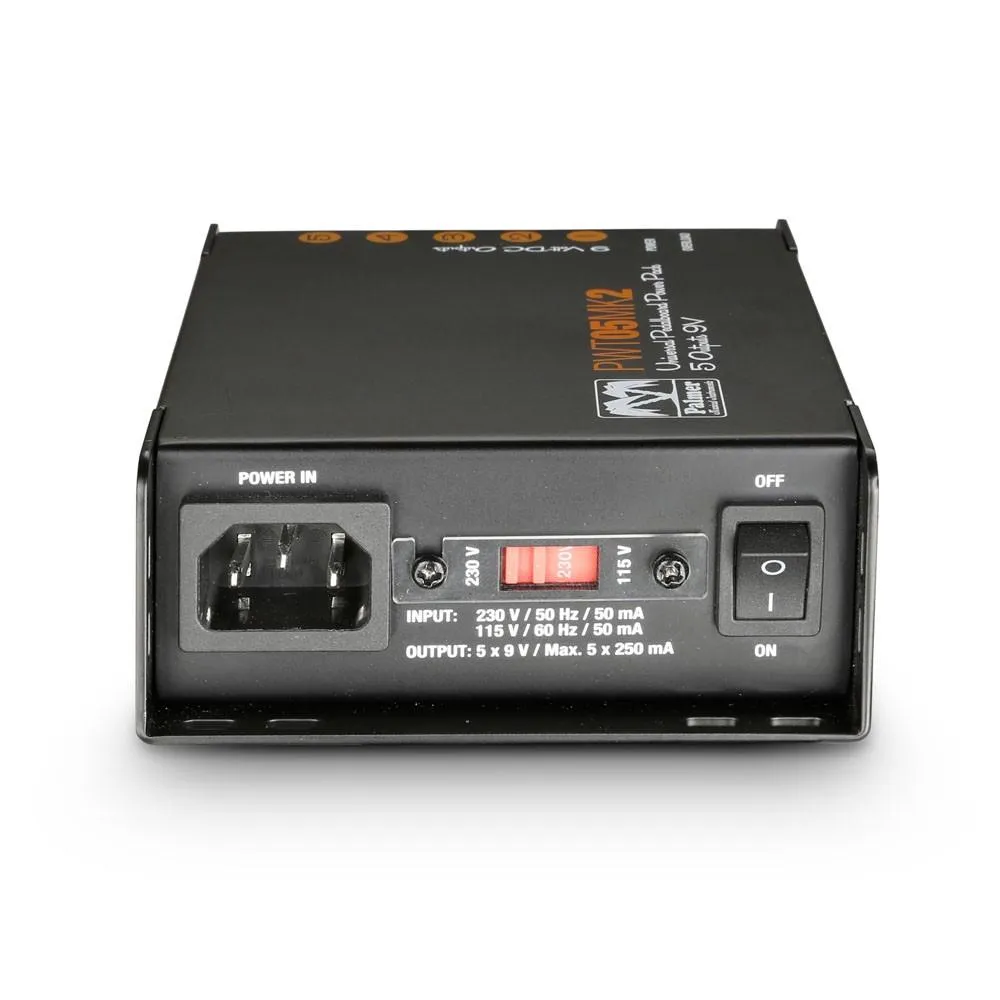

Mains connector IEC socket
Input voltage 230 V
Outputs 5
Output connectors 2.1 x 5.5 mm
Output voltage 9 V
Max. output current each output 250 mA A
Isolated outputs Yes
Polarity Center negative
Cord length 25 - 50 cm
Indicators Overload, Power
Controls mains switch (on/off), voltage selector switch
Width 105 mm
Depth 140 mm
Height 45 mm
Weight 1,5 kg
