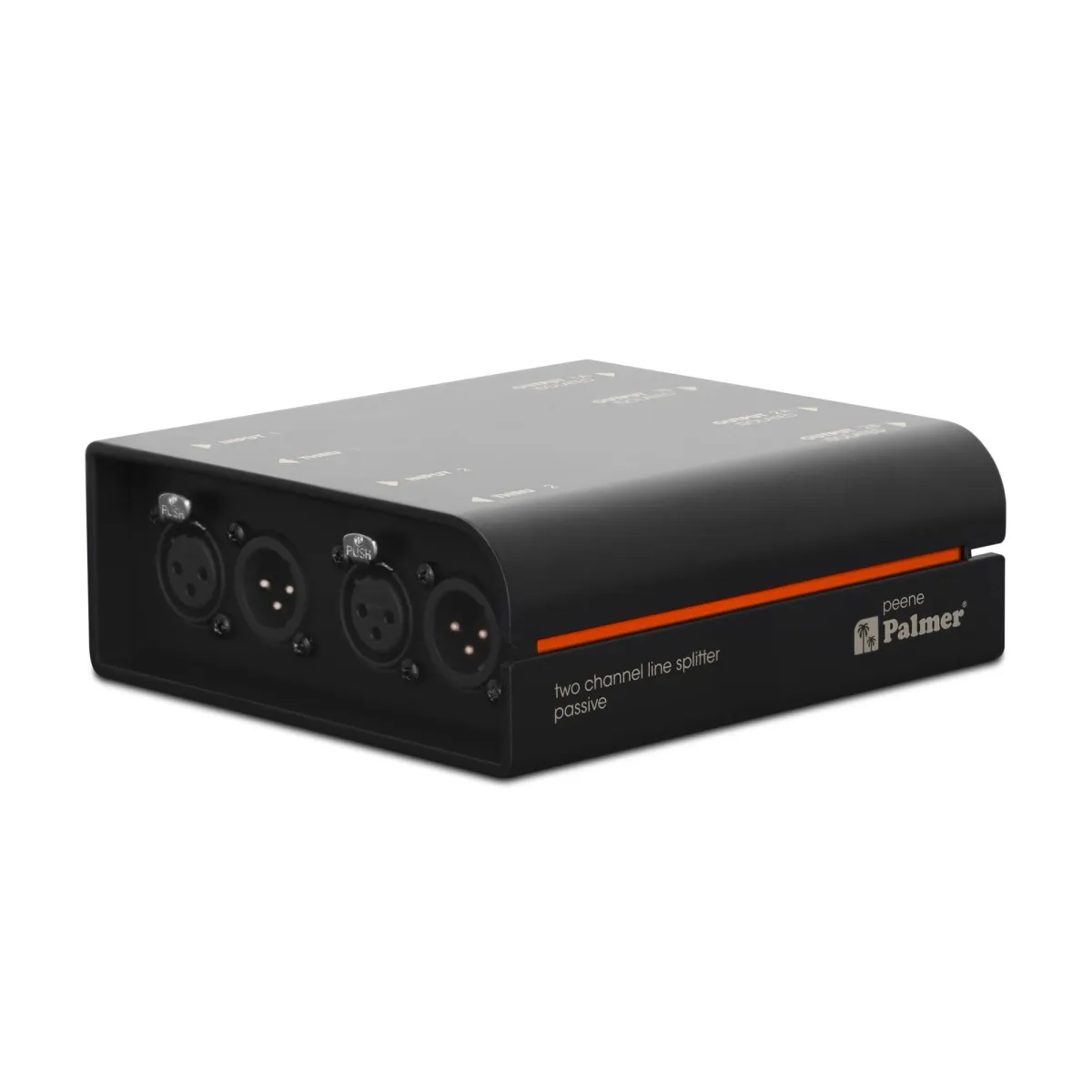

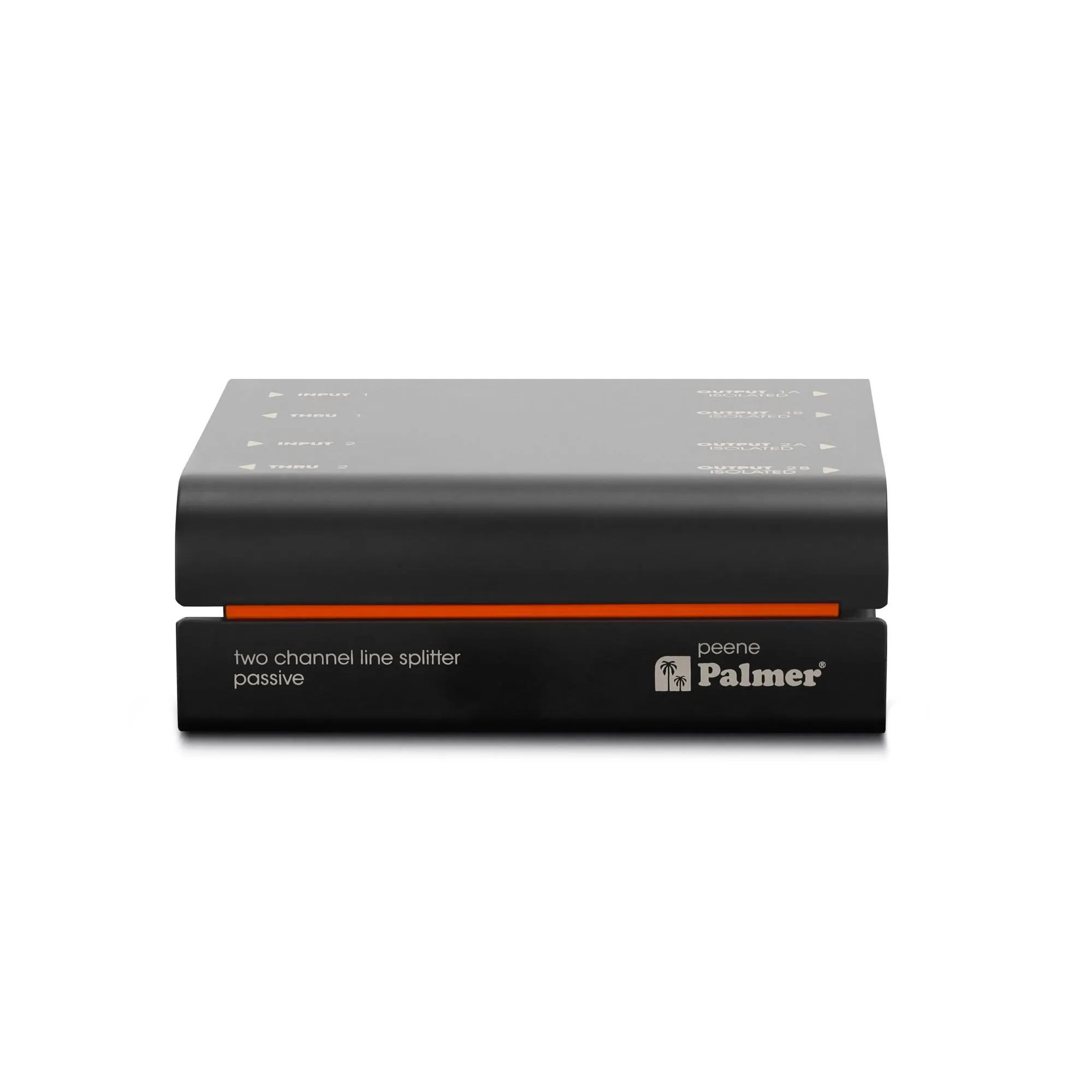

Palmer Peene

Passive 2-Channel Line Splitter

Do you want to send a line signal - stereo or dual mono - to multiple devices, without interference such as hum? Then the Palmer peene line splitter box is the right tool for you. It works on a purely passive basis with large isolation transformers, which can even handle high-level signals without distortion. So, for instance, you can send the stereo output signal from the mixer to several power amps, without any ground loops. The Palmer peene also includes a ground-lift switch. In addition to the two transformer-isolated outputs, the peene also directs the input signal on directly via a link out.

The Palmer peene is everything you need to distribute line signals to several devices and is a reliable audio tool with ultra-simple handling and professional sound characteristics.

Distributes two input signals to two outputs each + link outs
For line signals
Galvanic isolation of outputs by transformers

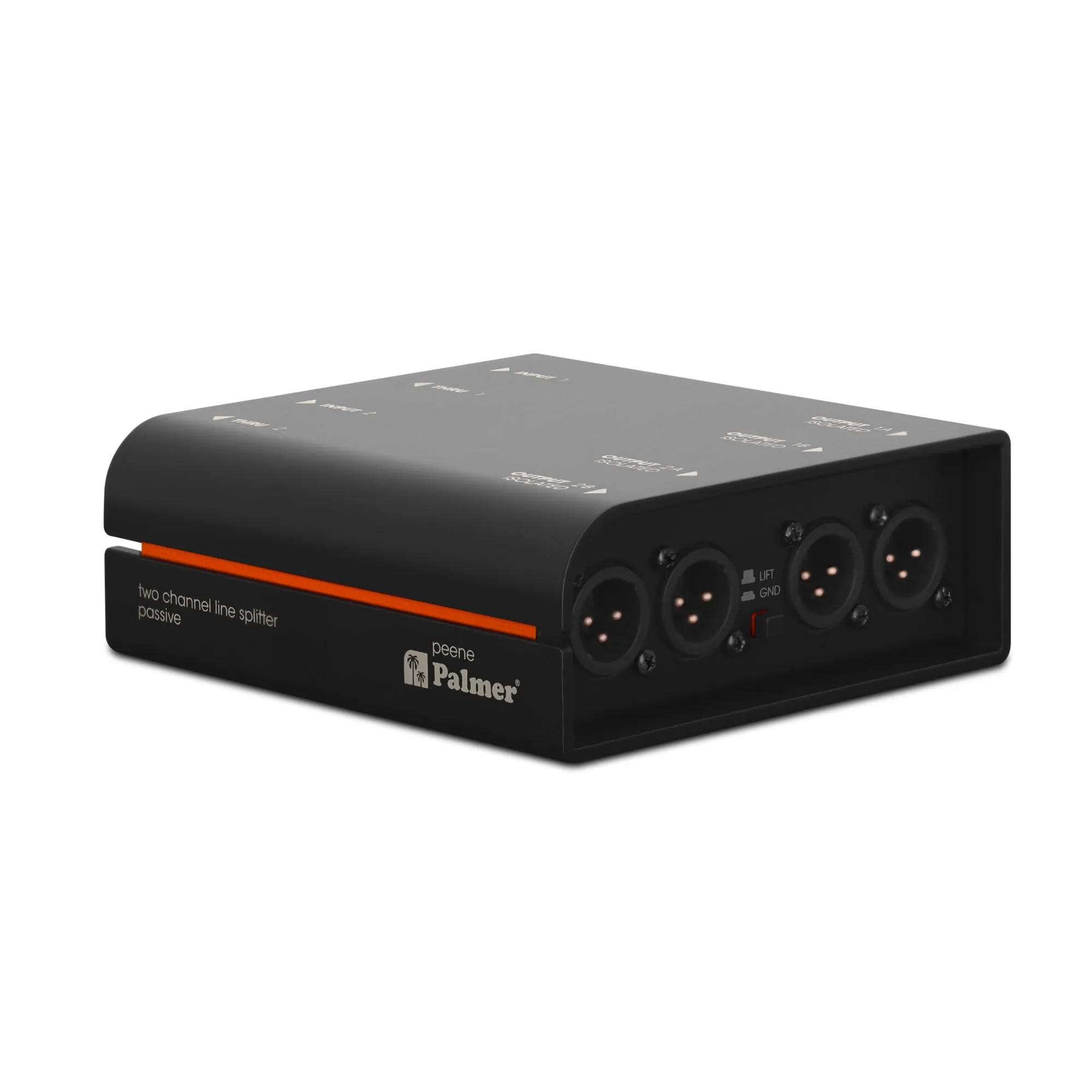

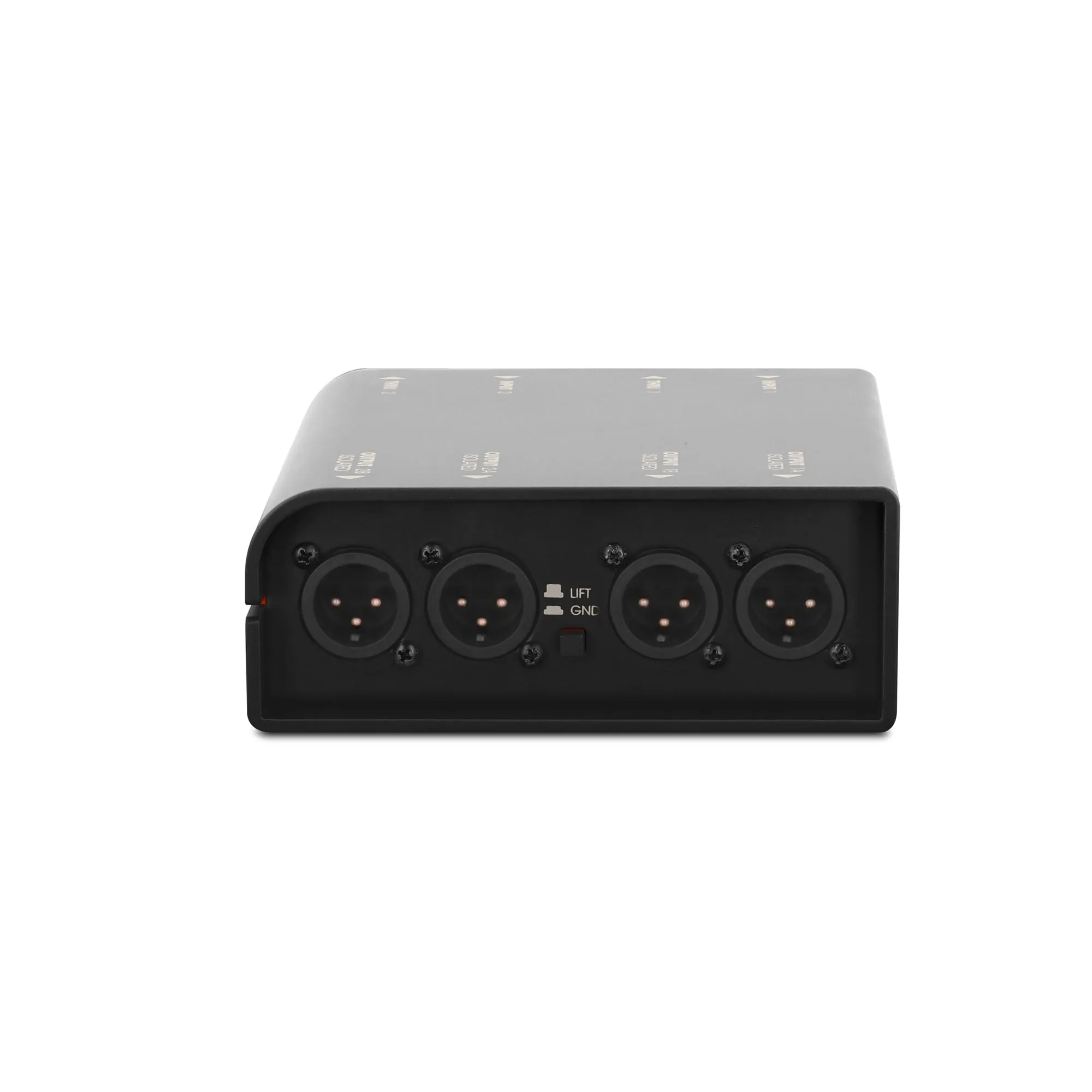

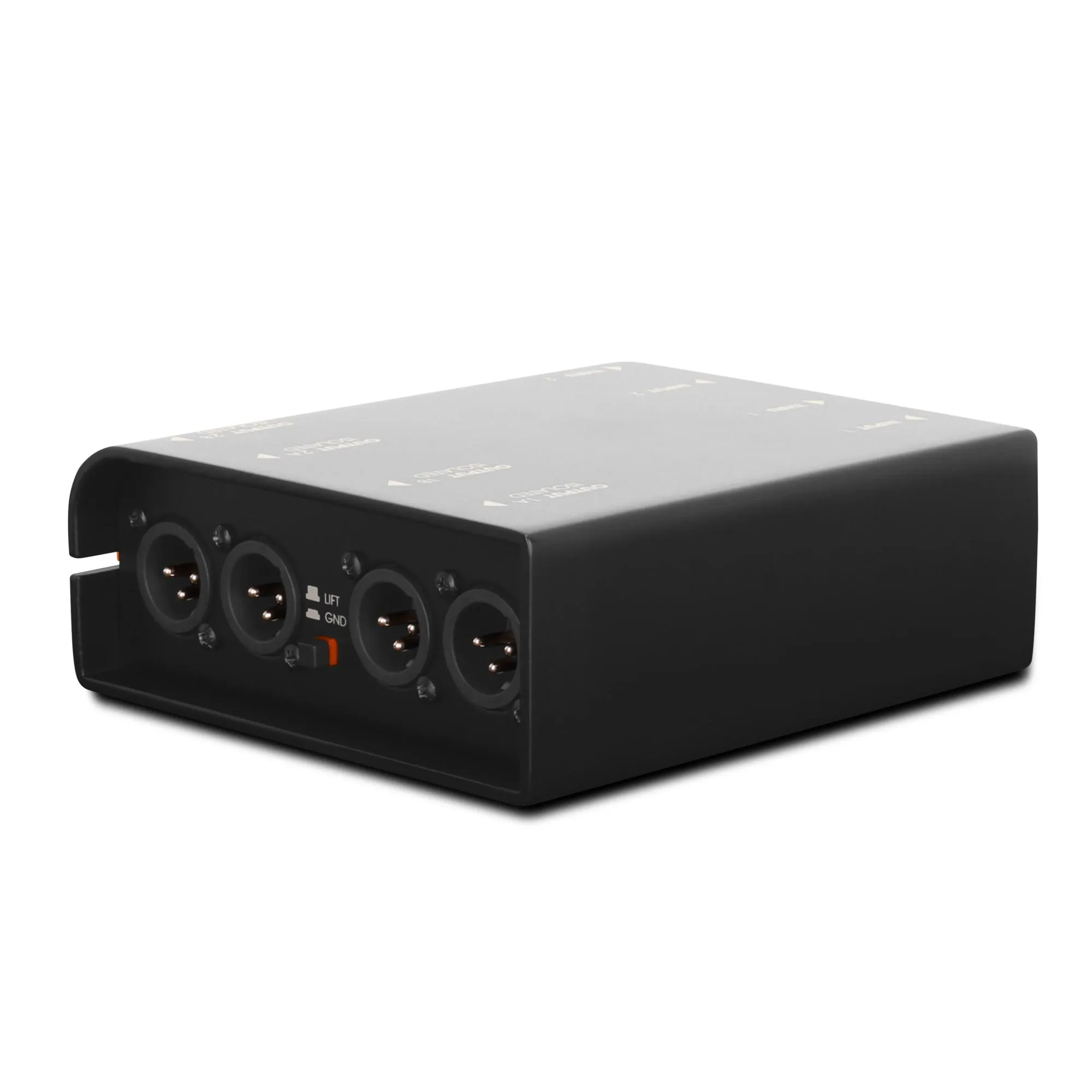

Switchable ground lift to isolate ground loop hum
Neutral sound
High headroom (+20 dBu max. input level)
Passive construction, no power supply required
Extremely fail-safe
Solid casing made of aluminium and steel

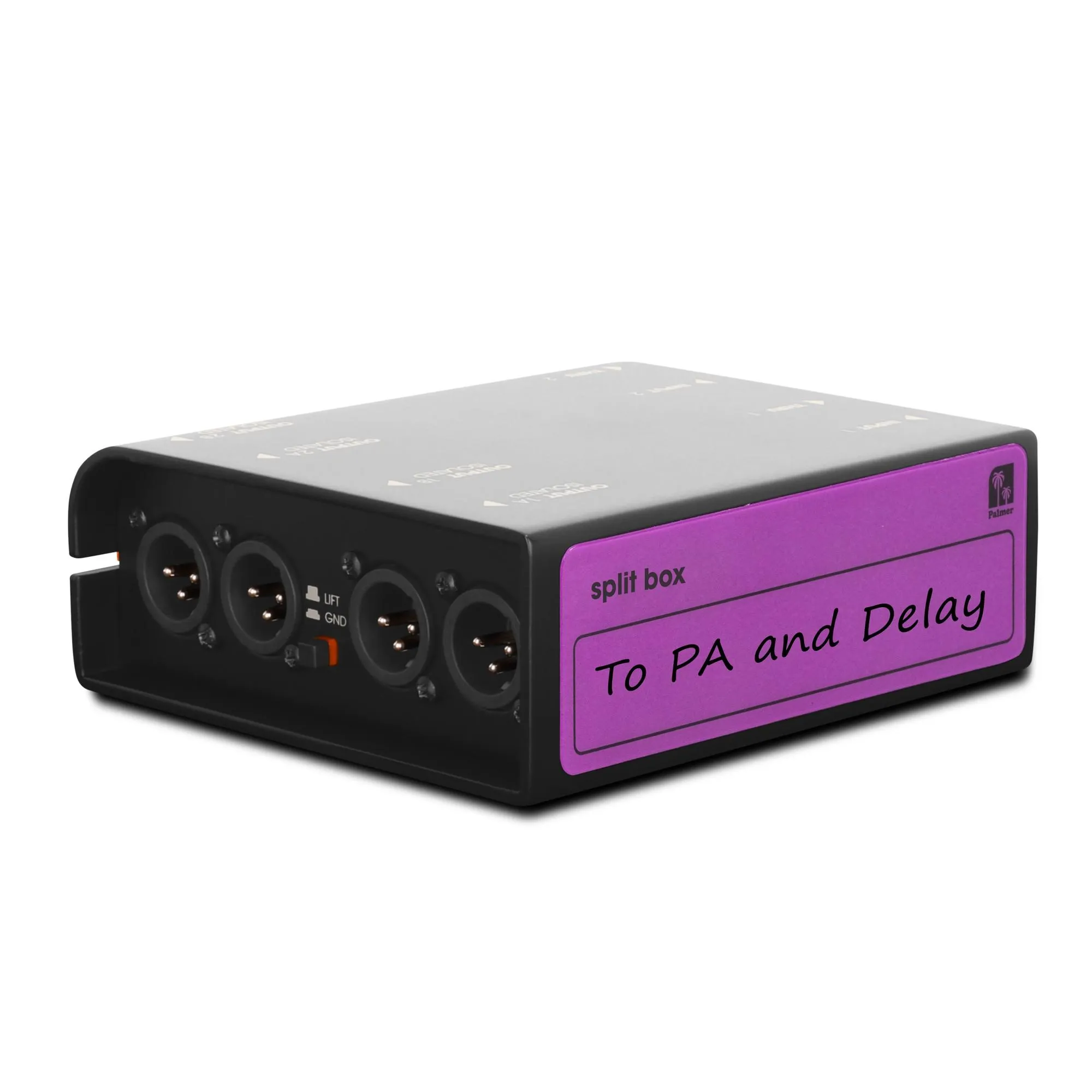

Incl. rewritable tour label for attachment onto the back of the peene
Engineered in Germany

Product type Line Splitter
Channels 2
Type passive
Transformer isolated Yes
Number of inputs 2
input type balanced
Input connectors XLR
Number of outputs 4
Output type balanced
Output connectors XLR
THRU outputs per channel1
Ground lift switch Yes
Housing Aluminium continuous casting
Dimension (H/W/D) 50 x 140 x 128 mm
Weight 0,805 kg
Ambient temperature during operation -20 - 70 °C
Relative Humidity < 80 %, not condensing
Accessories (included) Inscription label (tour label), rubber feet

Max. input level (< 1% THD, 20 Hz) + 20 dBu
Max. input level (< 1% THD, 1 kHz) + 32 dBu
Frequency response (±1 dB, relative 1 kHz) 10 Hz - 30 kHz
Input impedance (1 kHz) 6.8 kOhm
Output impedance (1 kHz) 500 Ohm(s)
THD (30 Hz, +4 dBu, unity, unweighted)< 1 %
THD (1 kHz, +4 dBu, unity, unweighted) < 0,02 %
IMD (SMPTE) (60 Hz / 7 kHz, 4:1, +4 dBu)< 0,01 %
Transformer ratio 1:1:1
