Palmer Grand Audition MKII

When tasting wine or comparing loudspeakers, neutrality is key. The GrandAudition MKII facilitates this by allowing the connection of 16 individual loudspeakers or eight pairs, plus eight subwoofers, all managed through balanced XLR connectors in a compact 19" rack.

Its intuitive browser-based app enables users to switch between outputs or configure combinations easily, making it ideal for presentations, trade shows, and multi-room audio distribution. The system also features two balanced XLR inputs for source material and a built-in USB media player supporting various formats.

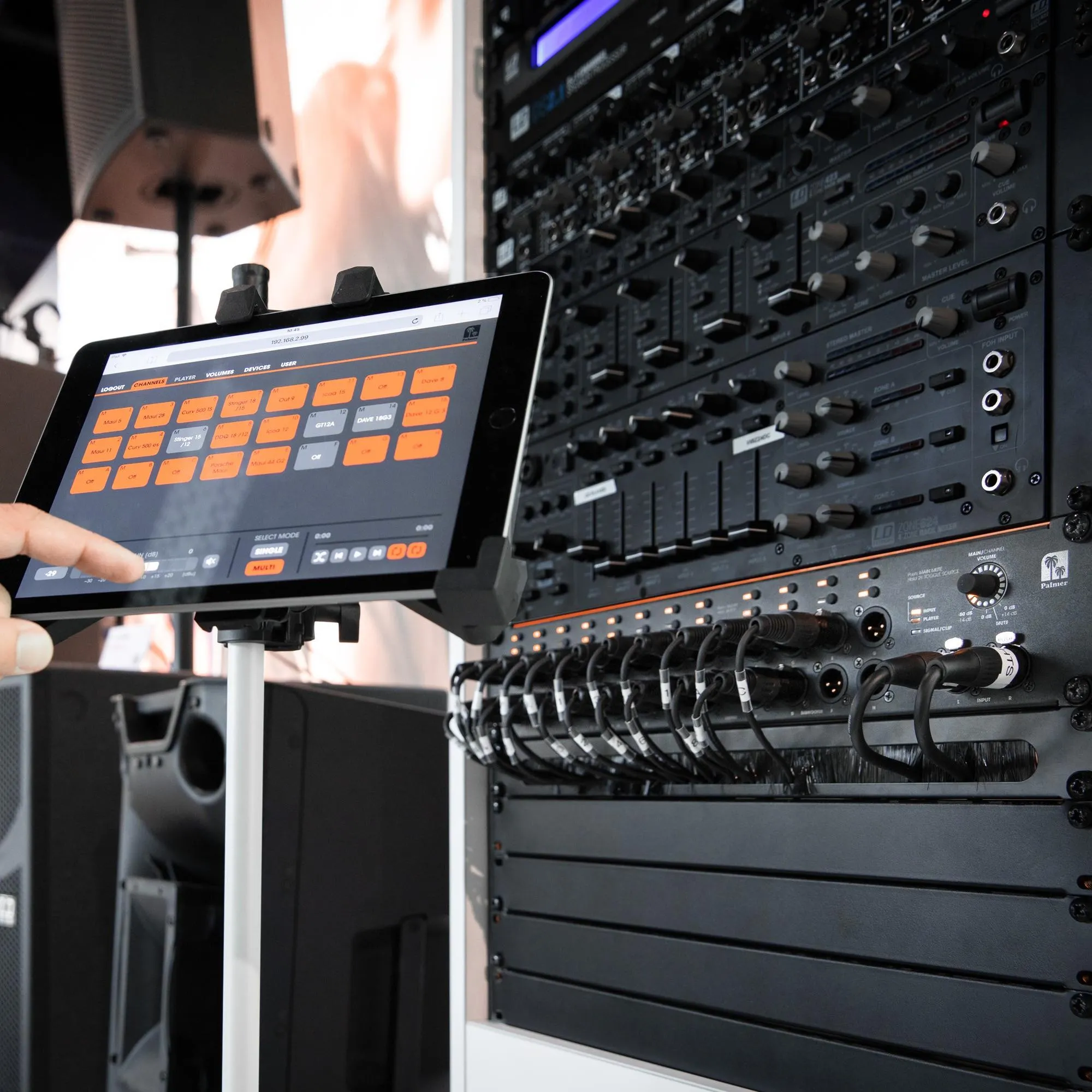

The remote control offers convenience via tablets or laptops, allowing for complete configuration, including channel naming and media management. Each output level can be adjusted individually, enabling precise loudspeaker comparisons for customers.

Additionally, the GrandAudition MKII can be cascaded for expanded routing and supports both powered and passive loudspeakers. Its versatility makes it invaluable for conference technology, trade fairs, and measuring laboratories, all while ensuring professional sound quality.

Item highlights:
24 switchable balanced line outputs
Intuitive browser-based control software
Individual level control on each output
Mono and stereo modes
Multiple channel selection
Usable for multi-room audio distribution
High-quality analogue signal path
Instant channel switching with no noise or interference
XLR line inputs and built-in USB media player
Up to three devices cascadable

Product type: Switches
Type: Analog
Signal processing: Analog
Ethernet Functions: Yes
Number of inputs: 2 x balanced
Number of outputs: 24 + 2 balanced

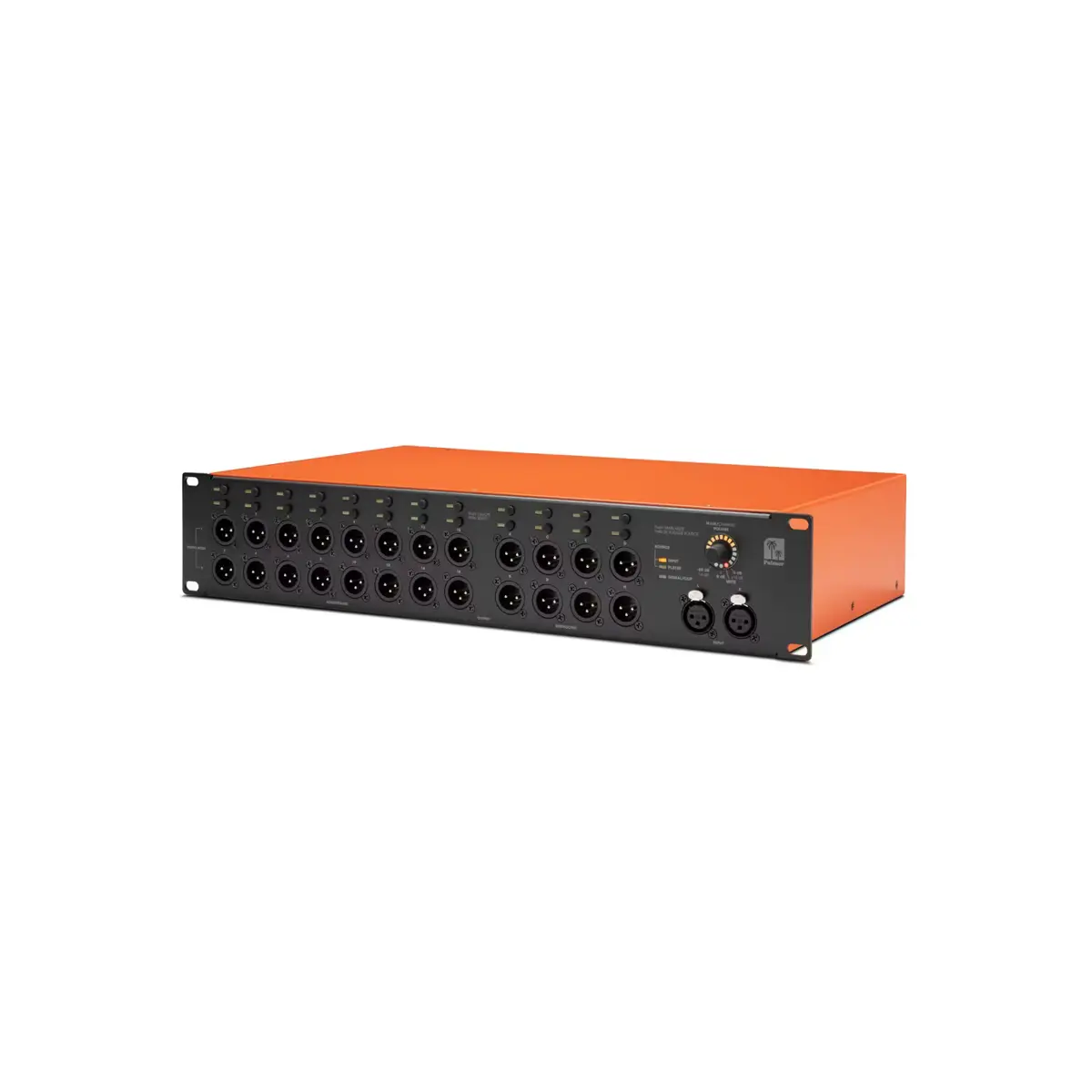

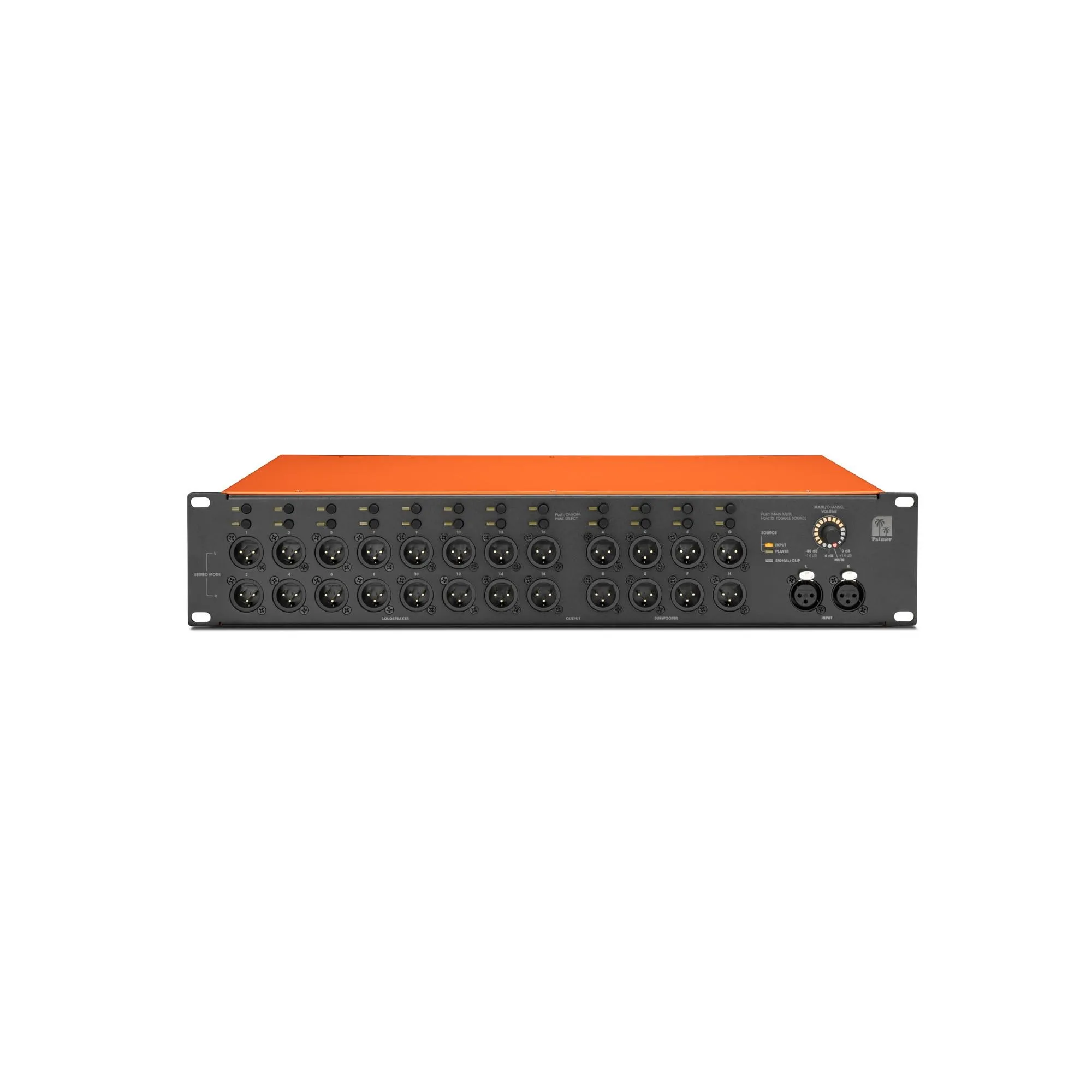

Front panel controls: 1 x Encoder pushbutton, 24 x pushbutton

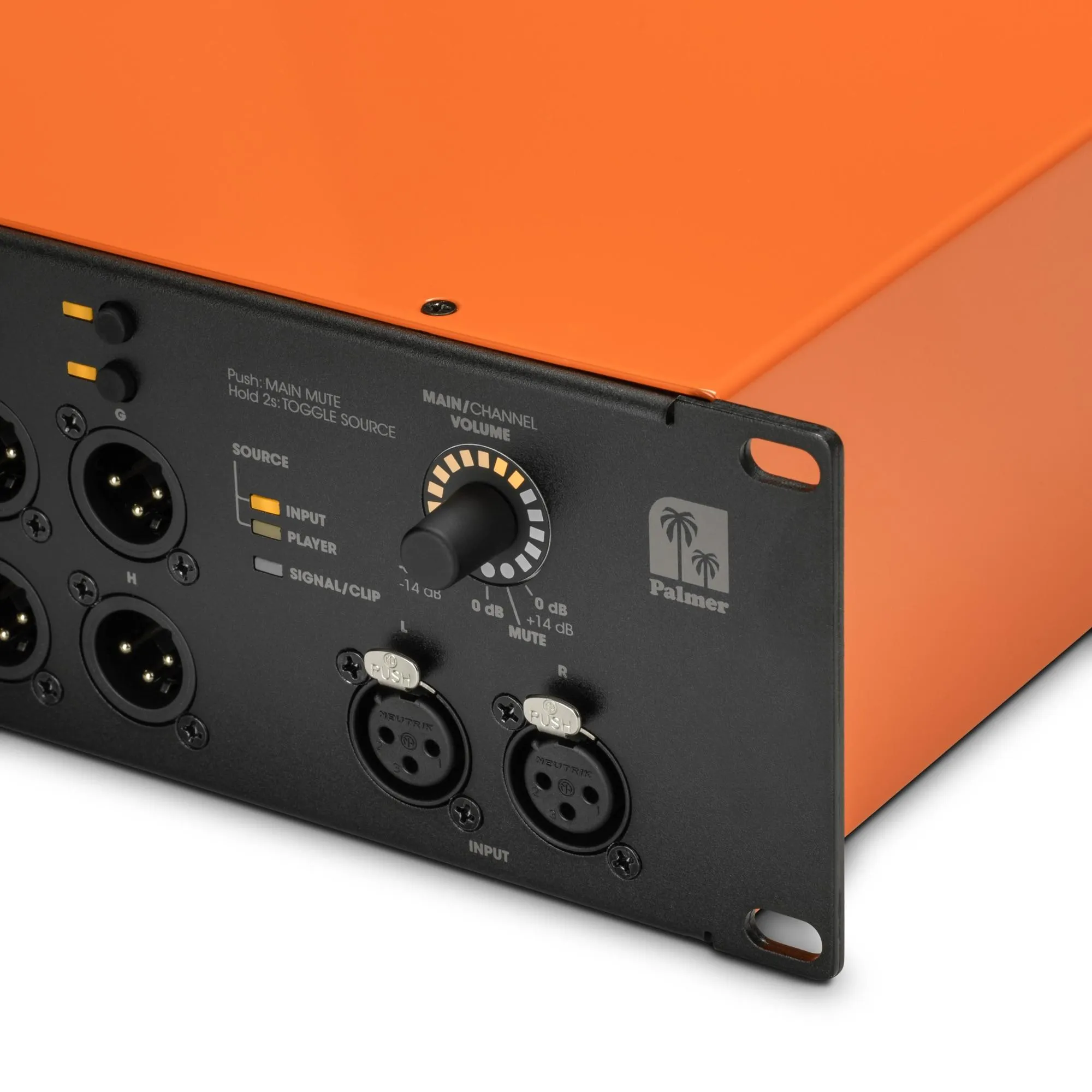

Display elements front side: LED ring for main/channel volume with 0dB and mute LED indicator, 2 x signal source LED (XLR / Player), Dual-color signal/clip LED
Front Panel connectores: 24 x male XLR socket, 2 x XLR 3 pin female
Rear panel controls: reset, Power On/Off, mains voltage selector

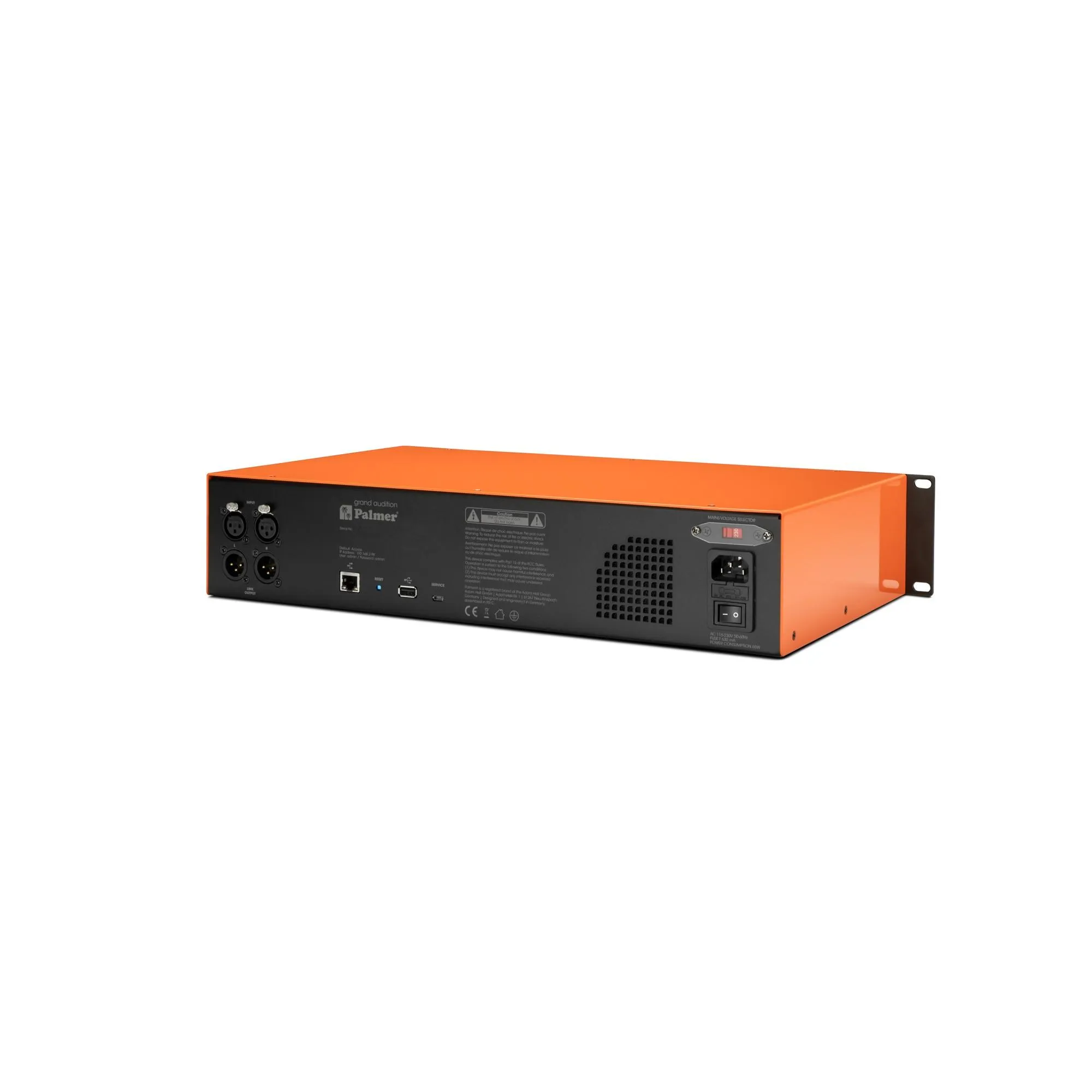

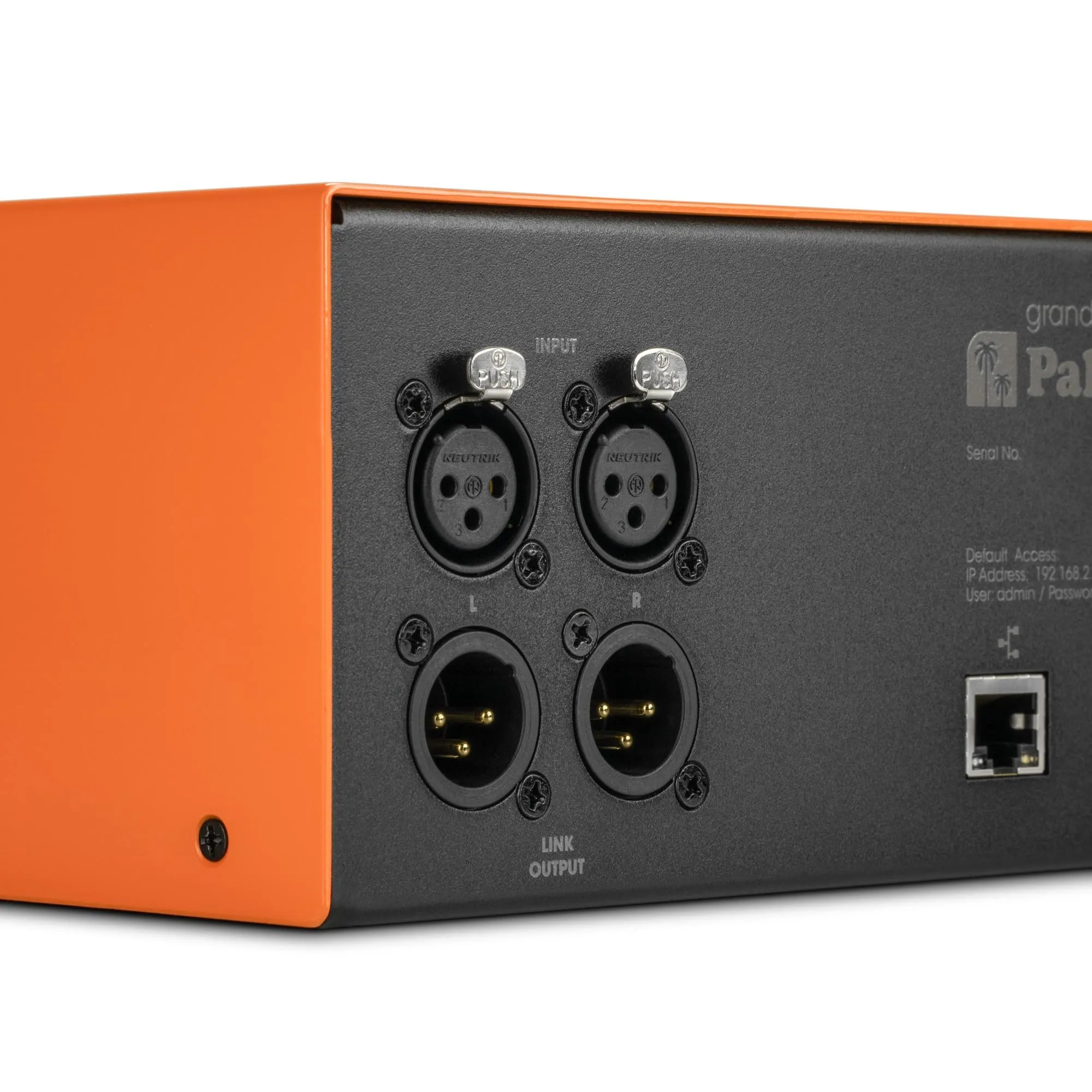

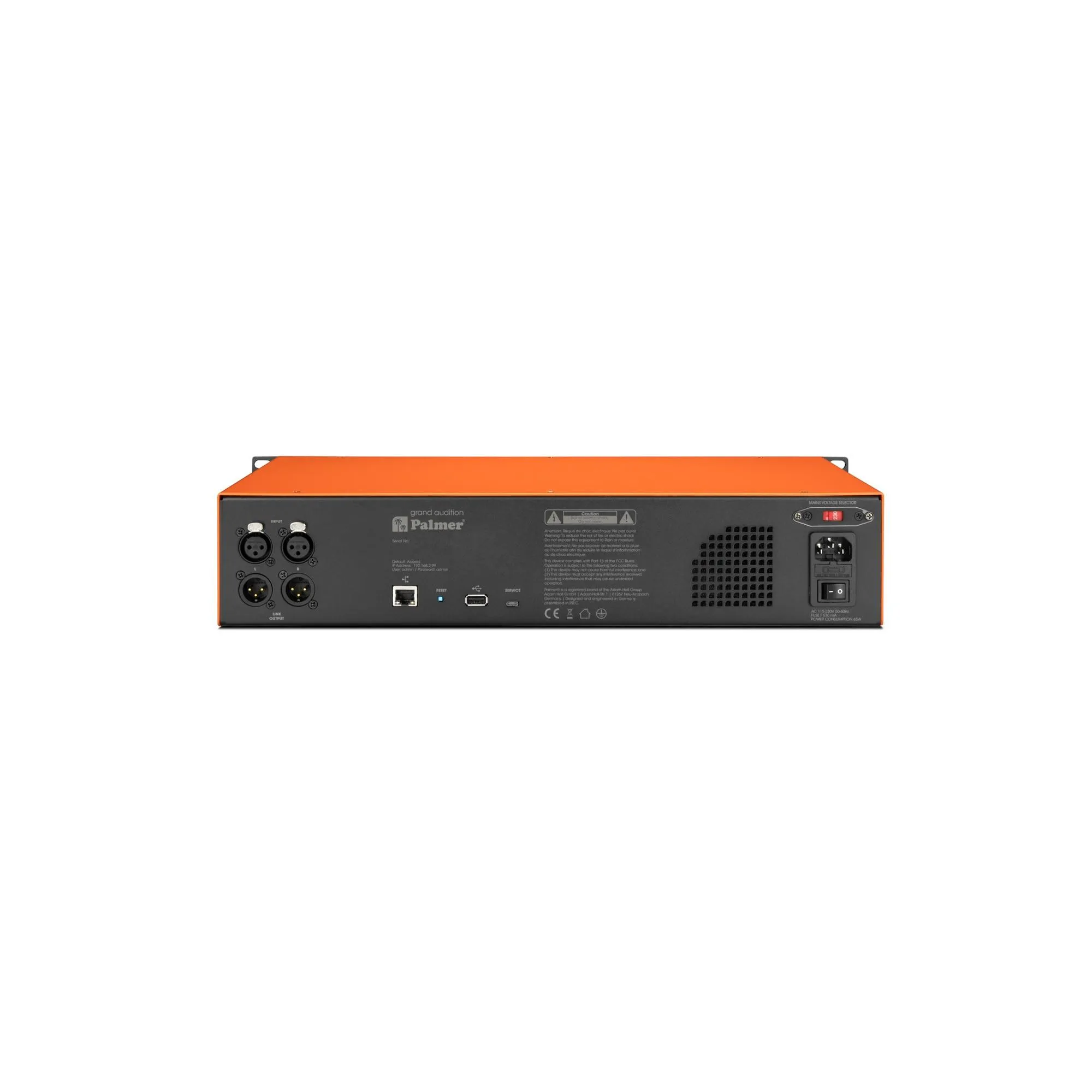

Connections rear side: RJ45 (Ethernet), 2 x XLR, Micro-USB for service purposes, USB stick, 2 x XLR 3 pin female, 3-pole IEC mains connection (mains socket)
Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
Fuse: T 630 mA 250V
Power consumption: 65 W
Ambient temperature (in operation): 0 - 40 °C
Installation Height: 19" / 2 U
Dimensions (W x H x D): 482,6 x 89,4 x 282,3 mm
Housing material: Metal
Cabinet surface: Powder-coated
Weight: 5,7 kg
